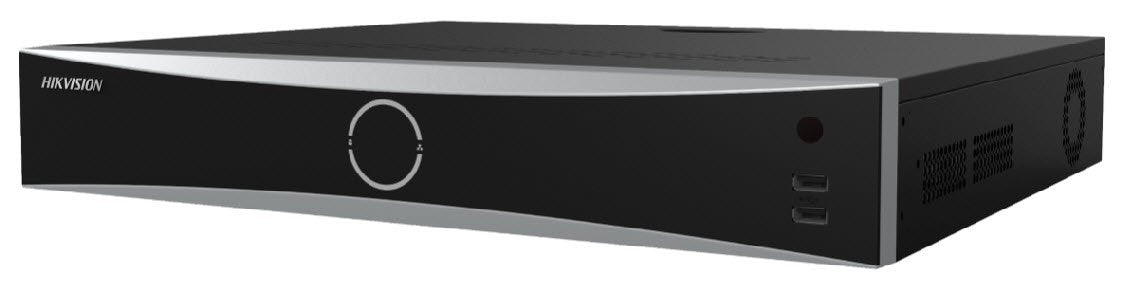

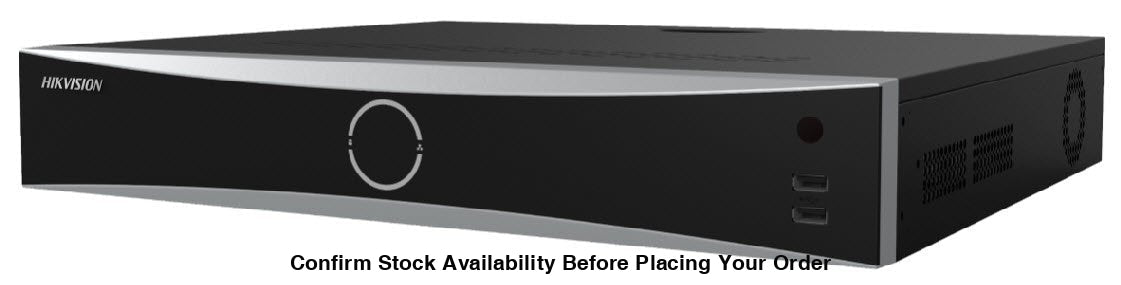

Hikvision 32-ch 1U AcuSense 4K NVR
Hikvision 32-ch 1U AcuSense 4K NVR
Regular price
R 14,428.00 ZAR
Regular price
Sale price
R 14,428.00 ZAR
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Master Card
Visa Card
Visa Electron
Maestro Card
Instant Eft
MobiCred
SKU:DS-7732NXI-I4/S_C
Hikvision 32-ch 1U AcuSense 4K NVR
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on deep learning algorithm
- Up to 4-ch perimeter protection
- Up to 4-ch facial recognition for video stream
- Up to 8-ch facial recognition for face picture
- Up to 32-ch IP camera inputs
- Up to 32-ch 1080p decoding capability
- Up to 8-ch IP speakers can be connected
-
- Intelligent Analytics
- AI by Device
- AI by Camera
- Engine
- Facial Recognition
- Facial Detection and Analytics Face picture comparison, human face capture, face picture search
- Face Attributes
- Face Picture LibraryUp to 16 face picture libraries, with up to 10,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 150 MB)
- Face Picture Comparison (Captured from Camera)4-ch face picture comparison alarm
- Facial Detection and Analytics Performance1-ch human face capture (HD network camera, up to 4 MP, H.264/H.265)
- Motion Detection 2.0
- By Device16-ch
- By Camera
- Perimeter Protection
-
By Device
Up to 4-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;
Up to 12 rules in total
- By Camera
- ANPR
- By Camera
- Vehicle Attributes
- Plate Attributes
- Video and Audio
-
IP Video Input
16-ch
Up to 12 MP resolution
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
- Incoming Bandwidth160 Mbps
- Outgoing Bandwidth256 Mbps
- HDMI 1 Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, HDMI1/VGA simultaneous output
- HDMI 2 Output1920 × 1080/60Hz,HDMI2/VGA independent output
-
VGA Output
1-ch, 1920 × 1080/60Hz,
HDMI1/VGA simultaneous output
- Video Output Mode
- CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Decoding
- Decoding FormatH.265+/H.265/H.264+/H.264/MPEG4
-
Recording Resolution
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
*: 32 MP and 24 MP is only available for channel 1 when ultra HD resolution mode is enabled.
- Synchronous Playback16-ch
- Live View Window Division1/2/4/6/8/9/16
- Aux Port Window Division1/2/4/6/8/9/16
- Decoding Capability16-ch @ 1080p (30 fps)
- Dual-Stream Recording Support
- Stream Type Video, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/MP2L2
- Network
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Remote Connection128
- Network Protoco lTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
- API
- Compatible Browser
- Camera Access Protocol ONVIF(Version 2.5), RTSP
- Auxiliary Interface
- Serial InterfaceRS-485 (half-duplex), RS-232, Keyboard
- SATA4 SATA interfaces supporting hot-plug
- CapacityUp to 10 TB capacity for each disk
- eSATA1 eSATA interface
- Alarm In/Out16/4
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
- Ctrl 12V
- DC 12V
- General
- GUI Language
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 30 W (without HDD)
- Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity10% to 90%
- Chassis19-inch rack-mounted 1.5U chassis
- Dimension (W × D × H)445 × 400 ×75 mm ( 17.5"× 15.7" × 3.0")
- Weight≤ 5.6 kg (12.3 lb)
- Certification
- Obtained Certification
- CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
