DS-1LN6-UU

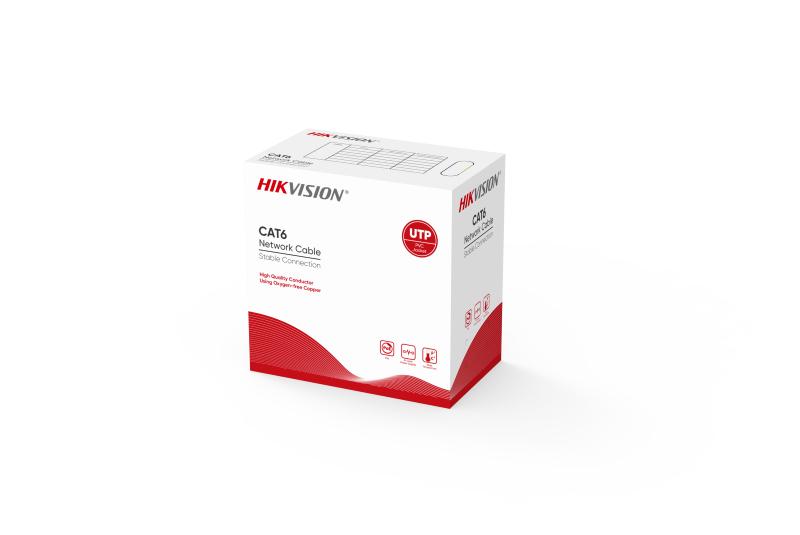

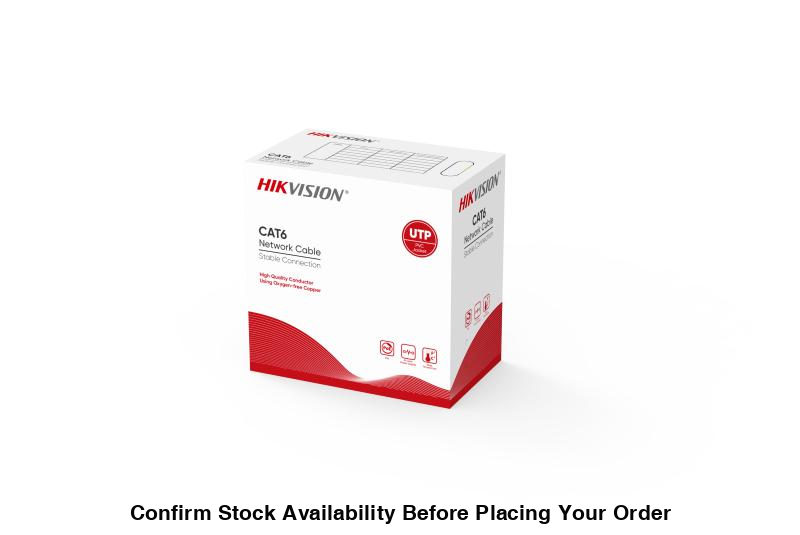

Hikvision 305 m CAT6 UTP Network Cable (Solid Copper, 0.565 mm, CM)

  • Full diameter 305 m CAT6 network cable
  • Core diameter: 0.565mm
  • Excellent transmission performance using solid copper
  • Quality verified by Fluke test
  • Guaranteed long PoE transmission distance
  • Great PVC flame resistance.
    • General
    • Core Color1 White- Blue /Blue 2 White-Orange /Orange,3 White-Green /Green 4 White- Brown /Brown,
    • Packing Wooden Tray & Carton
    • Carton Dimension Per request
    • Packing length305±1.5m
    • Rip-cord Yes
    • Drain wire No
    • Sheath Physical Properties Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period (℃×hrs) 100℃×24h×10d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.， No visible cracks,
    • Electrical Characteristics (20℃)1.0-250.0MHz Impedance ((Ω) 100±15,1.0-250.0MHz Delay Skew (ns/100m) ≤45,DC Resistance (Ω/100m) max 9.38,DC Conductor Resistance Unbalance (%) max 5.0,
    • Conductor
    • Material Solid-Bare Copper, Content 99.95%,
    • Nom.O.D.(mm)0.565±0.005
    • Insulation
    • Material HDPE
    • Diameter1.02±0.05mm
    • Sheath
    • Thickness0.55±0.05 mm
    • External O.D.6.2±0.4 mm
    • Surface Clean, Frap, Satiation
    • Material PVC(complies RoHS),CM
    • Color Orange RAL2003
    • Surface Printing
    • Letter height3.0±0.3mm
    • Color Black
    • Print error & Space≤±0.5%，1m
