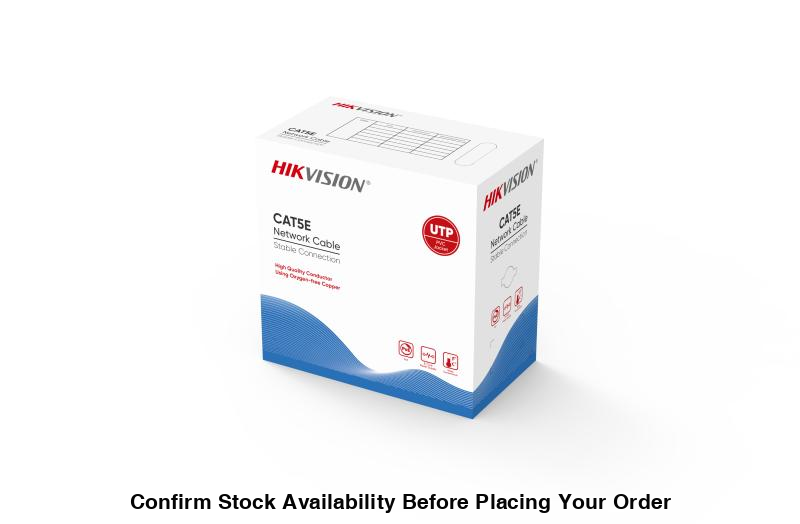

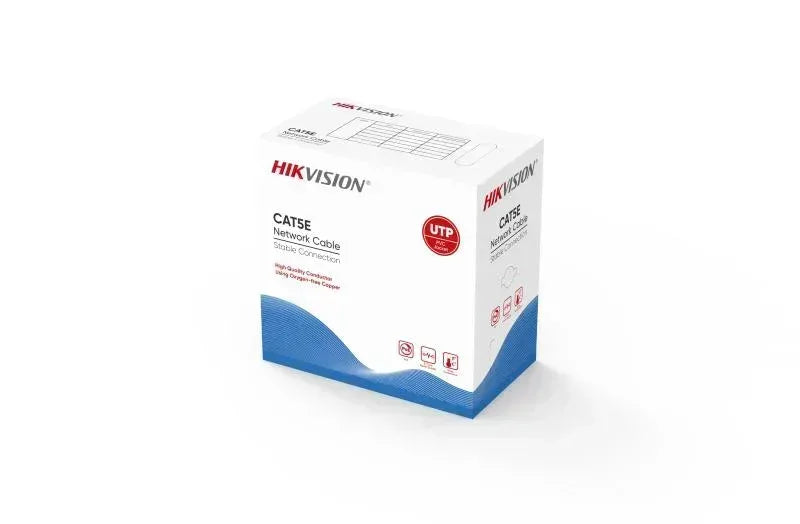

Hikvision 305 m CAT5E UTP Network Cable (Solid Copper, 0.45 mm, CMX)
Hikvision 305 m CAT5E UTP Network Cable (Solid Copper, 0.45 mm, CMX)
Regular price
R 2,919.00 ZAR
Regular price
Sale price
R 2,919.00 ZAR
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Master Card
Visa Card
Visa Electron
Maestro Card
Instant Eft
MobiCred
SKU:DS-1LN5E-E/E
Hikvision 305 m CAT5E UTP Network Cable (Solid Copper, 0.45 mm, CMX)
- Full diameter 305 m CAT5E network cable
- Excellent transmission performance using oxygen-free copper
- Quality verified by Fluke test
- Guaranteed long PoE transmission distance
- Great PVC flame resistance
-
- General
- Core Color1 White- Blue /Blue 2 White-Orange /Orange,3 White- Green /Green 4 White- Brown /Brown,
- Packing Wooden Tray & Carton
- Carton Dimension Per request
- Packing length305±1.5m/80±0.5m
- Rip-cord Yes
- Drain wire No
- Sheath Physical Properties Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs) 100℃×24h×7d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.， No visible cracks,
- Electrical Characteristics (20℃)1.0-100.0MHz Impedance(Ω) 100±15,1.0-100.0MHz Delay Shew (ns/100m) ≤45,DC Resistance Ω/100m) max 14.8,DC Conductor Resistance Unbalance(%) max 5.0,
- Conductor
- Material Solid-Bare Copper, Content 99.95%,
- Nom.O.D.(mm)0.450±0.005
- Insulation
- Material HDPE
- Diameter0.82±0.04mm
- Sheath
- Thickness0.50±0.05 mm
- External O.D.4.7±0.4 mm
- Surface Clean,Frap, Satiation
- Material PVC(complies RoHS),CMX
- Color Grey ZLC1003
- Surface Printing
- Letter height3.0±0.3mm
- Color Black
- Print error & Space≤±0.5%，1m
