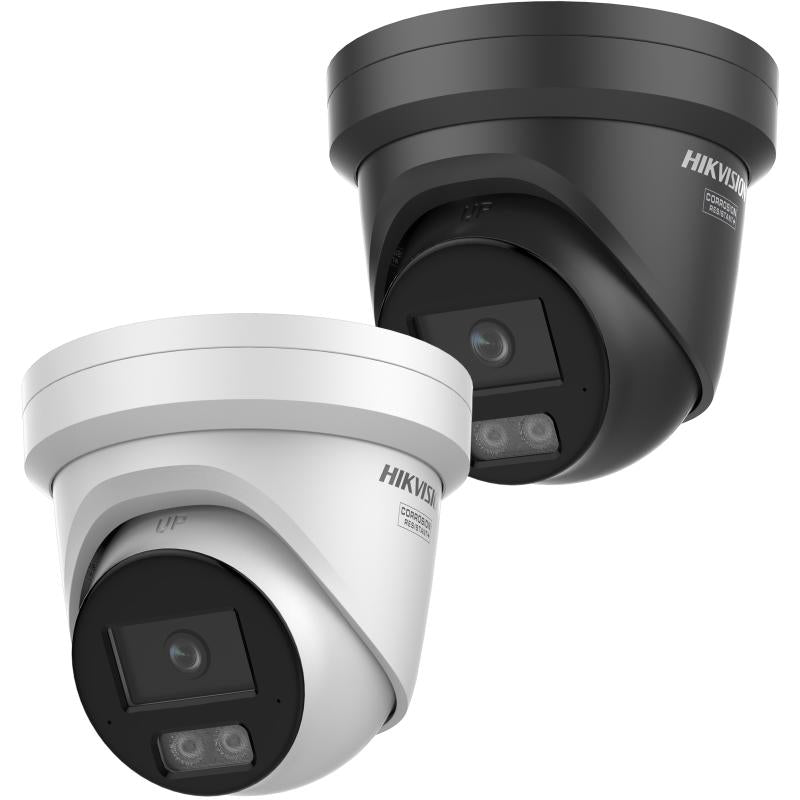

Hikvision 16MP AcuSense turret, 2.8mm lens, 30m IR, 130dB WDR, array microphone, 12VDC, POE

Hikvision 16MP AcuSense turret, 2.8mm lens, 30m IR, 130dB WDR, array microphone, 12VDC, POE

R 7,593.00 ZAR
R 7,593.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

DS-2CD23166G3-I2UY 2.8MM
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Hikvision 16MP AcuSense turret, 2.8mm lens, 30m IR, 130dB WDR, array microphone, 12VDC, POE

Hikvision DS-2CD23166G3-I2UY 2.8MM: Hikvision 16MP AcuSense turret, 2.8mm lens, 30m IR, 130dB WDR, array microphone, 12VDC, POE.

Key Features

  • UHD: Ultra High Definition delivers lifelike immersion
  • Excellent low-light performance via Powered by DarkFighter
  • Person and vehicle classification based on deep learning
  • Crystal-clear audio with Built-in Arrayed Dual-Mic (-2U models）
  • Clear imaging against strong back light due to 130 dB true WDR technology
  • Water and dust resistant (IP67)
  • Anti-corrosion design, providing reliability and longevity compared to standard (NEMA 4X)
  • Tamper-free & eco-friendly packaging

Specifications

Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 4608 × 3456
Min. Illumination Color: 0.0008 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV 2.8 mm, horizontal FOV 94.5°, vertical FOV 69.9°, diagonal FOV 123.2° 4 mm, horizontal FOV 73.3°, vertical FOV 54.7°, diagonal FOV 94°
Lens Mount M16
Iris Type Fixed
Aperture F1.6
Depth of Field 2.8 mm: 2.9 m to ∞ 4 mm: 3.5 m to ∞
DORI 2.8 mm: D: 117 m, O: 46 m, R: 23 m, I:11 m 4 mm: D: 148 m, O: 59 m, R: 29 m, I: 14 m
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 12.5 fps (4608 × 3456) 20 fps (4608 × 2592) 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (4608 × 3456) 20 fps (4608 × 2592) 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream
Audio Type -2U: Mono sound
Audio Bit Rate -2U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Compression -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Sampling Rate -2U: 8 kHz/16 kHz/32 kHz/48 kHz
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client iVMS-4200,Hik-Connect,Hik-Central
Web Browser Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Local service: Chrome 80+, Firefox 80+, Edge 89+
Image Parameters Switch Yes
Image Settings Saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser

Product Details

  • Model: DS-2CD23166G3-I2UY 2.8MM
  • Brand: Hikvision
  • Hikvision model reference: DS-2CD23166G3-I(2U)Y NEW
