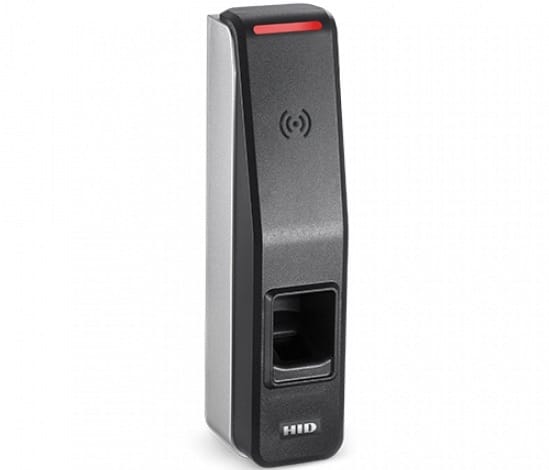

HID Signo Biometric Reader/Controller

HID Signo Biometric Reader/Controller

R 19,895.00 ZAR
R 19,895.00 ZAR
Sale Sold out
Taxes included. Shipping calculated at checkout.

25BNKS-10-000000-IMPRO
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

HID Signo Biometric Reader/Controller

Signo Biometric Reader/Controller. Multi-spectral biometric sensor. Mullion Mount. Wide variety of contactless high frequency credentials, plus HID Mobile Access® Mobile IDs via NFC and/or Bluetooth Smart. For use with Access Portal only.

Key Features

  • Highly versatile – Unmatched flexibility to deploy multiple authentication modes, including biometric fingerprint and contactless physical and mobile credentials, with a single reader platform.
  • Unparalleled performance – Ultimate biometric fingerprint match reliability with patented multispectral imaging sensor that reads the sub-dermal layer of the skin for better accuracy.
  • Connected to the future – Easily configure and manage in the field with HID Biometric Manager or API integration, including support for software upgrades over the network.

Specifications

Specifications
Model Number 25B
13.56 MHz Credential Compatibility Secure Identity Object™ (SIO) on iCLASS® Seos®, iCLASS SE® / SR iCLASS® Access Control Application (standard iCLASS cards) ISO 14443A (MIFARE) CSN, ISO 14443B CSN Secure Identity Object (SIO) on NFC-enabled devices using Host-Based Card Emulation, Template on Card with Seos
2.4 GHz Credential Compatibility Secure Identity Object (SIO) on Mobile IDs (Bluetooth Smart)
Typical Contactless Read Range – Single Technology ID-1 Cards iCLASS® Seos™ 1.0″ (3 cm) iCLASS® 2.0″ (5 cm) Mifare® Classic, Mifare Plus 3.0″ (8 cm) Mifare DESFire® (EV1, EV2) 1.5″ (4 cm)
Typical Mobile ID Read Range using Bluetooth & Seos Twist and Go 6.6 ft (2 m) Tap 5.9″ (15 cm)
Mounting Mullion Size; mount on door mullion or any flat surface
Colour Black Body; Silver Mounting Bracket
Dimensions (width x length x depth) 1.97″ x 8.03″ x 2.17″ (5.0 cm x 20.4 cm x 5.5 cm)
Product Weight 13.04 oz (0.38 kg)
Operating Voltage Range 12 VDC (9 – 14 VDC)
Current Draw Normal Standby 800 mA Maximum Average 1.5 A @ 12 VDC Peak 2 A @ 12 VDC
Supervised Inputs Power (MAX) 0.025 W (5 mA sink, 5 V nominal) 0 to +5 VDC
Operating Temperature -4 °F to 153 °F (-20 °C to 66 °C)
Operating Humidity 0% to 95% relative humidity non-condensing
Storage Temperature -40 °F to 194 °F (-40 °C to 90 °C)
Fingerprint Biometric Sensor Type Optical (Multispectral Imaging)
Transaction Event Logs 1,000,000
Max number of cardholders 250,000
Max number of users 5,000 (1 : N Searching Identification)
Biometric Functions Template output format: 1 : 1 ANSI 378, 1 : N Proprietary (ANSI 378+ format) Verify (1 : 1) match score input: ANSI 378 template Identify (1 : N) search score input: Proprietary template (ANSI 378+ format) Latent and liveness detection: Yes (multispectral imaging)
Language Support English, French, German, Spanish (International), Russian, Portuguese (Brazilian), Italian, Chinese (Simplified), Japanese, Korean, Arabic
Crypto Processor Hardware Common Criteria Rating EAL 4+
Patents www.hidglobal.com/patents
Housing Material UL94 Polycarbonate
Warranty Warranted against defects in materials and workmanship for 18 months

Product Details

  • Model: 25BNKS-10-000000-IMPRO
  • Brand: HID
