Gigabyte B860M LGA1851 ATX Motherboard - Support Intel Core Ultra Processors, Hybrid 4+1+2 Phases VRM Solution, Infinite Memory Performance, AI Perfdrive, PCIe x 16 Slot with Quick Release Design, Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW, 2 x PCIe 4.0 x 4 M.2 Connectors, GbE LAN Fast Networking, DisplayPort, HDMI Externded Connectivity, Retail Box, 2 Years Warranty.
Product Oveview

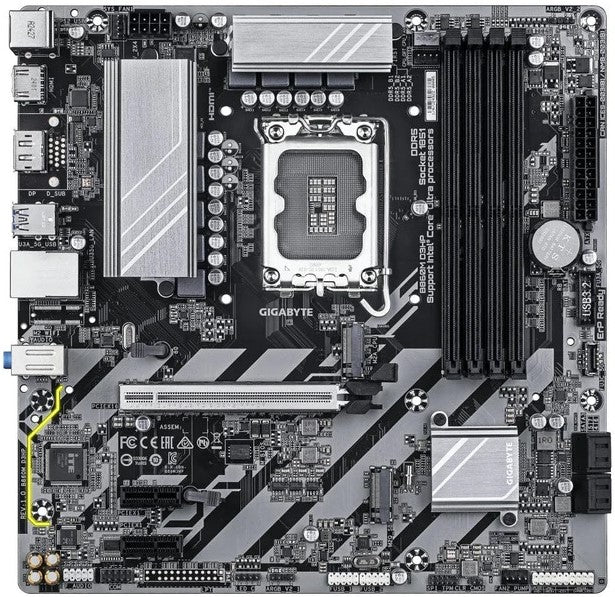

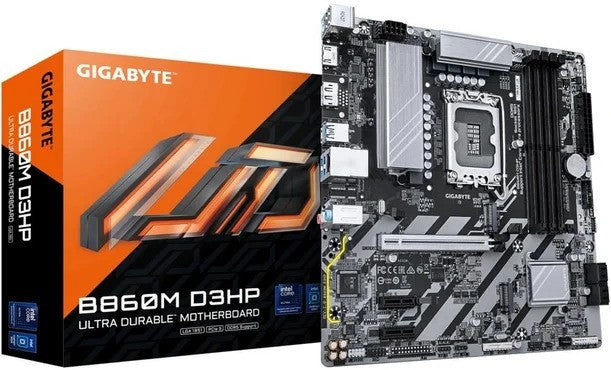

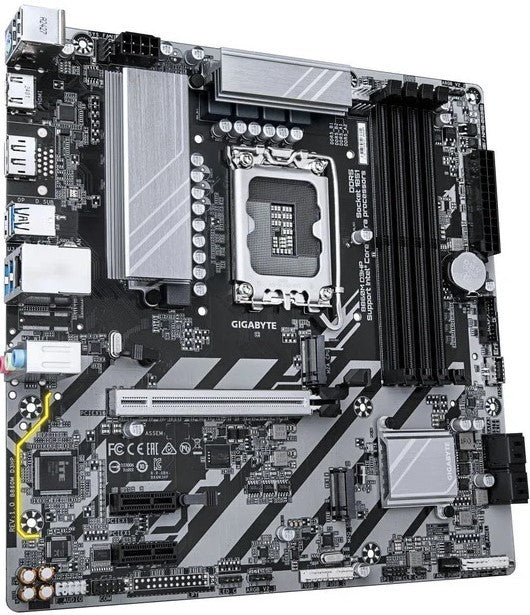

The Gigabyte B860 D3HP is a compact Micro ATX motherboard for Intel Core Ultra processors using the LGA1851 socket, featuring the Intel B860 chipset and support for up to 256GB of DDR5 memory. It provides PCIe 5.0 x16 graphics support, two PCIe 4.0 M.2 slots, four SATA 6Gb/s connectors, Realtek Gigabit LAN, and high-definition audio for versatile storage and connectivity. With HDMI and DisplayPort outputs, USB 3.2 Gen 1, RGB headers, fan and pump support, and Windows 10/11 compatibility, it is well suited to modern home, office, and gaming PCs.
Specifications
•Product Code: GA-B860M-D3HP
•Description: Gigabyte B860 D3HP LGA1851 Micro ATX Motherboard
•Form Factor: Micro ATX Form Factor; 24.4cm x 24.4cm
•CPU: LGA1851 Socket Support For Intel Core Ultra Processor, L3 Cache Varies with CPU
•Chipset: Intel B860 Express Chipset
•Memory: 4 X DDR5 DIMM Socket Supporting Up to 256GB (64GB Single DIMM Capacity) of System Memory Dual Channel Memory Architecture
•Onboard Graphics: Integrated Graphics Processor-Intel HD Graphics Support
•Audio: Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1 Channel
•LAN: Realtek GbE LAN Chip (1 Gbps/100Mbps/10Mbps)
Expansion Slots
•CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
•Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface
•CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)
Chipset:
•1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
•4 x SATA 6Gb/s connectors, RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
•1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
•5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
•3 x USB 2.0/1.1 ports on the back panel
•Chipset+USB 2.0 Hub:
•4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
•1 x 24-pin ATX main power connector
•1 x 8-pin ATX 12V power connector
•1 x CPU fan header
•1 x CPU fan/water cooling pump header
•1 x system fan header
•1 x system fan/water cooling pump header
•2 x addressable RGB Gen2 LED strip headers
•1 x RGB LED strip header
•2 x M.2 Socket 3 connectors
•4 x SATA 6Gb/s connectors
•1 x front panel header
•1 x front panel audio header
•1 x USB Type-C® header, with USB 3.2 Gen 1 support
•1 x USB 3.2 Gen 1 header
•2 x USB 2.0/1.1 headers
•1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
•1 x serial port header
•1 x Clear CMOS jumper

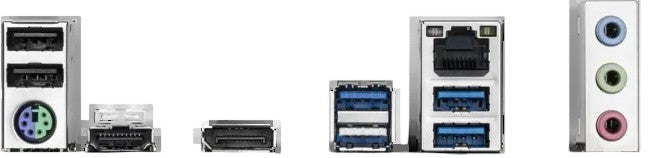

Back Panel Connectors
•3 x USB 2.0/1.1 ports
•1 x PS/2 keyboard/mouse port
•1 x DisplayPort*
•1 x HDMI port*
•3 x USB 3.2 Gen 1 ports
•1 x RJ-45 port
•3 x audio jacks
•I/O Controller: iTE I/O Controller Chip
BIOS
•1 x 256 Mbit flash
•Use of licensed AMI UEFI BIOS
•PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Bundled Software
•Norton® Internet Security (OEM version)
•LAN bandwidth management software
Operating System
•Support for Windows 11 64-bit
•Support for Windows 10 64-bit
