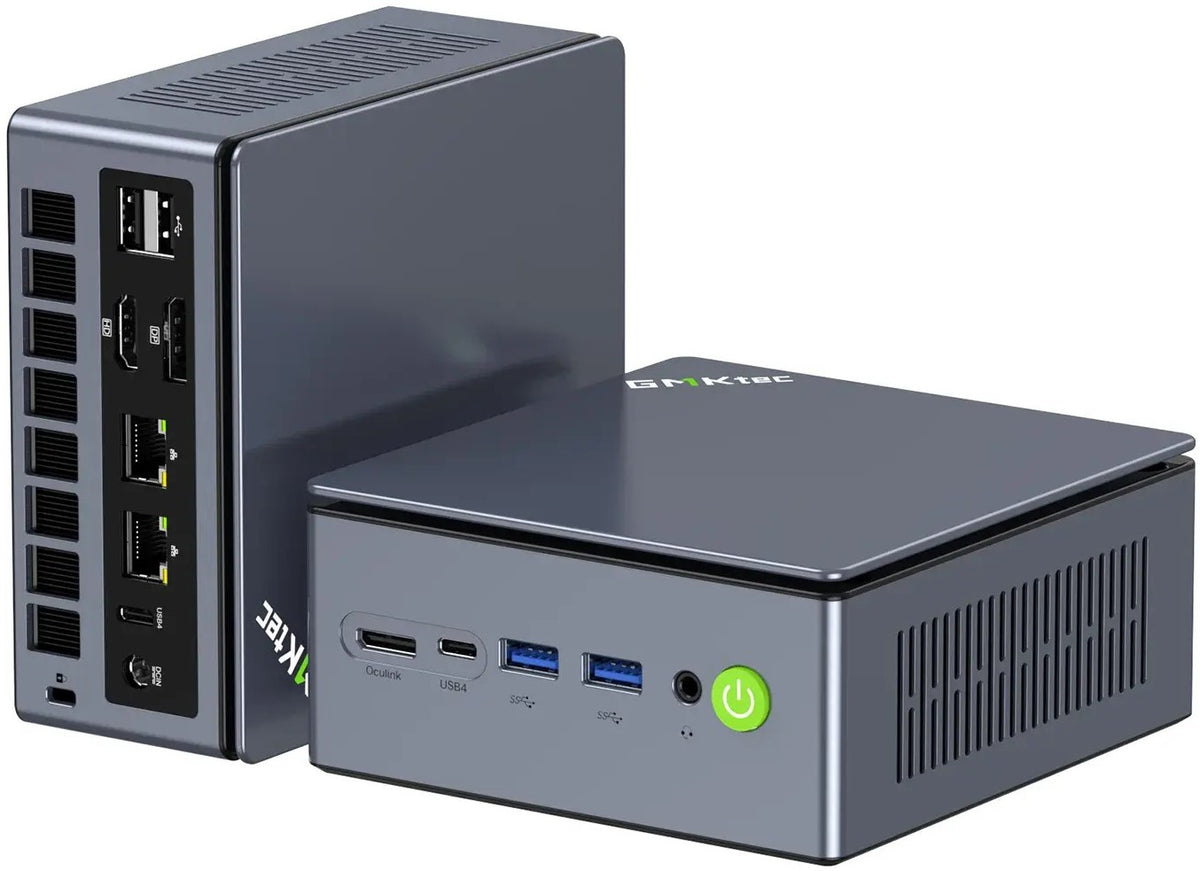

GMKtec NucBox M7 Ultra AMD Ryzen 7 Professional Mini Desktop

GMKtec NucBox M7 Ultra Mini PC - AMD Ryzen 7 Pro 6850U Processor, 8 Cores, 16 Threads, TSMC 6nm FinFET Process, 2.7GHz Base Frequency, Up to 4.7GHz Max Boost, 16GB DDR5 4800MHz 2 x SO-DIMM Memory, 1TB PCIe 3.0 M.2 2280 SSD, Quad Display Output Via HDMI Plus DisplayPort Plus 2 x USB4, Support Up to 8K Resolution, WiFi 6E, Bluetooth 5.2 Connectivity, Windows 11 Pro, Retail Box, 1 Year Warranty.

Product Overview

The GMKtec NucBox M7 Ultra is a powerful Windows 11 Pro mini PC featuring an 8-core, 16-thread AMD Ryzen 7 PRO 6850U processor and integrated Radeon 680M graphics. It supports up to 64GB of DDR5-4800 memory, 1TB dual PCIe 4.0 NVMe SSDs with up to 16TB total capacity, and quad-display output at resolutions up to 8K. With Wi‑Fi 6E, dual 2.5G Ethernet, USB4 connectivity, and an OCulink PCIe Gen4 ×4 port, it offers flexible performance for demanding productivity and expansion needs.

Specifications

•Product Code: G-M7ULTRA
•Description: GMKtec NucBox M7 Ultra Miini PC
•CPU Model: AMD Ryzen™ 7 PRO 6850U
Processor
•AMD Ryzen™ PRO 6000 Series Processor, 8 Cores, 16 Threads
•TSMC 6nm FinFET Process
•Base Frequency 2.7GHz, Max Boost up to 4.7GHz
•512KB L1 Cache / 4MB L2 Cache / 16MB L3 Cache
•Zen 3+ Architecture
•GPU: AMD Radeon™ 680M Graphics, 12 Cores, up to 2200MHz
•Memory: 16GB DDR5-4800 2 x SO-DIMM Slots, Supports Up to 64GB
•Storage: 1TB PCIe 3.0 M.2 2280 SSD
Storage Expansion
•2 × M.2 2280 PCIe 4.0 ×4 SSD Slots
•Supports up to 8TB per slot (Max 16TB)
Graphics Output
•Quad Display Output via HDMI + DisplayPort + 2 × USB4
•Supports up to 8K Resolution
Network
•Wi-Fi 6E (RZ616, up to 2.4Gbps)
•Bluetooth 5.2
•Dual 2.5G Ethernet LAN (Intel I226-V)
Power

•Built-in Coin Cell Battery
•DC Power Adapter 19V / 6.32A

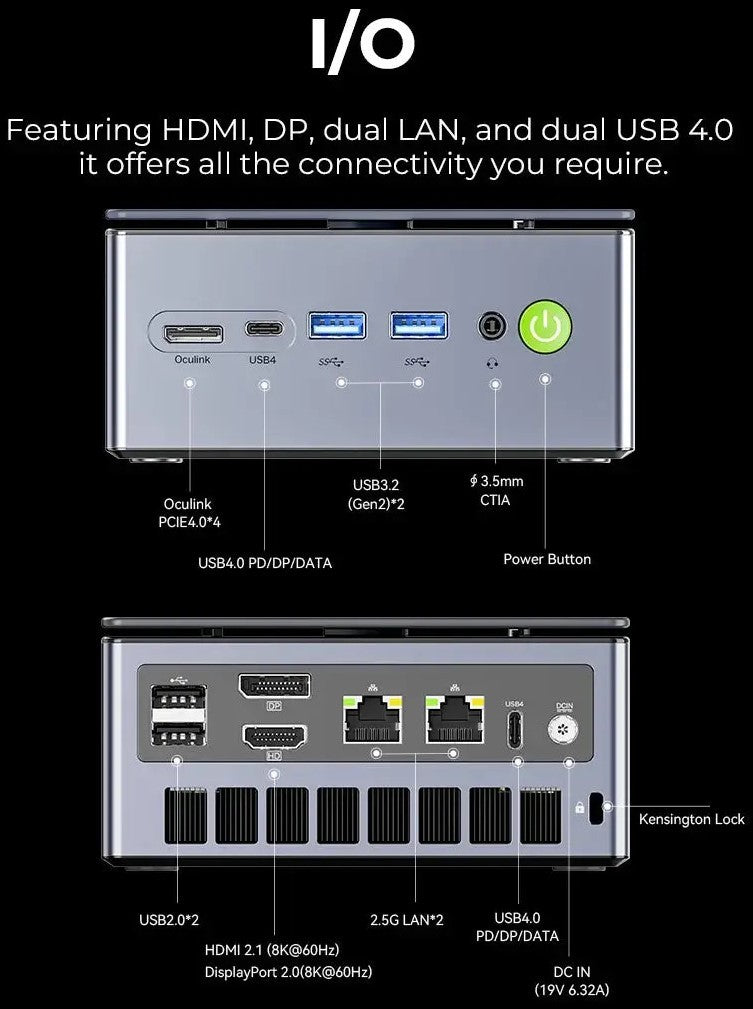

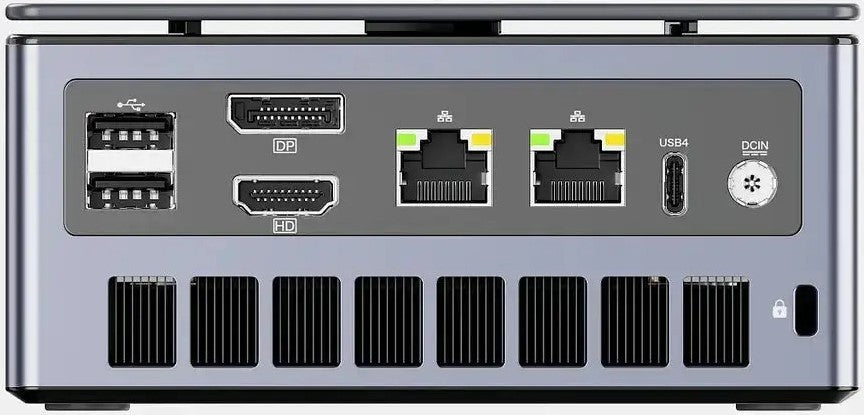

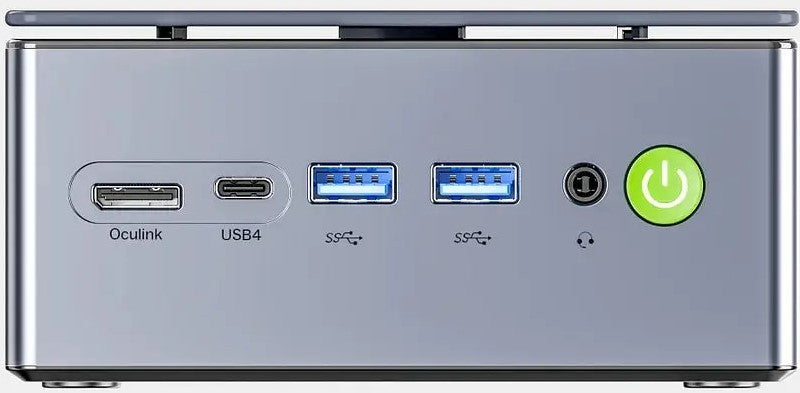

External Ports
•USB-A: 2 × USB 3.2 Gen2 + 2 × USB 2.0
•USB4: 2 × USB4 Full-Function Ports (40Gbps / PD / DisplayPort)
•HDMI: 1 × HDMI 2.1 (up to 8K@60Hz)
•DisplayPort: 1 × DisplayPort 2.0 (up to 8K@60Hz)
•OCulink: 1 × OCulink PCIe Gen4 ×4
•Audio: 1 × 3.5mm CTIA Audio Jack
•LAN: 2 × RJ45 2.5G Ethernet
•Power: 1 × DC IN (5.5 / 2.5mm)

OCulink Notice
•The OCulink port does not support hot-plugging.
•Please connect or disconnect the cable only when the device is powered off.
•Operating System: Windows 11 Pro
•Chassis Dimensions: 132 × 125 × 58 mm
•Weight: 604g
•Color: Metalic Gray
•Working Temperature: 0°C – 40°C
