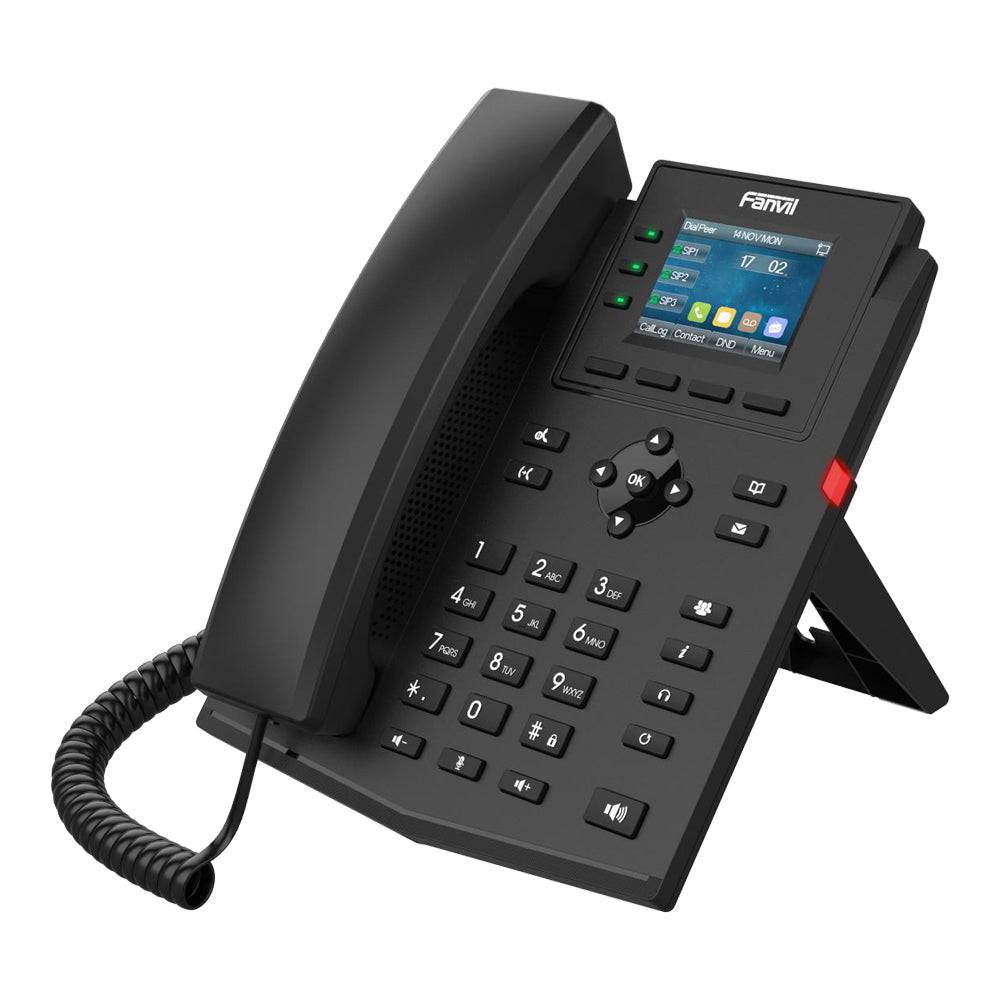

FANVIL X303P ENTERPRISE IP PHONE POE

FEATURES • 2.4" Colour Display - 320×240 screen for clear and intuitive navigation • 4× SIP Lines - Flexible call handling for multi-line environments • HD Voice with Opus Codec - Delivers superior audio clarity and quality • 6-Way Audio Conferencing - Enables efficient team collaboration • PoE Support - Simplifies installation with power and data over a single cable • Dual 10/100Mbps Ports - Includes PC Passthrough for streamlined connectivity • EHS Headset Support - Compatible with wireless headsets for hands-free use • Programmable DSS Keys - Quick access to frequently used functions • Cost-Effective Design - Ideal for entry-level business deployments SPECIFICATIONS GENERIC • SIP Lines: 4× SIP Lines • Display: 2.4" Colour Display (320×240) • HD Voice: Supported • PoE: Supported • Operating Modes: Handset, Hands-Free and Headset • Operating Temperature: 0~45°C PHONE FUNCTIONS • Phonebook: Local and Remote (XML, LDAP, up to 1,000 Entries) • Call Logs: Incoming, Outgoing and Missed Calls • DSS Keys: Programmable DSS and Soft Keys • VMWI: Voice Message Waiting Indication • XML Browser: Supported • Remote Control: Action URL and Active URI • Time Sync: Network Time Synchronisation • UI: Customisable Interface and Ringtones CALL FUNCTIONS • Call Functions: Call, Answer, Reject, Hold, Resume, Waiting • Call Handling: Forward, Transfer (Attended and Unattended), Parking and Pickup • Conferencing: 6-Way Audio Conferencing • Dialling: Speed Dial and Redial • DND: Do Not Disturb Supported • Intercom: Intercom and Multicast • Caller ID: Supported with Anonymous Call Handling AUDIO • Audio: HD Audio with Full-Duplex Speakerphone • Audio Codecs: G.722, Opus, G.711, G.729, G.726, iLBC • Audio Features: AEC, Noise Reduction, AGC, VAD, PLC • Jitter Buffer: Dynamic Adaptive • DTMF: RFC2833 and SIP INFO NETWORK • Network Ports: Dual 10/100 Mbps Ethernet with PC Passthrough • IP Support: IPv4 and IPv6 • IP Mode: Static IP, DHCP, PPPoE • VLAN: Supported • VPN: L2TP and OpenVPN • QoS: QoS and 802.1x Access Control • Redundancy: DNS-SRV and Redundant Server Support PROTOCOLS • Protocols: SIP v1/v2 (UDP, TCP, TLS), RTP, RTCP, SRTP • Network Services: STUN, DHCP, SNTP • Management Protocols: HTTP, HTTPS, FTP, TFTP, TR-069 • Security: 802.1p, 802.1Q, 802.1x, AES128, AES256 DEPLOYMENT AND MANAGEMENT • Provisioning: Auto-Provisioning via FTP, TFTP, HTTP, HTTPS, TR-069, DHCP • Management: Web Interface, Configuration Import and Export • Maintenance: Firmware Upgrade, Syslog and Diagnostics • Tools: Web-Based Packet Capture, Phonebook Import and Export PHYSICAL • Display: 2.4" Colour LCD • Keypad: 36-Key with DSS and Line Keys (LED Indicators) • Ports: 2× RJ45 (Network and PC), RJ9 (Handset and Headset) • Power: PoE or DC Adapter (Optional Extra) • Power Consumption: up to ~2.09W (PoE)
