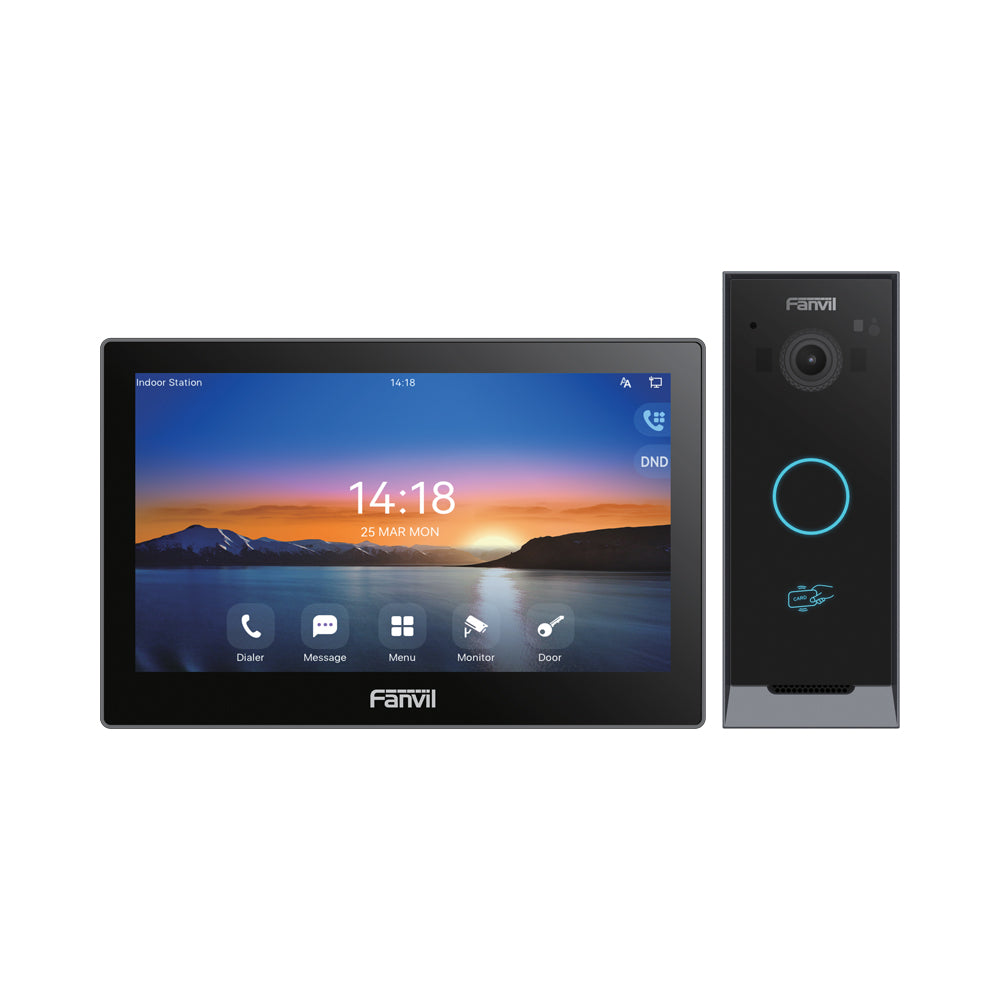

FANVIL VIK-01 VIDEO INTERCOM KIT I60 AND I504W

FEATURES • Plug and play, quickly deployment • Flexible door access methods • Monitor door phone camera footage on both mobile and indoor station • Remote door opening anytime, anywhere • Supports one-touch calling • CCTV integration FANVIL I504W SPECIFICATIONS • Screen: 7" 1024×600 Colour Capacitive Touch Screen • Body: ABS • Speaker: 2W • Wi-Fi: 2.4GHz/5.0GHz • Interface: 8× Alarm Input, 1× Short -Circuit Output, 1× Doorbell input, 1× RS485 (Reserved) • Network: 10/100Mbps Adaptive • Power Supply: DC12V 1A PoE: 3.65~6.64W • Working Temperature: -10~50°C • Storage Temperature: -40~80°C • Working Humidity: 10~90% • Size (L × W × H): 177.38 × 113.99 × 22.5mm • Installation: Wall-Mounted FUNCTIONAL CAPABILITIES • Supported Protocols: SIP 2.0 over UDP/TCP/TLS • Audio: Narrowband Codec: G.711A/U, G.723.1, G.726-16 / 24 / 32 /40, G.729AB, iLBC Broadband Codec: G.722, OPUS Full-Duplex Hands-Free Calling, Supports Acoustic Echo Cancellation (AEC) • Video: Hardware Decoding: H.264, H.265 (Optional) Video Call Resolutions: QVGA / CIF / VGA / 4CIF / 720p / 1080p • DTMF: In-Band Out-of-Band DTMF (RFC2833) SIP Info • Do Not Disturb (DND): Supported and the Time Can Be User-Defined • Supports: Viewing Video from Third-Party IP Cameras Customising Incoming Call Ringtones Remote Door Unlocking Sending/Receiving Messages FANVIL I60 SPECIFICATIONS • Keyboard: 1× Speed-Dial Button • Body: ABS and PC • Colours: Panel: Black Housing: Gunmetal • Sensor: 1/2.9", CMOS • Camera: 2MP, Supports Infrared • Viewing Angle: 140° (FOV), 100° (Horizontal), 57° (Vertical) • Output Video: H.264 (Baseline, Main Profile) • Light Sensitivity: 0.1 Lux • Card Storage: 1,0000 • Power Consumption: PoE: 1.63~6.93W Adapter: 1.51~6.16W • Power Supply: DC12V 1A PoE 802.3af Class 3 • Working Temperature: -40~70°C • Storage Temperature: -40~70°C • Dimensions: 50 × 130 × 30mm • IP Level: IP65 • Installation: Wall-Mounted Rain Cover FUNCTIONAL CAPABILITIES • Supported: SIP 2.0 over UDP/TCP/TLS • Lock Opening: IC Card By DTMF Code Remote Door Opening BLE • Interface: Wiegand Input / Output Short-Circuit Input / Output • Supported Wiegand: 26, 34bit • Supported ONVIF: Profile S • Supported Standards: IC Card DTMF Indoor Switch BLE Cards 13.56 MHz • Talking Mode: Full-Duplex (High-Definition Audio) • Supports: Built-In Relay Motion Detection Tamper Alarm TF Card Open API
