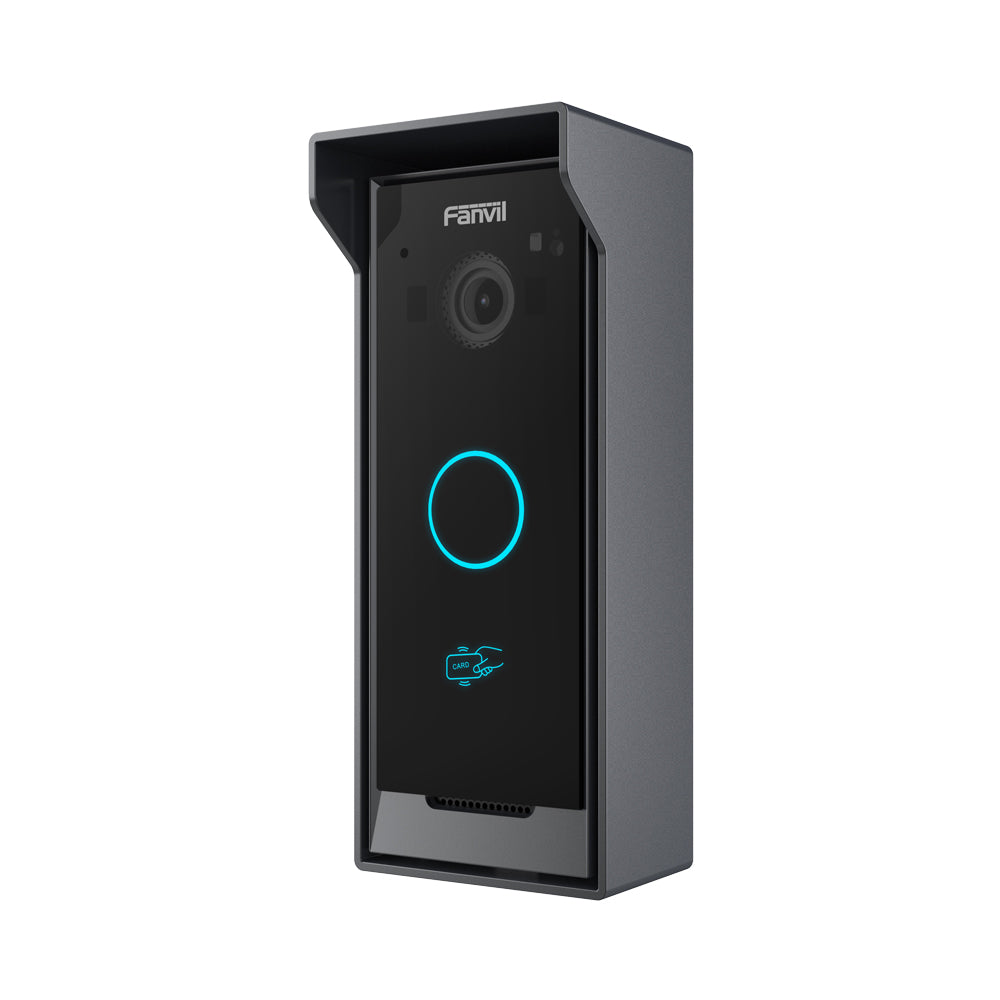

FANVIL I60 COMPACT VIDEO DOOR PHONE

FEATURES • Dedicated Speed Dial Button - Quick access for fast calling and convenient operation • 2MP HDR Camera - High-definition imaging for clear video monitoring • Multiple Access Methods - Unlock doors via password, Bluetooth, IC/ID card or DTMF code • IP65 Protection Rating - Designed for outdoor use with operating temperatures from -40°C to 70°C • Multiple Connectivity Interfaces - Supports integration with various security and access devices • ONVIF Protocol Support - Ensures broad compatibility with standard surveillance systems SPECIFICATIONS PANEL • Keyboard: 1× Speed-Dial Button • Body Material: ABS and PC • Colours: Panel Black, Housing Gunmetal CAMERA • Sensor: 1/2.9" CMOS • Camera: 2MP, Infrared Support • Viewing Angle: 140° (FOV), 100° (Horizontal), 57° (Vertical) • Video Output: H.264 (Baseline, Main Profile) • Light Sensitivity: 0.1 Lux STORAGE • Card Storage: up to 10,000 Cards POWER • Power Consumption: - PoE: 1.63~6.93W - Adapter: 1.51~6.16W • Power Supply: - DC 12V 1A - PoE 802.3af Class 3 ENVIRONMENT • Working Temperature: -40~70°C • Storage Temperature: -40~70°C • Protection Rating: IP65 PHYSICAL • Dimensions (L × W × H): 50 × 130 × 30mm • Installation: Wall-Mounted • Rain Cover: Supported FUNCTIONAL CAPABILITIES PROTOCOLS • SIP 2.0 over UDP / TCP / TLS ACCESS CONTROL • Lock Opening: IC Card, DTMF Code, Remote Door Opening, BLE • Supported Wiegand: 26 / 34-bit INTERFACE • Wiegand Input / Output • Short Circuit Input / Output ONVIF • Supported ONVIF Types: Profile S SUPPORTED STANDARDS • DTMF • IC Card • Indoor Switch • BLE • 13.56MHz Cards AUDIO • Talking Mode: Full-Duplex (High-Definition Audio) ADDITIONAL FUNCTIONS • Built-in Relay • Motion Detection • Tamper Alarm • TF Card Support • Open API Support
