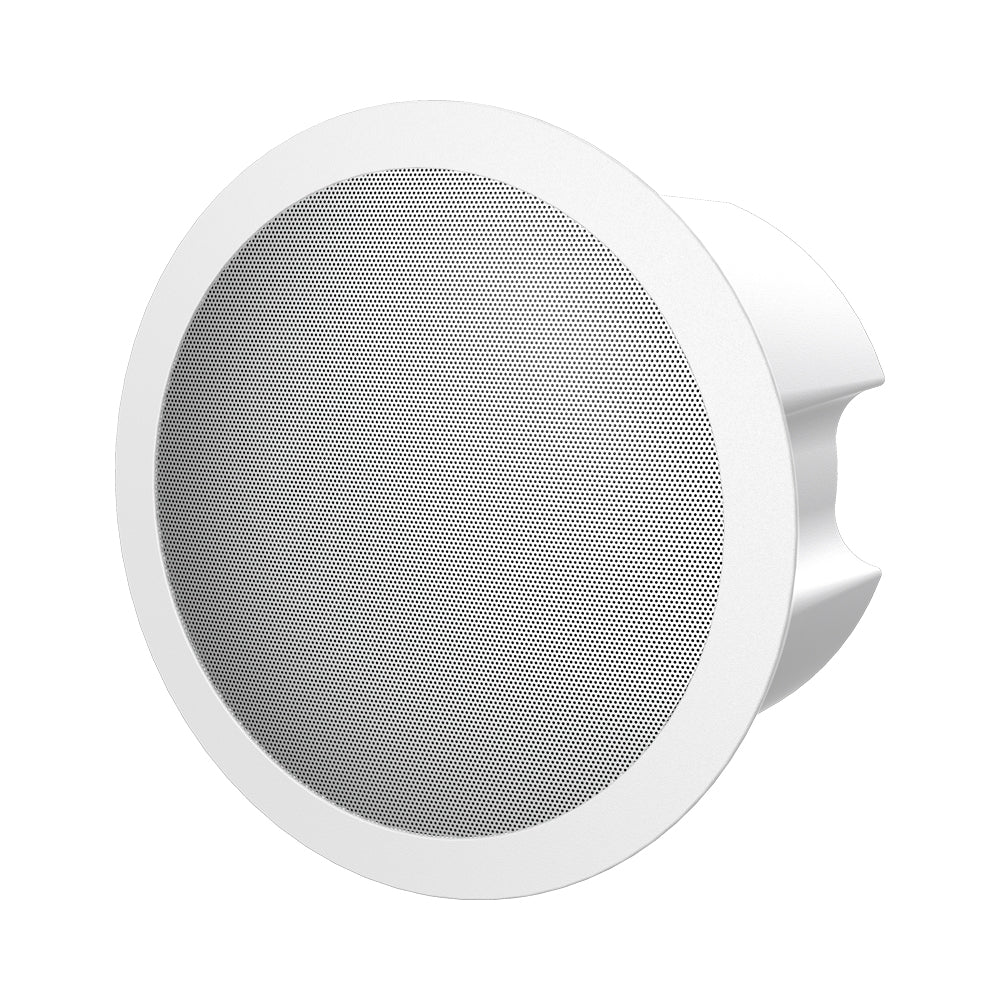

FANVIL FH-S01 SIP CEILING SPEAKER 20W PoE

FEATURES • SIP ceiling‑mounted speaker with built‑in digital amplifier and speaker all‑in‑one • Supports paging, multicasting (up to 10 multicast zones with prioritisation) • High‑intelligibility audio supporting wideband codecs: G.722 & Opus • Built‑in omnidirectional microphone for talk‑back/intercom functionality • Support for emergency notifications / alarm linkage (custom WAV files, RS‑/relay inputs) and remote configuration via web interface • PoE or DC power options; built‑in 10/100 Mbps Ethernet interface SPECIFICATIONS • Audio power: up to ~20 W with built‑in Class D amplifier • Frequency response: ~100 Hz to 20 kHz (per one region spec) • Sensitivity: ~89 dB ±3 dB at 1 m / 1 W • Impedance: 8 Ω (per spec sheet) for speaker driver • Network: 10/100 Mbps Ethernet, supports IPv4/IPv6, SIP 2.0 (RFC 3261) • Power over Ethernet: IEEE 802.3af, Class 0 • Operating temperature: Approx −20 °C to +55 °C • Mounting: Ceiling installation
