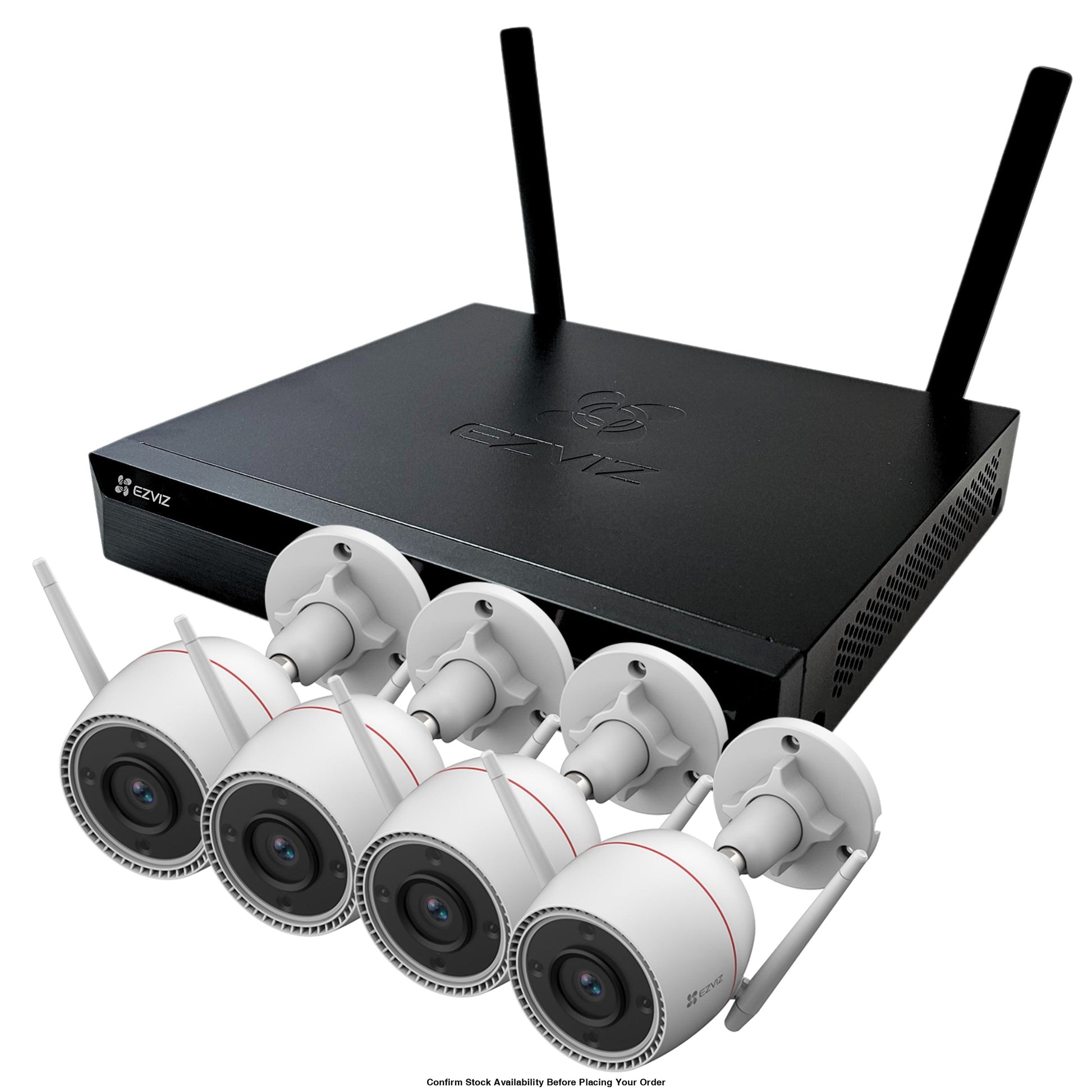

EZVIZ Smart Home 8ch NVR/ 4 Camera 2K Kit (1TB HDD Included)
EZVIZ Smart Home 8ch NVR/ 4 Camera 2K Kit (1TB HDD Included)
Couldn't load pickup availability
- *Please Confirm Stock Availability Before Placing Your Order*
- Secure Online Payments
- Honesty And Satisfaction Guaranteed
Payfast Payments
Yoco Payments
BoB Payments
Pay Just Now Payments
Instant Eft Payments
Mobi Cred Payments
SKU:CS-BW3834 (1T, 3MP)

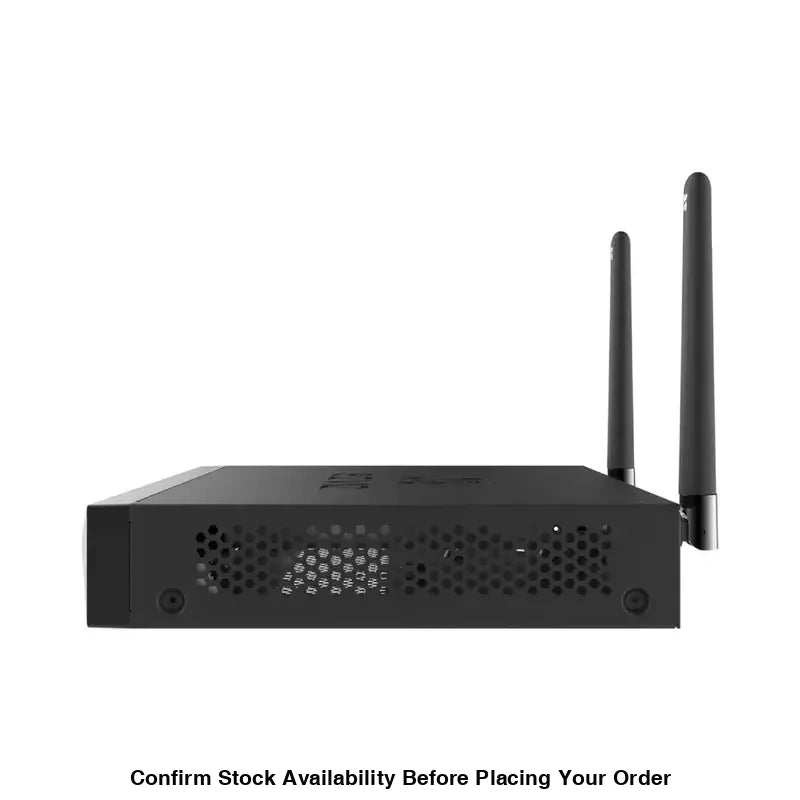

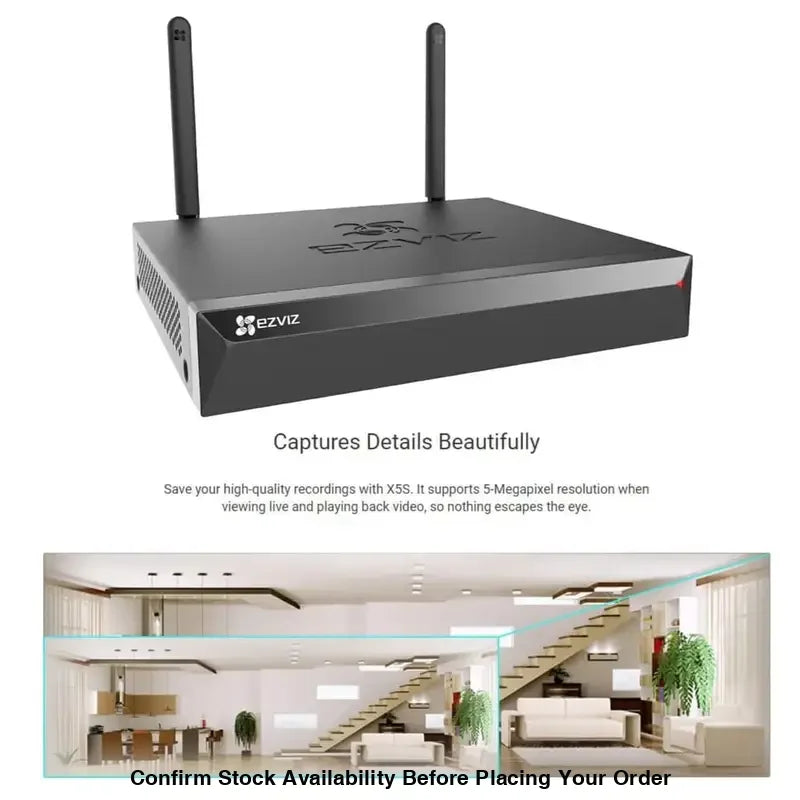

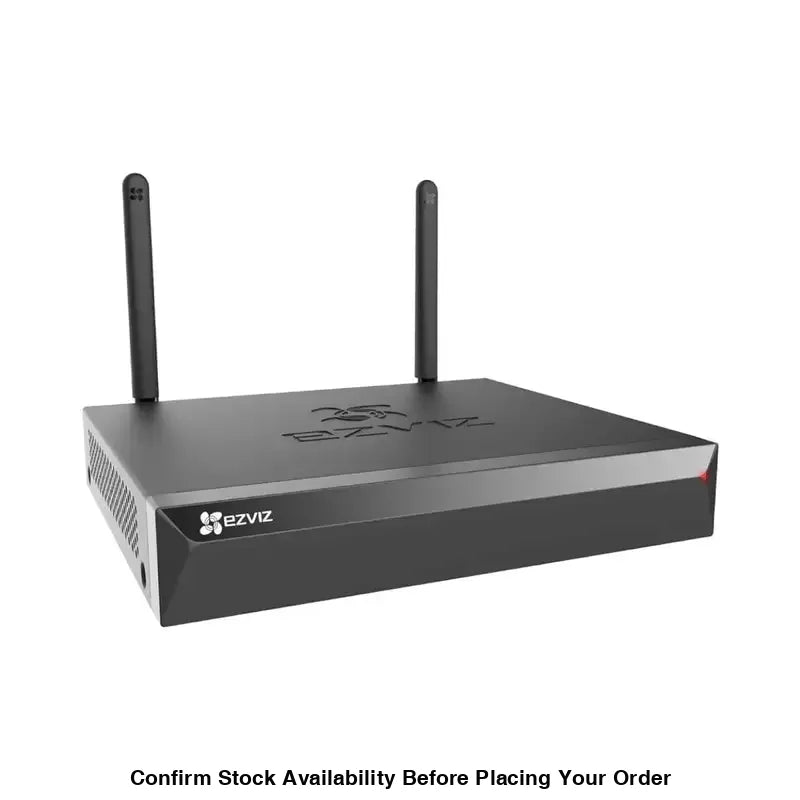

The X5S NVR is designed to manage large-scale videos generated from security needs. In addition to a storage capacity that can be expanded to 8TB², the X5S also receives data and video files from up to 8 connected Wi-Fi cameras³ at the same time.

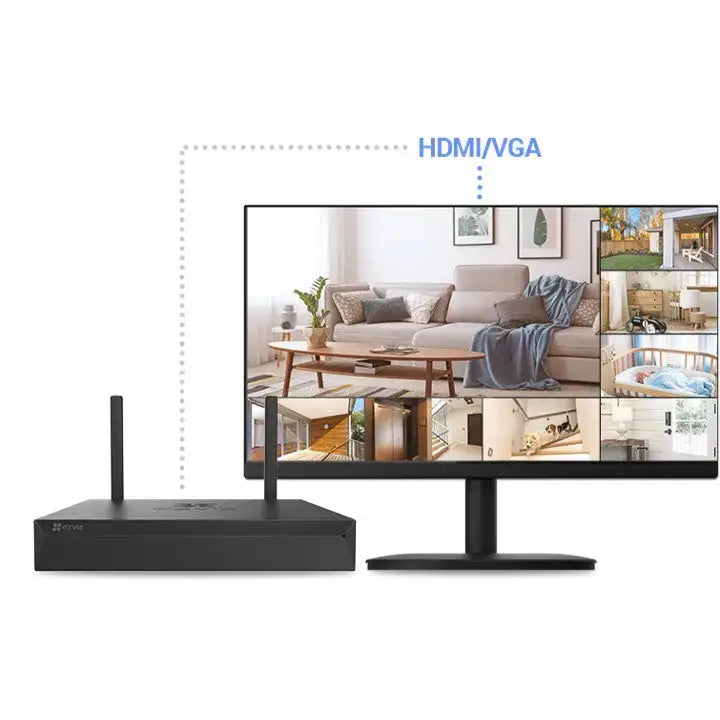

Connecting the X5S to an additional monitor offers even more convenience for multi-camera viewing – the user can display the footages collected by all connected cameras simultaneously on one screen. It supports up to 3K resolution for live or history videos, so you’ll hardly miss a thing.
The X5S uses the H.265 video technology to compress high-resolution video files while maintaining the same video quality and smooth viewing experience for playbacks. You won’t have to worry about large video files taking up too much of your storage space or being too big to load fast – the H.265 technology reduces their sizes by up to 50%¹ and requires only 50% of the bandwidth when compared to H.264.
X5S
High Performance NVR
Specification
| Specifications | |
|---|---|
| Model | CS-X5S-R100-4W, CS-X5S-R100-8W |
| IPC Access Capability | |
| Wireless/Wired IPC Access Capability | 3K *4/3K *8 |
| Wired IPC Access Capability | 3K *4 (X5S-4W) / 3K *8 (X5S-8W) |
| Network Parameters | |
| Antenna Number | 2 |
| Max Wireless Range | 100m |
| Radio Frequency | 2.4G |

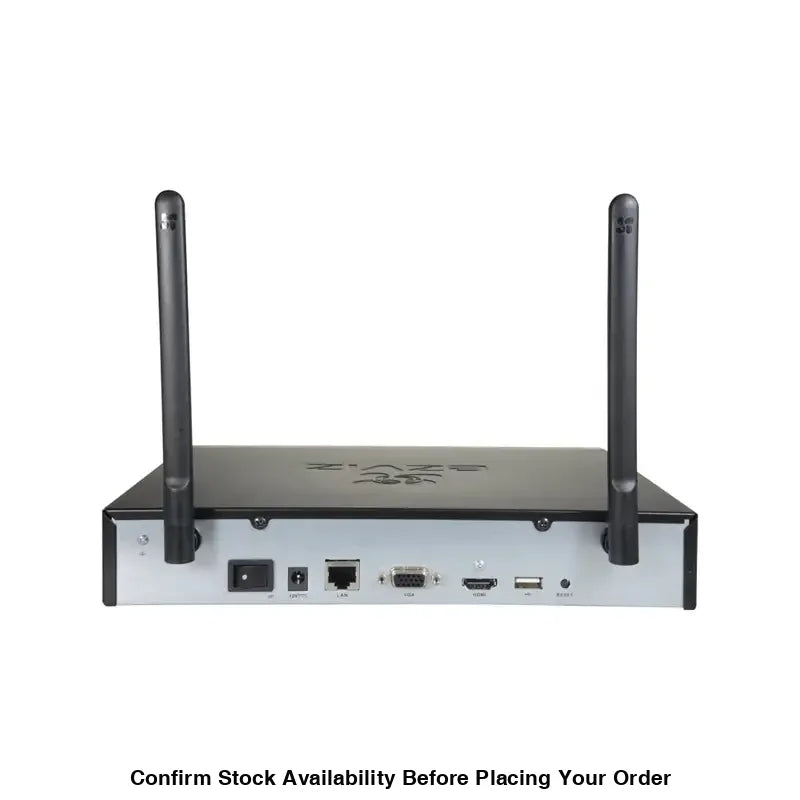

| Ethernet Port | One 10/100M adaptable Ethernet interface |
| Required Access Bandwidth | 50 Mbps/100 Mbps |
| Video Output | |
| VGA | 1 channel (identical to HDMI output) resolution up to 1920*1080/60Hz |
| HDMI | 1 channel resolution up to 2592*1944/30HZ |
| Audio/Video Codec | |
| Recording Resolution | 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF |
| Video Encoding | H.265, H.264 |
| Decode Playback | Supports 4*3K/Supports 8*3K |
| Video Recording Management | |
| Video Recording Mode | Manual video recording; Motion detection recording; Scheduled video recording; Event triggered recording |
| Backup Mode | Hard disk backup, Internet application backup |
| Playback Mode | Instant playback ; Normal playback ; Event playback ; Tag playback; Log event playback |
| Open Protocol | |
| Open Protocol Support | HIKVISION, ONVIF (V.2.5) |
| HDD | |
| Interface Type | One built-in SATA port |
| Capability | Supports 1TB to 8TB 3.5-inch HDD |
| External Interface | |
| Audio Input/ Output | Not support |
| Hardware Reset | Supports |
| USB2.0 Interface | 2 |
| Dimensions | |
| Product Dimensions | 235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch) |
| Packaging Dimensions | 387 × 362 × 75 mm (15.2 × 14.3 × 3 inch) |
| Power Supply | |
| DC | 12V/1.5A |
| Consumption | |
| Standby status | ≤8W |
| Weight | |
| Net Weight | 932 g |
| In the box | |
| In the box | - X5S NVR × 1 |
| - Power Adapter × 1 | |
| - Mouse × 1 | |
| - Screw Kit × 1 | |
| - Regulatory Information × 2 | |
| - Quick Start Guide × 1 | |
| Certifications | |
| Certifications | CE / UL / RoHS / WEEE / REACH
|
- Data from EZVIZ Lab’s test results in open environment. Will vary with the Wi-Fi frequency, camera location, the transfer technology, and other environmental factors.
- The X5S only supports HDD storage. The HDD device should be purchased additionally. Please confirm the compatibility before purchasing.
- The X5S is available in two versions: the X5S-4W supports connecting up to 4 Wi-Fi cameras, and the X5S-8W supports up to 8 Wi-Fi cameras.

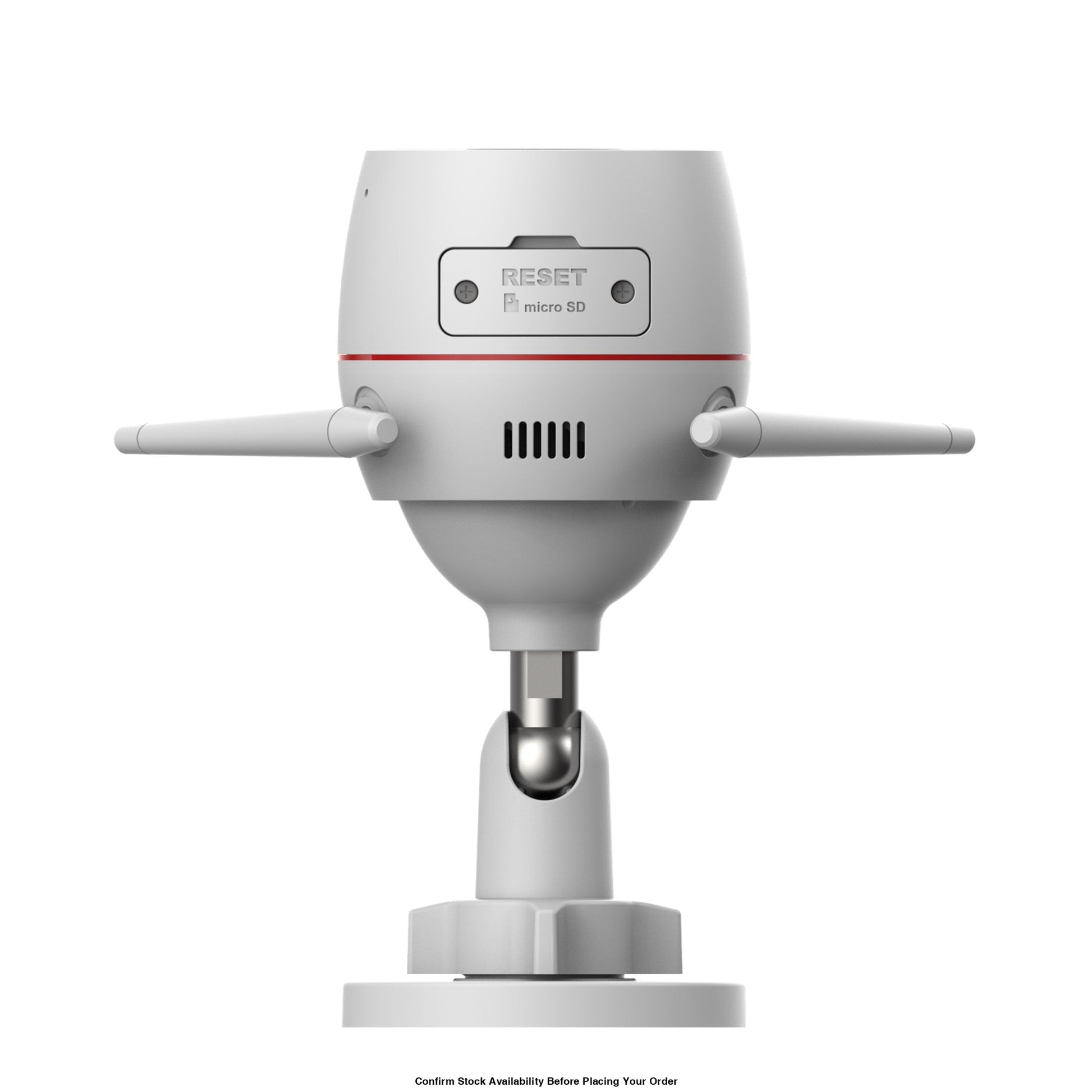

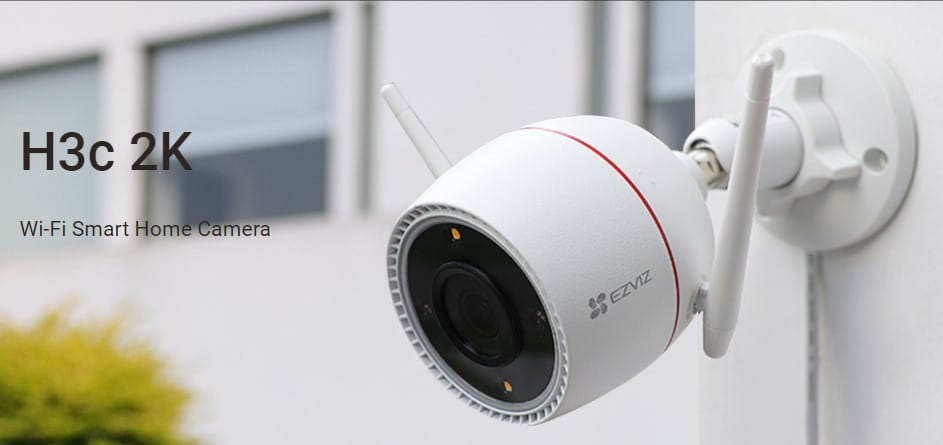

Wi-Fi Smart Home Camera

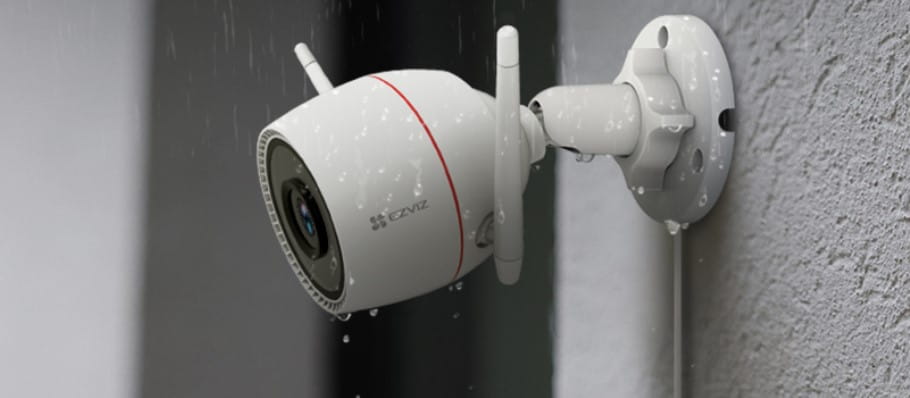

A well-built camera by quality and functionality, the H3c 2K is designed to provide 24/7 non-stop home protection in a smart way. Working as an outdoor guard for most homes, the camera renders ultra-sharp 2K video and colorful night vision, and is smart enough to detect human activities and provide active defense. Compact in size and durable against weathers, the H3c 2K can be your ideal home security camera.
The H3c 2K offers superior detail capturing with ultra-clear 2K resolution. It ensures that you never miss a single important moment that takes place at home.

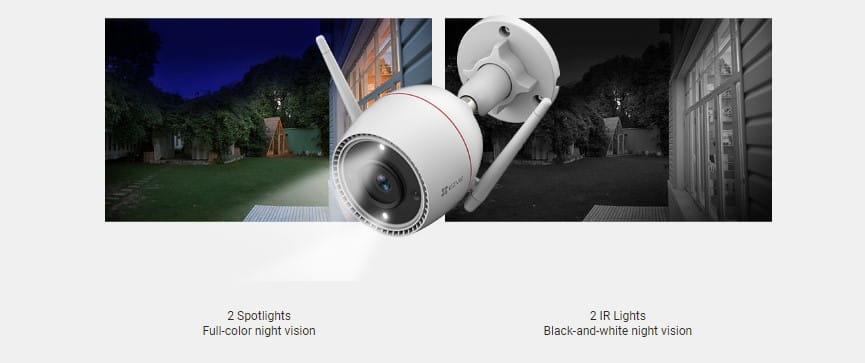

Unsatisfied with blurry, overexposed black-and-white images during the nighttime? The H3c 2K makes late-night protection easier by restoring colors and details. In addition to a pretty sharp IR night vision, the camera can light up the environment with two built-in spotlights to render color night vision.

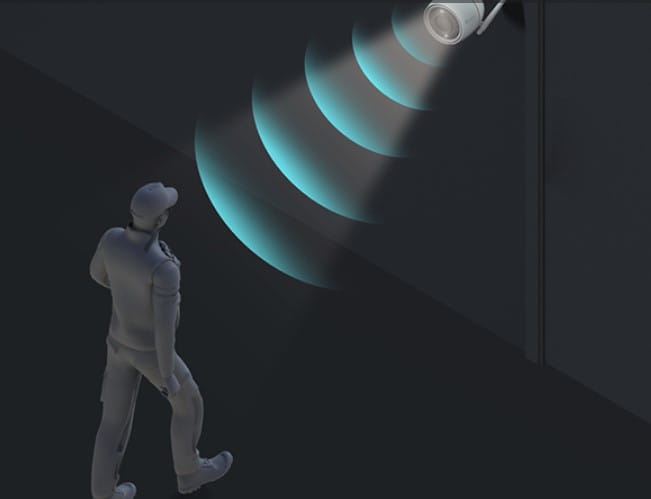

The camera’s onboard AI algorithm helps distinguish and detect moving people in particular, so as to reduce insignificant alerts caused by falling leaves or flying insects. You will receive smarter notifications that matter to you.
The H3c 2K integrates EZVIZ’s beloved active defense function to provide an extra layer of protection. Upon detection of intruders, the camera will set off a loud siren and flash two spotlights⁴ to warn them away.
You can integrate the H3c 2K to your existing smart home system. Voice-enable the live viewing with “Hey Google” or “Alexa” to check what’s happening on a bigger screen.
Enhanced viewing pleasure with smaller video files
H3c 2K
| Specifications | |
|---|---|
| Model | CS-H3c-R100-1K3WKFL |
| Camera | |
| Image Sensor | 1/2.7”Progressive Scan CMOS |
| Minimum Illumination | 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| IR Night Vision Distance | Up to 98 ft / 30 m |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal) |
| Lens Mount | M12 |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Day / Night Switch | IR-Cut filter with auto-switching |
| Video & Audio | |
| Max. Resolution | 3MP, 2304 × 1296 |
| Frame Rate | Max: 30fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| Video Bit Rate | Quad HD; Hi-Def; Full HD; Standard. Adaptive bit rate |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 3 Mbps |
| Network | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps |
| Wi-Fi Pairing | AP Pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 (10M / 100M Adaptive Ethernet Port) |
| Function | |
| Detection | Human Shape Detection, Motion Detection |
| Customized Alert Area | Supports |
| Integration | Works with Alexa, Google Assistant, IFTTT |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark |
| Storage | |
| Local Storage | Supports microSD card (Up to 512 GB) |
| Cloud Storage | Supports EZVIZ CloudPlay storage (Subscription required) |
| General | |
| Operating Conditions | -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing) |
| IP Grade | IP67 |
| Power Supply | DC 12V / 1A |
| Power Consumption | MAX. 9W |
| Dimensions | 72 × 72 × 157 mm (2.83 × 2.83 × 5.98 inch) |
| Packaging Dimensions | 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch) |
| Weight(With Package) | 539 g (19.01 oz) |
| Net Weight | 330 g (11.64 oz) |
| In the box | |
| In the box | H3c 2K Camera |
| Drill Template | |
| Screw Kit | |
| Waterproof Kit | |
| Power Adapter | |
| Regulatory Information | |
| Quick Start Guide | |
