ELEMENT SCOPE NEXUS GEN II 4-25X50 APR-1C MOA

The word “NEXUS” means “focal point”, and that is what this model is to the ELEMENT OPTICS range. The GEN II takes the DNA of the first generation NEXUS and pushes it to another level with a 4-25x Magnification, a new Turret System and Digital Illumination – the ultimate 30mm riflescope. A variety of different reticle designs in both MOA and MRAD cater to all shooters: Simplified options are easy on the eye, while more complex designs allow experienced shooters to hold off with precision. Our design team of global competition winners & hunters understand optics, and have introduced strict quality control measures to ensure perfect operation under testing conditions. And if something goes wrong? Our Platinum Lifetime Warranty has you covered – No paperwork or registration required.

• 30mm Main Body Tube
• Compact, Lightweight design
• Illuminated, First Focal Plane Reticle
• Side Parallax: 10yds-Infinity
• Advanced Fully Multi-Coated Lenses with Anti-Fouling Layer

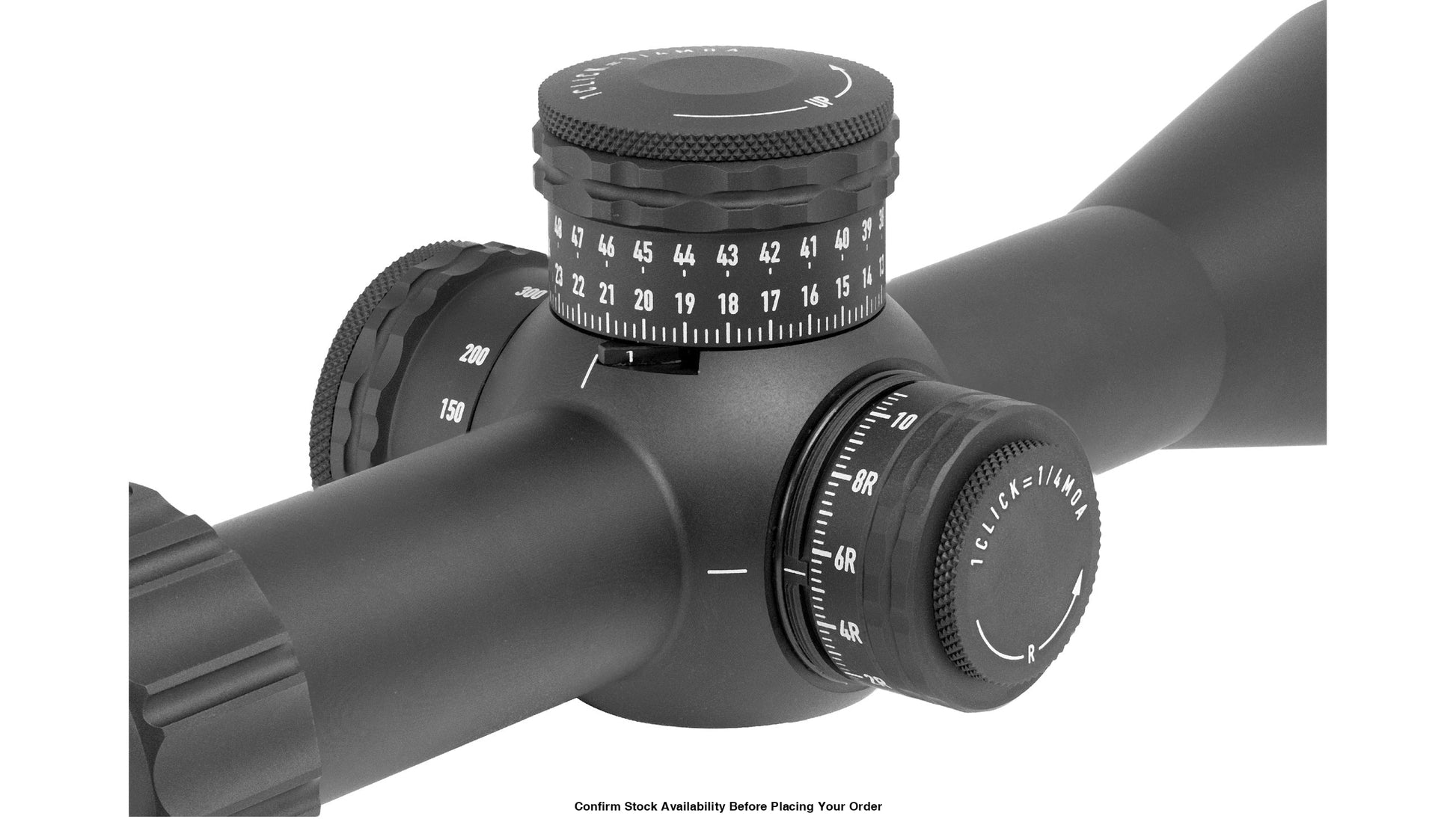

• Tool-free Resettable Turrets with 10 MRAD / 25 MOA per Revolution
• Revolution Indicator
• Tool-Free Mechanical Zero-Stop
• Push-Button Illumination
• Removable Magnification Throw Lever
• Waterproof, Fogproof, Shockproof & Nitrogen Purged
• Sunshade, Aperture Ring & Neoprene Cover included

• MAGNIFICATION RANGE	4-25x
  TUBE DIAMETER	30mm
  OBJECTIVE LENS DIAMETER	50mm
  EXIT PUPIL	7.1-2.0mm
  EYE RELIEF	77-92mm (3.0-3.6”)

  FIELD OF VIEW	@100yds: 29.2-4.7 ft	@100m: 9.7-1.6m
  CLICK VALUE	1/4 MOA (20 MOA / REV)	1/10 MRAD (10 MRAD / REV)
  ELEVATION ADJUSTMENT RANGE	100 MOA	29 MRAD
  WINDAGE ADJUSTMENT RANGE	40 MOA	11.6 MRAD
  MINIMUM PARALLAX	10 YDS	10 METERS

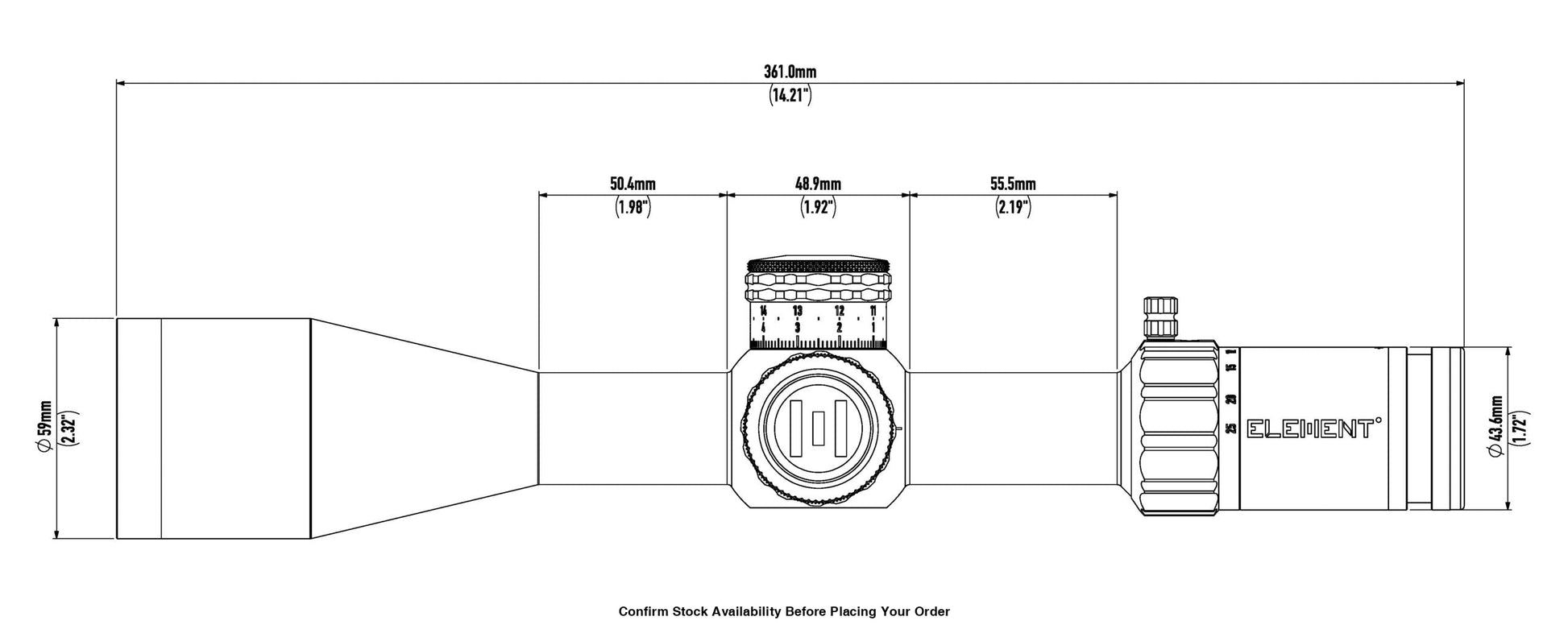

  LENGTH	13.8”	350mm
  WEIGHT	30.7oz	870g
