DSC Bravo 6-Pet

DSC Bravo 6-Pet

R 982.00 ZAR
R 982.00 ZAR
Sale Request A Quote On WhatsApp button
Taxes included. Shipping calculated at checkout.

BV601
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

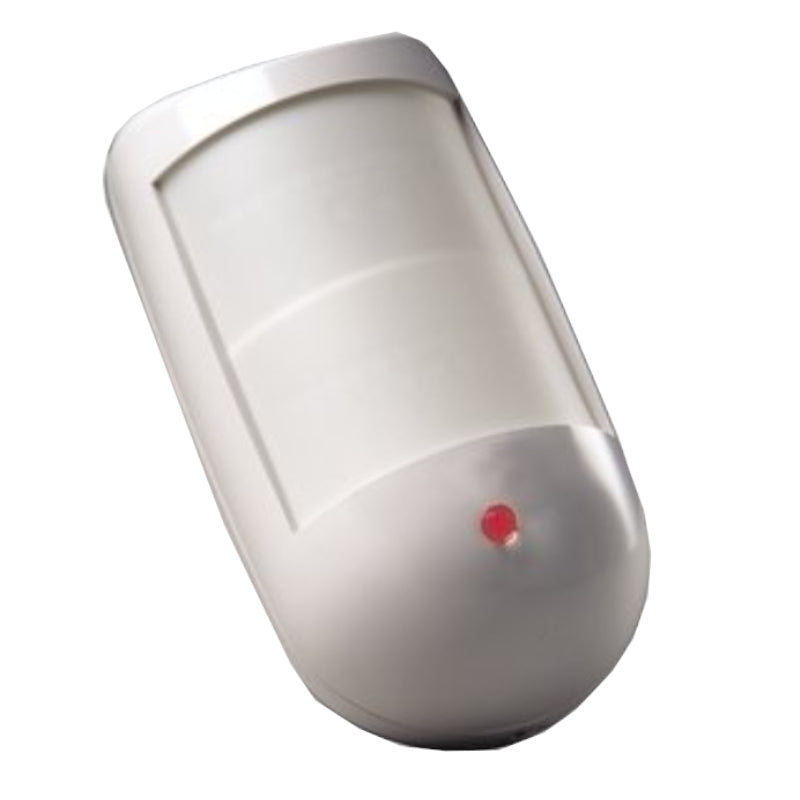

DSC Bravo 6-Pet is a specialized twin dual PIR motion sensor which emphasizes immunity from false alarms caused by pets.
which enables the detector to discriminate between humans and small to mid-sized pets.
Exceptional design care and factory testing ensure years of trouble free performance. Immunity against false alarms from RF, static, electrical transients and white light are all DSC designed in features. Temperature compensation and large multi-beam lens design means
the human target will not slip by unnoticed even on a hot summer day.

Digital signal analysis for consistent detection throughout the coverage pattern.
Digital temperature compensation for improved catch performance at critical temperatures.
Patented Multi-Level Signal Processing (MLSP) for accurate detection of human IR energy over a broad range of temperatures.

Features:
Immune to pets under 0.75 m 38 kg
Microprocessor based
Advanced Multi-Level Signal (MLS) Processing∗∗
Twin, dual element, low noise sensors
High level static protection
High level transient protection
UV stable lens
High level of white light immunity
Excellent RF immunity
DSC Temperature compensation circuitry

Technical:
Dual PIR
Motion Detector

Specifications:
Operating voltage: 9.5 VDC to 14.5 VDC
Supply voltage ripple: 3.0 VP-P @ 12 VDC
Stand-by current: 16.5 mA
Current in alarm (LED on): 17.5 mA
Contact rating (alarm & tamper): 100 mA @ 24 VDC
Alarm contact resistor in common: 28 ohm 0.25 W
Operating temperature: 0°C to 49°C
Storage temperature: -40°C to 60°C
Operating humidity: 5% to 93% RH non-condensing
Storage humidity: up to 99% RH non-condensing
Radiated RF immunity: 20 V/m with 80% AM over range, 27MHz to 1.0GHz
Conducted RF immunity: 10V with 80% AM over range 150kHz to 80MHz
Static immunity: 15 kV
Transient immunity: 2.4 kV @ 1.2 joules
Walk detection speed: 0.5'/s to 10'/s (0.15 m/s to 3 m/s)
Coverage angle (wall/wall lens): 100° maximum
Vertical adjustment: +2° to -5°
Mounting heights: 2.1m to 3.2m (nominal 2.3m)
