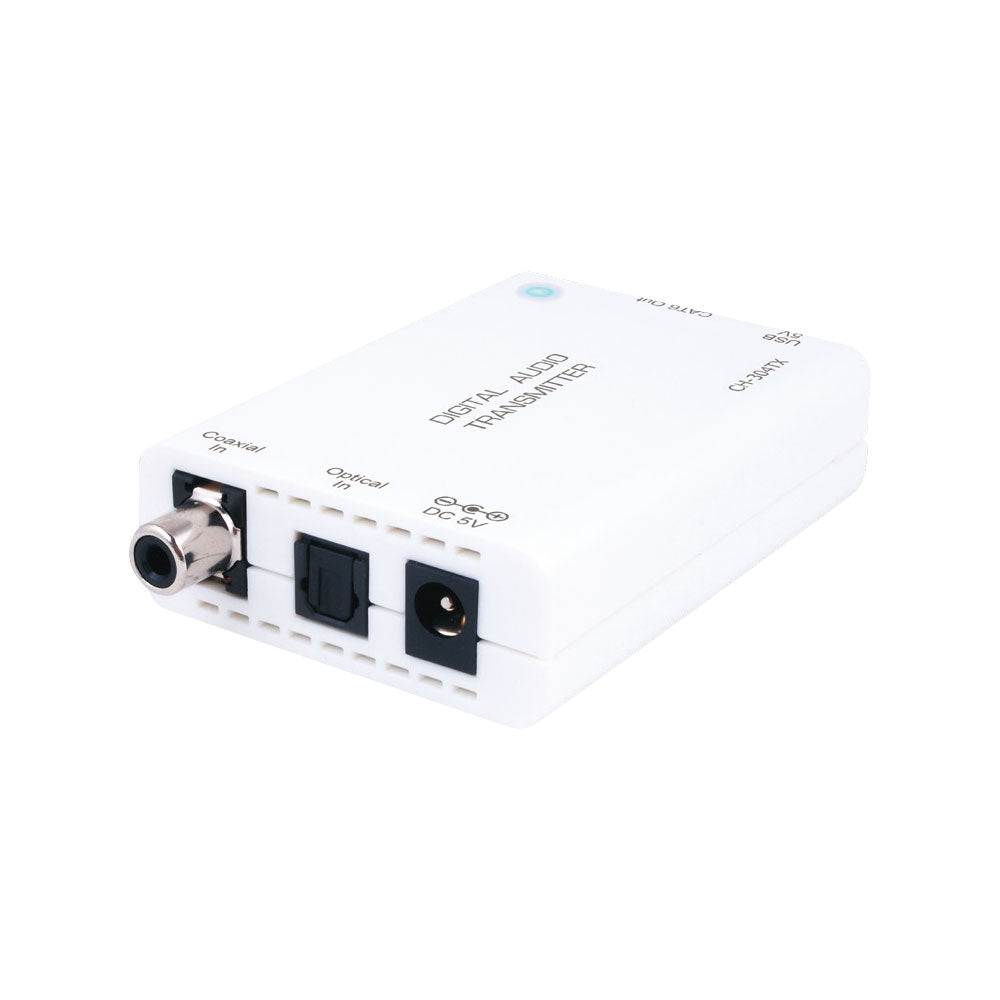

CYP CH-304TX DIGITAL AUDIO OVER CAT5E/6/7 TRANSMITTER

FEATURES • Long-Distance Audio Extension - Transmits digital audio up to 150m over CAT cable • Dual Input Support - Accepts both Optical and Coaxial digital audio sources • High-Quality Audio Formats - Supports LPCM 2CH, Dolby Digital and DTS 5.1 • Wide Sampling Rates - Supports up to 96kHz digital audio • Flexible Power Options - Powered via USB or DC adaptor • Single-Side Power Operation - Only one unit requires power for both transmitter and receiver to operate (use either USB or DC power per unit, not both) • Simple Single Cable Setup - Uses one CAT5e/6/7 cable for transmission SPECIFICATIONS • Input Ports: 1x Coaxial, 1x Optical • Output Port: 1x CAT6 • Max. Distance: 150m over CAT5e/6/7 • Sample Rate: 32 / 44.1 / 48 / 88.2 / 96kHz • Power Supply: 5V 1A DC or USB Power • Power Consumption: 2W • Dimensions: 70 x 50 x 22mm • Weight: 50g • Chassis Material: Plastic
