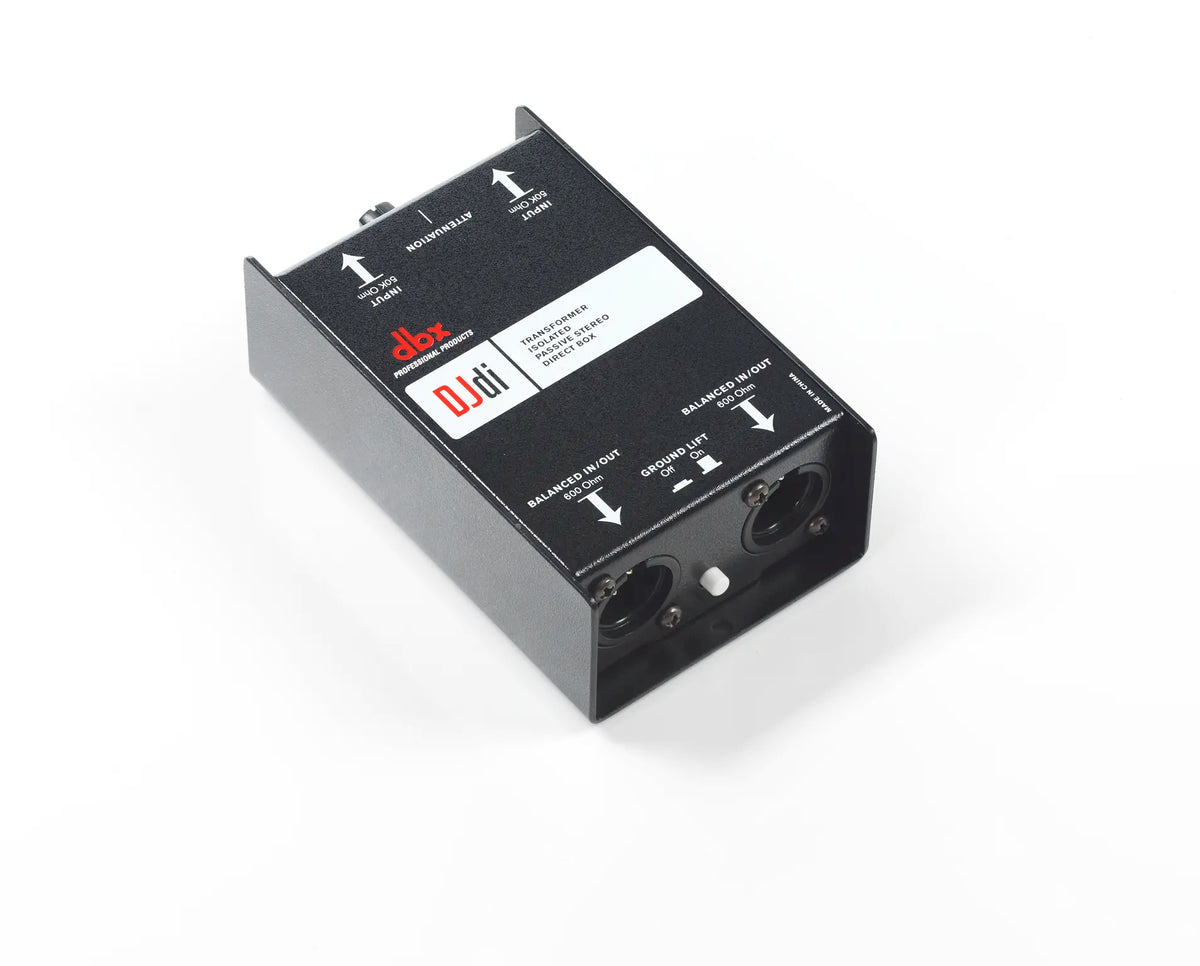

DBX 2CH PASSIVE DIRECT BOX (DBXDJDI)

The dbx DJDI is a 2-channel passive direct box that converts unbalanced instrument or line-level signals into balanced, transformer-isolated outputs for clean, noise-free connections to mixers, PA systems and recording consoles. Since it's fully passive, it needs no power supply or battery and works anywhere, including situations without phantom power.

• 2 independent DI channels
• 1/4" TS unbalanced, RF-filtered inputs, 50kOhm input impedance
• Balanced male XLR outputs, 600 Ohm output impedance
• Noise floor: -104dBu (22Hz-22kHz, input shorted)
• THD+N: 0.23% typical @ +4dBu @ 1kHz
• Insertion loss: 21dB typical
• Built-in ground-lift switch to eliminate hum from ground loops
• Input attenuator to prevent overload from hot signals
