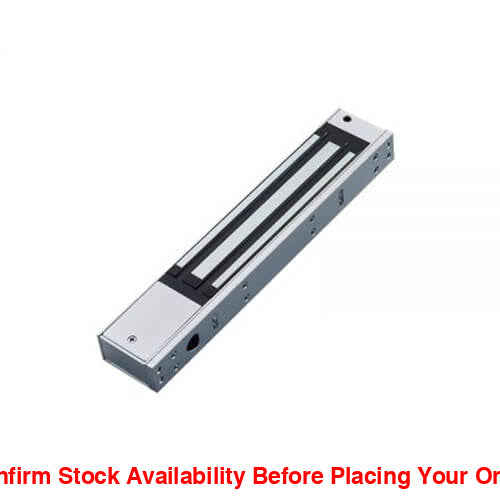

ZKTeco LM-2805 280kg Mag Lock LED

Dahua ZKTeco LM-2805 280kg Mag Lock LED

Electromagnetic lock with holding force 200kg, with door sensor (model LM-2805). Features: input voltage DC12V; working current 450mA±5 % (LM-2802) / 480mA±5 % (LM-2805); tensile force range 200kg±5 %; lock body size 250x47x25.5mm; iron plate size 180x38x11mm; signal output (only LM-2805): NO/COM/NC.

• Input voltage DC12V
• Working current 450mA±5 % (LM-2802) / 480mA±5 % (LM-2805)
• Tensile force range 200kg±5 %
• Lock body size 250x47x25.5mm
• Iron plate size 180x38x11mm
• Signal output (only LM-2805): NO/COM/NC
• Dimensions (W*H*D)

  Lock body: 250*47*25.5mm; Iron plate: 180*38*11mm
  Gross Weight

  1.77kg
  Mounting Brackets

  LMB-280L / 280U / 280Z / 280ZL / LMD-280L / 280Z / 280ZL
  Operating Voltage

  12V DC
  Operating Current

  400mA ±5%
  Temperature Rise

  +15°C (Ambient temperature of 29°C; 6 hours after DC 12V is energized. The highest temperature of the lock body is 41°C)
  Interface Optional

  Red: + Black: -
  Tensile Force Range

  240kg ± 5%
