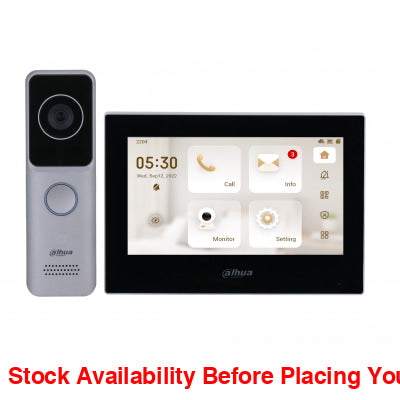

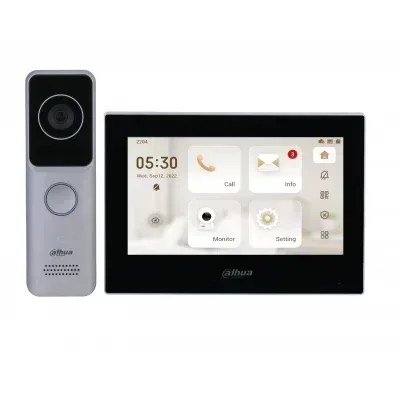

Dahua Wi-Fi Villa Door Station IP Indoor Monitor

System

Main Processor

Embedded Processor

Button Type

Mechanical

Interoperability

ONVIF; CGI

Network Protocol

RTSP; DNS; P2P; UPnP; RTP; RTMP; SIP; SSH; HTTP/HTTPS; ONVIF

Basic

Camera

1/2.8" CMOS 2-MP HD camera

Field of View

H: 110°; V: 62°; D: 133°

WDR

120 dB

Noise Reduction

3D NR; 2D NR

Video Compression

H.264; H.265

Video Resolution

Main stream: 720p, WVGA, D1, and CIF
Sub stream: 1080p, WVGA, D1, QVGA, and CIF

Video Frame Rate

PAL: 25 fps
NTSC: 30 fps

Video Bit Rate

768 kbps–8 Mbps

Light Compensation

Auto IR

Day/Night

Auto (ICR)/Color/B/W; Color/B/W

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way audio

Audio Enhancement

Echo suppression/digital noise reduction;Echo suppression; Digital noise reduction

Audio Bit Rate

16 kHz, 16 bit

Function

Communication Mode

Full digital

Unlock Mode

Card; app; indoor monitor

Card Type

IC card

Auto Snapshot

Yes (SD card is inserted in the indoor monitor or door station)

Leave Videos

Yes (SD card is inserted in the indoor monitor or door station)

Web Configuration

Yes

Wi-Fi

Yes

Wireless Standard

IEEE 802.11b; IEEE 802.11g; IEEE 802.11n

Wireless Frequency Range

2.4 GHz

Storage

Micro SD card (max. 256 GB)

Performance

Card Reading Distance

0 cm–3 cm (0"–1.18")

Issue Card Locally

Yes

Casing

PC + ABS

Capacity

Card Capacity

3000

Port

Exit Button

1

Door Status Detection

1

Lock Control

1

Network Port

1 × RJ-45 10/100 Mbps Ethernet port

Alarm

SOS

Yes

General

Appearance color

Light grey

Power Supply

12–33 VDC, 1 A ;Standard PoE

Power Adapter

Optional

Installation

Surface Mount

Certifications

CE; FCC

Accessory

Included: Alarm power ribbon cable, rain cover

Product Dimensions

160 mm × 50 mm × 30 mm (6.30" × 1.97" × 1.18")

Protection

IP65

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

10%–90% (RH), non-condensing

Operating Altitude

0 m–3,000 m (0 ft–9,842.51 ft)

Power Consumption

≤ 3.5 W (standby), ≤ 6 W (working)

Gross Weight

0.4 kg (0.88 lb)

Net Weight

0.18 kg (0.40 lb)

DHI-VTH2621G-WP

System

Main Processor

Embedded processor

Network Protocol

RTSP; RTP; SIP; DNS; SSH

Basic

Screen Type

Capacitive touchscreen

Display

7" TFT

Screen Resolution

1024 × 600

Audio Compression

G.711a; G.711u; PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

Two-way Audio

Audio Enhancement

Echo suppression

Audio Bit Rate

16 kHz; 16 bit

Function

Communication Mode

Full digital

Information Release

Receive and view text information released by the management center

DND Mode

Do not disturb period can be set; Do not disturb mode

Number of Extensions

Villa: 9
Apartment: 4

Wi-Fi

Yes

Wireless Standard

IEEE 802.11b; IEEE 802.11g; IEEE 802.11n

Wireless Frequency Range

2.4 GHz

Wireless Security Encryption

WPA/WPA2; WPA-PSK/WPA2-PSK

Performance

Casing

PC + ABS

Port

Alarm Input

6

Alarm Output

1

Power Output

1 (12 V/200 mA)

Door Bell

Yes (use any alarm input port)

Network

1 × RJ-45 10/100 Mbps Ethernet port

Alarm

SOS

Yes

General

Color

Black

Power Supply

12 VDC 1A
Standard PoE

Installation

Surface Mount

Certifications

CE; FCC

Accessory

Bracket and alarm ribbon cable (included)

Dimensions

189.6 mm × 134.6 mm × 26.0 mm (7.50" × 5.30" × 1.00")

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

10%–95% RH (non-condensing)

Operating Altitude

0 m–3,000 m (0 ft–9,842.51 ft)

Power Consumption

≤2 W (standby); ≤6 W (working)

Net Weight

0.34 kg (0.74 lb)

Gross Weight

0.58 kg (1.27 lb)
