• Dahua Thermal Network Bullet Camera 25mm
1 1

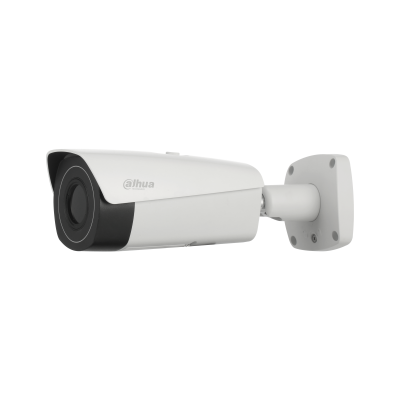

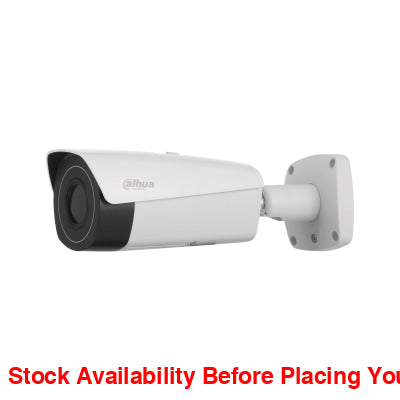

Dahua Thermal Network Bullet Camera 25mm

Dahua Thermal Network Bullet Camera 25mm

R 55,815.00 ZAR
R 55,815.00 ZAR
Sale Sold out
Shipping calculated at checkout.
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Secure Online Payments
  • Honesty And Satisfaction Guaranteed
  • Payfast Payments
  • Yoco Payments
  • BoB Payments
  • Credit And Cheque Card
  • Instant Eft Instant Eft Payments
  • MobiCredMobi Cred Payments

DHI-TPC-BF5401-25mm

Dahua Thermal Network Bullet Camera 25mm

> 400x300 VOx uncooled thermal sensor technology
> A thermalized Lens (thermal), Focus-free
> Support Fire detection & alarm
> Various lens optional (25mm)
> 2/2 alarm in/out
> Micro SD memory, IP67, PoE, ePoE

Thermal Camera

Image Sensor

Uncooled VOx Microbolometer

Effective Pixels

400(H)x300(V)

Pixel Size

17um

Thermal Sensitivity(NETD)

40mK

Spectral Range

8~14um

Image Setting

Brightness/Sharpness/ROI/AGC/FFC/3D DNR

Color Palettes

18(Whitehot/Blackhot/Ironrow/Icefire/

Fusion/Rainbow/Globow/Iconbow1/

Iconbow2 .etc)

Thermal Lens

Lens Type

Fixed/F1.0

Focus Control

Athermalized, Focus-free

Compression

H.265 / H.264 / MJPEG

Frame Rate

Main Stream:

Thermal: 1280x1024 / 720P / 400x300 @25/30fps

Sub Stream:

Thermal: 640x512 / 400x300 @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 640 ~ 8192Kbps

Motion Detection

Off/On (4 zone, Rectangle)

Region of Interest

Off/On (4 zone)

Electronic Image Stabilization

(EIS)

NA

Digital Zoom

4x(19 levels)

Flip

180°

Mirror

Off/On

Privacy Masking

Off/On (4 area, Rectangle)

Audio

Compression

G.711A / G.711Mu / AAC / PCM

Intelligence

IVS

Tripwire, Intrusion

Advanced Intelligent Functions

Fire detection & alarm, Cold/Hot spot trace, Human/Vehicle classification

Network

Ethernet

RJ-45

Protocol

IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

Interoperability

ONVIF Profile S & G, API

Streaming Method

Unicast/Multicast

Max. User Access

10 Users/20 Users

Edge Storage

Micro SD (256GB)

Memory status display (Normal / Error / Active / Formatting / Lock),

NAS (Network Attached Storage), Local PC for instant recording

Web Viewer

>IE8,

Management Software

SmartPSS, DSS

Smart Phone

Android, iOS

Certifications

Certification

CE (EN 60950: 2000) FCC (FCC Part 15 SubpartB )

Interface

Video Interface

1 Port (CVBS/BNC)

Audio Interface

1/1 In/Out

RS485

Support

Alarm

2/2 In/Out

Electrical

Power Supply

DC 12V/PoE/ePoE

Power Consumption

Max. 13W

Environmental

Operating Condition

-40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +70°C (-40°F ~ +158°F)/Less than 95% RH

Ingress Protection

IP67

Construction

Casing

Metal

Dimensions

291mm× 103mm× 97mm (11.46" x 4.06" x 3.82")

Net Weight

1.5Kg (3.31 lb)

Gross Weight

1.9Kg (4.19 lb)
