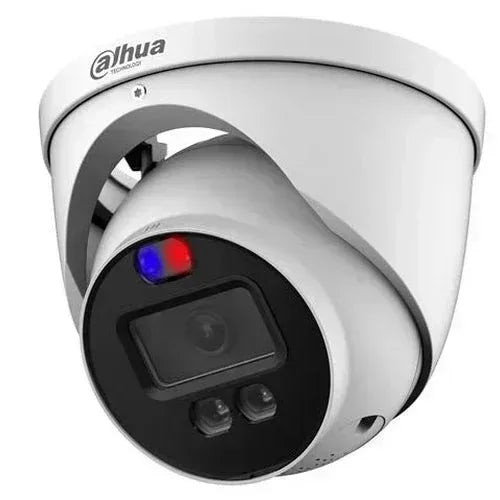

Dahua HDCVI TIOC Dome Camera 5MP 2.8mm Fixed Lens

Dahua HDCVI TIOC Dome Camera 5MP 2.8mm Fixed Lens

• Max 25 fps@5 MP (16:9 video output).
• 120 dB true WDR, 3D NR.
• Smart Dual Illuminators.
• Protection Against Red-Blue Light Interference.
• Active deterrence with red blue light, siren and alarm out interface.
• 40 m illumination distance.
• Super Adapt.
• Built-in MIC.
• 2.8 mm fixed lens
• CVI/CVBS/AHD/TVI switchable.
• IP67, 12 VDC.

• Camera

  • Pixel : 5MP
  • Image Sensor : 5MP CMOS
  • Max. Resolution 2880 (H) × 1620 (V)
  • Scanning System : Progressive
  • Electronic Shutter Speed
    • PAL: 1/3 s–1/100000 s
    • NTSC: 1/4 s–1/100000 s
  • Min. Illumination
    • 0.001 lux@F1.0 (Color, 30 IRE)
    • 0.0001 lux@F1.0 (B/W, 30 IRE)
    • 0 lux (Illuminator on)
  • S/N Ratio : >65dB
  • Illumination Distance
  • IR: 40 m (131.23 ft)
  • Warm light: 40 m (131.23 ft)
  • Illuminator On/Off Control Auto; manual
  • Illuminator Number
    • 2 (IR light)
    • 2 (Warm light)
  • Pan/Tilt/Rotation Range
    • Pan: 0°–360°
    • Tilt: 0°–78°
    • Rotation: 0°–360°

  Lens

  • Lens Type : Fixed-focal
  • Lens Mount : M12
  • Focal Length : 2.8 mm
  • Max. Aperture : F1.0
  • Field of View : 2.8 mm: H: 111°; V: 57°; D: 131°
  • Iris Control : Fixed
  • Close Focus Distance : 2.8 mm: 1.5 m (4.92 ft)

  DORI Distance

  • Lens : 2.8 mm
  • Detect : 66.0 m (216.54 ft)
  • Observe : 26.4 m (86.61 ft)
  • Recognize : 13.2 m (43.31 ft)
  • Identify : 6.6 m (21.65 ft)

  Video

  • Video Frame Rate

    • CVI:
    • PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps
    • NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps;
    • AHD:
    • PAL: 4M@25 fps;
    • NTSC: 4M@30 fps;
    • TVI:
    • PAL: 4M@25 fps;
    • NTSC: 4M@30 fps;
    • CVBS:
    • PAL: 960H;
    • NTSC: 960H
  • Resolution
    • 5M (2880 × 1620);
    • 4M (2560 × 1440);
    • 1080p (1920 × 1080);
    • 960H (960 × 576/960 × 480)
  • Day/Night : Auto (ICR)/Color/B/W
  • BLC : BLC; HLC; WDR; HLC-Pro
  • WDR : 120dB
  • White Balance : Auto; Area white balance
  • Gain Control : Auto; manual
  • Noise Reduction : 3D NR
  • Illumination Mode : Smart IR&WL; WL Mode; IR Mode
  • Defog : Electronic defog
  • Digital Zoom : 4×
  • Mirror : Yes
  • Privacy Masking : Off/On (8 areas, rectangle)

  Active Deterrence

  • Sound Warning
    • Audio 1: Alarm
    • Audio 2: No parking here
    • Audio 3: Private land no entry.
    • Audio 4: Warning zone keep off
    • Audio 5: Welcome
    • Volume: high/medium/low;
    • duration: 5 s–60 s; 110 dB
  • Red/Blue Light Warning : Flash: 5 s–60 s; frequency: high/medium/low

  Port

  • Video Output : Video output choices of CVI/TVI/AHD/CVBS by one BNC port
  • Audio Input : One channel built-in MIC
  • Alarm Output : 1 channel

  Power

  • Power Supply : 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)
  • Power Consumption : Max. 10.5 W (12 VDC, LED on)

  Environment

  • Operating Temperature : –40 °C to +60 °C (–40 °F to 140 °F)
  • Operating Humidity : <95% (RH), non-condensing
  • Storage Temperature : –40 °C to +60 °C (–40 °F to 140 °F)
  • Protection :  IP67

  Structure

  • Casing Material : Metal
  • Product Dimensions : Φ122.0 mm × 110.9 mm (Φ4.80" × 4.37")
  • Packaging Dimensions : 165 mm × 165 mm × 138 mm (6.50" × 6.50" × 5.43")
  • Net Weight : 0.7 kg (1.54 lb)
  • Gross Weight : 0.96 kg (2.12 lb)
  • Installation : Wall mount; ceiling mount; vertical pole mount
