SKU:DHI-ASR2101A-ME

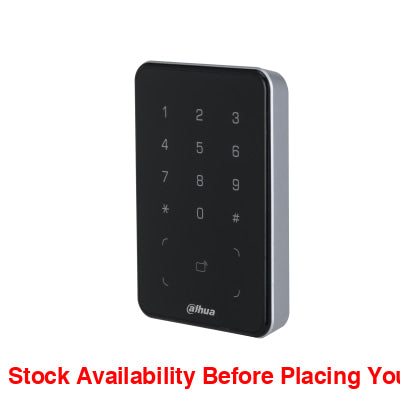

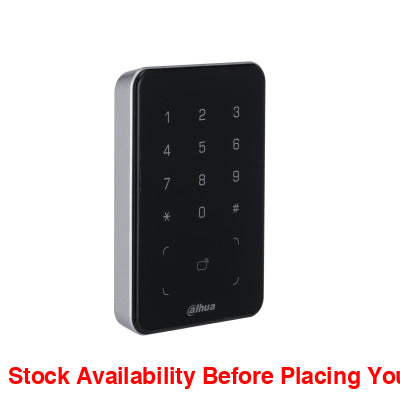

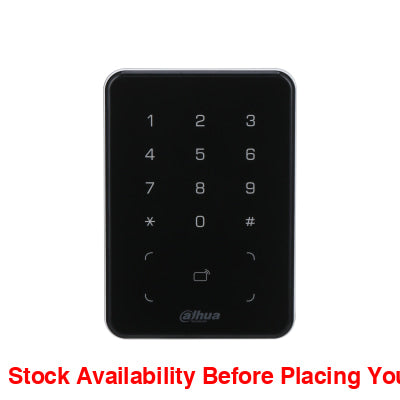

Dahua Access Reader
> PC material, acrylic panel and IP66, suitable for indoor and outdoor use
> Support contactless recognition of IC card (Mifare card) and ID card in two frequencies
> Support card/password unlock
> Support RS485 and Wiegand communication
> Support buzzer and indicator prompt
> Support anti-tampering alarm
> The built-in watchdog can detect and control abnormal operation status of the equipment and perform recovery processing to ensure the long- term operation of the equipment
> All connection ports have overcurrent and overvoltage protection
-
Basic
Product Type
Card reader
Buzzer
Yes
Casing
PC/acrylic panel
Function
Unlock Mode
Card swiping/password
Multiple unlocking modesCard Type
IC/ID card
Performance
Response Time
0.1 s
Card Reading Distance
0 cm–5 cm (0"–1.97")
Port
RS-485
1 channel
Wiegand
1 output channel
Alarm
Tamper Alarm
Yes
General
Power Supply
12V 0.5A DC
Protection
IP66 (silicon sealant is needed, see the manual)
Power Consumption
Standby ≤ 0.9W, working ≤ 1.7W
Product Dimensions
123 mm × 86 mm × 15 mm (4.84" × 3.38" × 0.59") (L × W × H)
Packaging Dimensions
185 mm × 163 mm × 71 mm (7.28" × 6.41 × 2.80")
(L × W × H, 1 in inner carton)
578 mm × 383 mm × 349 mm (22.76" × 15.08" × 13.74") (L × W × H, carton)Operating Temperature
–30°C to +70°C (–22°F to +158°F)
Operating Humidity
5%RH–95% (non-condensing)
Operating Environment
Indoor; outdoor
Gross Weight
0.35 kg (0.77 lb)
Installation
Surface mount
Certifications
CE; FCC
