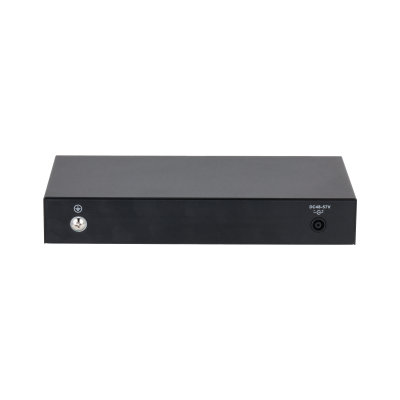

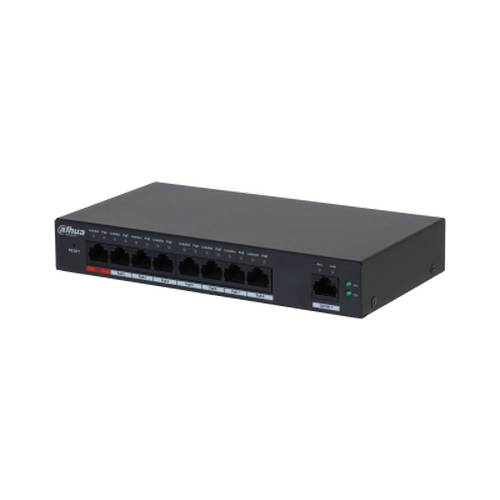

Dahua 9 Port Cloud Managed Gigabit Switch

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

8

Ethernet Port Speed

10/100/1000 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Description of Function Slots

Port 1–8: 8 × RJ–45 10/100/1000 Mbps
Uplink 1: 1 × RJ–45 10/100/1000 Mbps

Power Supply

53 VDC, 1.81 A

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Consumption

Idling: ≤5 W
Full: 96 W

Performance

Smart Managed Switch

Yes

MTBF

74.56 years

Switching Capacity

20Gbps

Packet Forwarding Rate

13.39 Mpps

Packet Buffer Size

1.5 Mbit

Jumbo Frame

9,216 Bytes

MAC Table Size

4K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab

Feature

PoE Protocol

IEEE802.3af; IEEE802.3at;IEEE802.3bt; Hi-PoE

PoE Power

Port 1 ≤90 W;
Port 2–8 ≤30 W;
Total ≤96 W

PoE Power Consumption Management

Yes

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8(V–)

Long Distance PoE Transmission

Yes

IEEE 802.3x Flow Control

Yes

DHCP Function

DHCP Client

Equipment Management

Operation and maintenance management on mobile app;
ConfigTool configuration and management

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

0.5 kg (1.10 lb)

Gross Weight

0.63 kg (1.39 lb)

Product Dimensions

190 mm × 100 mm × 30 mm (7.48" × 3.94" × 1.18")

Packaging Dimensions

265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99")

Certifications

CE; FCC

Transmission Performance:

Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10Ω/100m

Cable(m)

Load Capacity(W)

Bandwidth(Mbps)

IEEE802.3bt 90W

100

71.3

1000

150

62

10

200

51

10

250

40

10

Hi-PoE 60W

100

53

1000

150

50

10

200

47

10

250

37

10

IEEE802.3at 30W

100

25.5

1000

150

25.5

10

200

25.5

10

250

25.5

10
