DH-S4100-4GT2GT-60-C

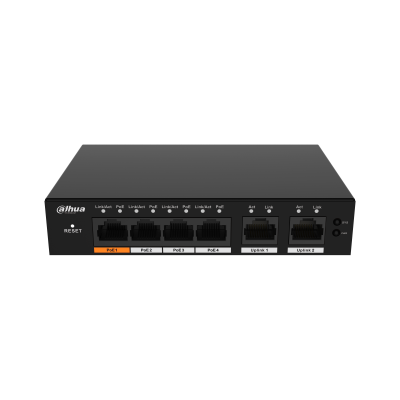

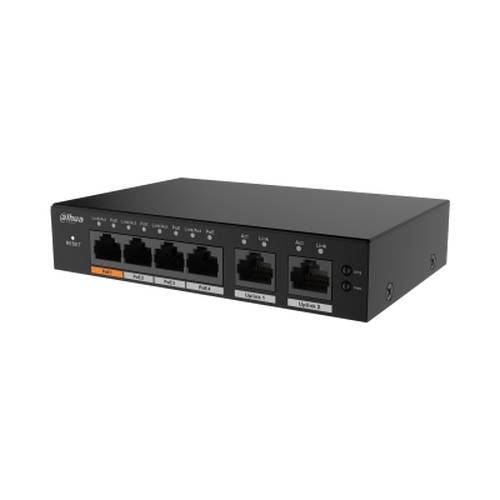

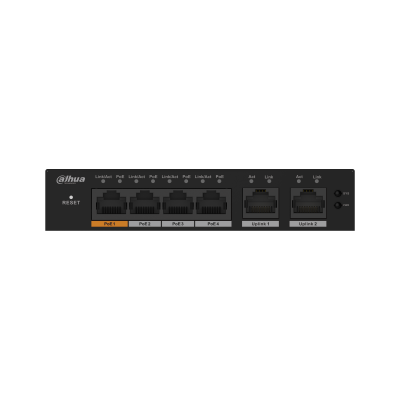

Dahua 6 Port Cloud Managed Gigabit Switch

> Supports visualized management and remote maintenance.

> Supports automatic network topology generation.

> 250 m long-distance power supply.

> 8-pin PoE offers better compatibility and reduces cable loss.

> PoE watchdog monitors the status of terminals in real-time.

> Supports the power management policy.

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

4

Ethernet Port Speed

10/100/1000 Mbps

Ethernet Port Uplink Speed

10/100/1000 Mbps

Description of Function Slots

Port 1–4: 4 × RJ–45 10/100/1000 Mbps
Uplink1–2: 2 × RJ–45 10/100/1000 Mbps

Reset Button

1

Power Supply

53 VDC, 1.226 A

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Consumption

Idling: ≤5 W
Full: 60 W

Performance

Smart Managed Switch

Yes

MTBF

93.24 years

Switching Capacity

12 Gbps

Packet Forwarding Rate

8.93 Mpps

Packet Buffer Size

1 Mbit

Jumbo Frame

9,216 Bytes

MAC Table Size

2K

Communication Standard

IEEE 802.3; IEEE 802.3u; IEEE 802.3X; IEEE 802.3ab

PoE

PoE Protocol

IEEE802.3af; IEEE802.3at; Hi-PoE

PoE Power

Port 1 ≤60 W;
Port 2–4 ≤30 W;
Total ≤60 W

PoE Power Consumption Management

Yes

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8(V–)

Long Distance PoE Transmission

Yes

Port

IEEE 802.3x Flow Control

Yes

DHCP

DHCP Function

DHCP Client

Management & Maintenance

Equipment Management

Operation and maintenance management on mobile app;
ConfigTool configuration and management

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

0.3 kg (0.66 lb)

Gross Weight

0.41 kg (0.9 lb)

Product Dimensions

130 mm × 85 mm × 26 mm (5.12" × 3.35" × 1.02")

Packaging Dimensions

265 mm × 238 mm × 76 mm (10.43" × 9.37" × 2.99")

Certifications

CE; FCC

Transmission Performance:

Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10Ω/100m

Cable(m)

Load Capacity(W)

Bandwidth(Mbps)

IEEE802.3bt 90W

100

71.3

1000

150

62

10

200

51

10

250

40

10

Hi-PoE 60W

100

53

1000

150

50

10

200

47

10

250

37

10

IEEE802.3at 30W

100

25.5

1000

150

25.5

10

200

25.5

10

250

25.5

10
