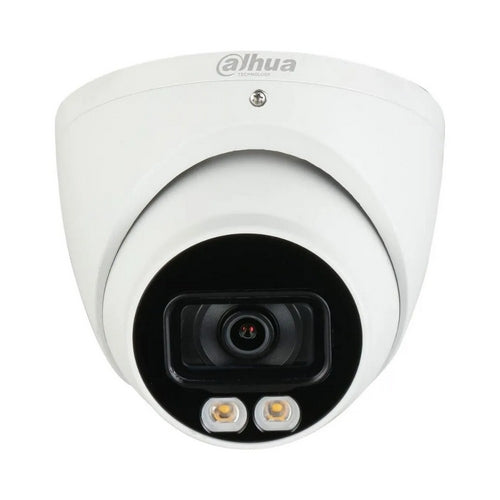

Dahua 4MP WizSense Dome IP Camera Full-Colour Active Deterrence

Dahua 5MP WizSense Bullet IP Camera Full-Colour Active Deterrence

• 5MP, 1/2.7"" CMOS image sensor, low illuminance, high image definition
• Outputs max. 5MP (2592 × 1944) @20 fps, and supports 4MP (2688 × 1520) @25/30 fps
• H.265 codec, high compression rate, low bit rate
• Built-in warm illuminator, and the max. illumination distance: 30 m
• ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
• Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
• Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
• Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
• Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing.
• Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period.
• Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker
• 12V DC/PoE power supply
• IP67 protection
• SMD Plus
• Red and blue flashlight alarm

• Camera

  • Image Sensor : 1/2.7" 5Megapixel progressive CMOS
  • Max. Resolution : 2592 (H) × 1944 (V)
  • ROM : 128 MB
  • RAM : 512 MB
  • Scanning System : Progressive
  • Electronic Shutter Speed : Auto/Manual 1/3 s–1/100,000 s
  • Min. Illumination : 0.003 Lux @ F1.0
  • S/N Ratio : > 56 dB
  • Illumination Distance : 30 m (98.4 ft)
  • Illuminator On/Off Control : Auto/Manual
  • Illuminator Number : 1 (Warm light)
  • Pan/Tilt/Rotation Range
    • Pan: 0°–360°
    • Tilt: 0°–78°
    • Rotation: 0°–360°

  Lens

  • Lens Type : Fixed-focal
  • Mount Type : M12
  • Focal Length : 2.8 mm
  • Max. Aperture : F1.0
  • Field of View : 2.8 mm: Horizontal 103° × Vertical 53° × Diagonal 122°
  • Iris Type : Fixed
  • Close Focus Distance : 2.8 mm: 1.2 m (3.9 ft)


  DORI Distance

  • Lens : 2.8 mm
  • Detect : 67.4 m (221.1 ft)
  • Observe : 27 m (88.6 ft)
  • Recognize : 13.5 m (44.3 ft)
  • Identify : 6.7 m (22.0 ft)

  Professional, intelligent

  • IVS (Perimeter Protection) : Tripwire; intrusion (support the classification and accurate detection of vehicle and human)
  • Intelligent Search : Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.

  Video

  • Video Compression : H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
  • Smart Codec : Smart H.265+/Smart H.264+
  • Video Frame Rate
    • Main stream: 2592 × 1944 @1-20 fps 2688 × 1520 @1-25/30 fps
    • Sub stream: 704 × 576 @1-25 fps/704 × 480 @ 1-20fps
    • Third stream: 1920 × 1080 @1-25/30 fps
  • Stream Capability : 3 streams
  • Resolution : 5M (2592 × 1944); 4M (2688 × 1520); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (354 × 288/354 × 240)
  • Bit Rate Control : CBR/VBR
  • Video Bit Rate :
    • H.264: 32 kbps–8192 kbps
    • H.265: 12 kbps–8192 kbps
  • Day/Night : Color/B/W
  • BLC : Yes
  • HLC : Yes
  • WDR : 120 dB
  • Scene Self-adaptation (SSA) : Yes
  • White Balance : Auto/natural/street lamp/outdoor/manual/regional custom
  • Gain Control : Auto/Manual
  • Noise Reduction : 3D NR
  • Motion Detection : OFF/ON (4 areas)
  • Region of Interest (RoI) : Yes (4 areas)
  • Smart Illumination : Yes
  • Image Rotation : 0°/90°/180°/270° (Support with 1080p resolution and lower)
  • Mirror : Yes
  • Privacy Masking : 4 areas

  Audio

  • Built-in MIC : Yes
  • Audio Compression : PCM; G.711a; G.711Mu; G.726; G.723

  Alarm

  • Alarm Event : No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion
    detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external
    alarm; SMD; safety exception; light alarm; sound alarm (11 built-in sounds and custom voices importing)

  Network

  • Network : RJ-45 (10/100 Base-T)
  • SDK and API : Yes
  • Protocol : IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
  • Cyber Security : Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509
    certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
  • Interoperability : ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
  • User/Host : 20 (Total bandwidth: 80 M)
  • Storage : FTP; SFTP; Micro SD card (support max. 256 G);NAS
  • Browser
    • IE: IE8 and later
    • Chrome
    • Firefox
  • Safari: Safari 12 and later
  • Management Software : Smart PSS; DSS; DMSS
  • Mobile Phone : IOS; Android

  Port

  • Audio Input : 1 channel (RCA port)
  • Audio Output : 1 channel (RCA port)
  • Alarm Input : 1 channel in: 5mA 3V–5V DC
  • Alarm OutputV1 channel out: 300mA 12V DC

  Power

  • Power Supply : 12V DC/PoE (802.3af)
  • Power Consumption : Basic power consumption: 2.5W (12V DC); 3.0W (PoE)
    Max. power consumption (WDR + H.265 + red and blue
    lights flashing alternately + warm light + sound alarm): 7.3W (12V DC); 8.0W (PoE)

  Environment

  • Operating Conditions  : –40°C to +60°C (–40°F to +140°F)/Less than 95% RH
  • Strorage Conditions : –40°C to +60°C (–40°F to +140°F)
  • Protection Grade : IP67

  Structure

  • Casing : Metal
  • Dimensions : Φ122.0 mm × 110.9 mm (Φ4.8" × 4.4")
  • Net Weight : 754 g (1.7 lb)
  • Gross Weight : 915 g (2.0 lb)
