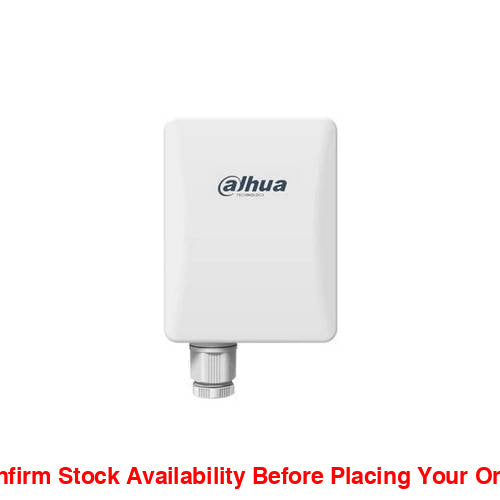

Dahua 5GHz N300 15dBi Outdoor Wireless CPE

Hardware

Sold in Pairs

Yes

Function Slots

1 × RJ-45 10/100/1000 Base-T

Power Supply

100 – 240 VAC

Power Consumption

Full load: 4.5 W

Memory

DDR 64 MB

Indicator Light

1 × PWR light

1 × LAN light

4 × RSSI LEDS

Performance

Wireless Standard

5 GHz: IEEE 802.11a/n

Operating Frequency

5.150 – 5.850 GHz (FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)

Wireless Transmission Rate

802.11 n: 300, 270, 240, 180, 120, 90, 60, 30 Mbps

802.11 a: 54, 48, 36, 24, 18, 12, 9, 6 Mbps

Channel Width

5/10/20/40 MHz

Max. Output Power

CE EIRP:

≤23 dBm@5150-5250 MHz;

≤23 dBm@5250-5350 MHz;

≤27 dBm@5470-5725 MHz;

≤14 dBm@5725-5850 MHz

FCC output power:

≤24 dBm@5150-5250 MHz;

≤24 dBm@5250-5350 MHz;

≤24 dBm@5470-5725 MHz;

≤30 dBm@5725-5850 MHz

Antenna Direction Angle

Horizontal: 30°, vertical: 30°

Transmission Distance

3000 m (9842.52 ft)

PoE

PoE In: 24 V/0.5 A

PoE Out: NA

Function

Operating Mode

AP (WDS)/WAP (TDMA2)/WAP(TDMA3)/Station (WDS/TDMA2/TDMA3)/Wireless client (ARPNAT)

Equipment Management

WEB

Encryption Mode

WPA/WPA2-Personal; WPA/WPA2-Enterprise

Security Mechanism

ACL; user isolation

OFDMA

Yes

MU-MIMO

2 × 2

DFS

Yes

DHCP

Yes

Firmware Update

Web update

Software

DHCP server; SNMP server; NTP client; router advertisement daemon; ping watchdog

General

Operating Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Storage Temperature

–40 °C to +85 °C (–40 °F to +185 °F)

Operating Humidity

5%–95% (RH), non-condensing

Net Weight

0.2 kg(0.44 lb)

Gross Weight

0.4 kg(0.88 lb)

Product Dimensions

130 mm × 97 mm × 37 mm (5.11 × 3.81 × 1.45) (L × W × H)

Packaging Dimensions

174 mm × 135 mm × 80 mm (6.85 × 5.31 × 3.14)(L × W × H)

Protection

IP66

Installation

Bracket mount

Certifications

CE; FCC

Packing List

1 × Device;

2 × Dowel Pin;

1 × Pole Mount Bracket;

1 × Power Cord;

1 × 24 V PoE Power Adapter;

1 × Quick Start Guide
