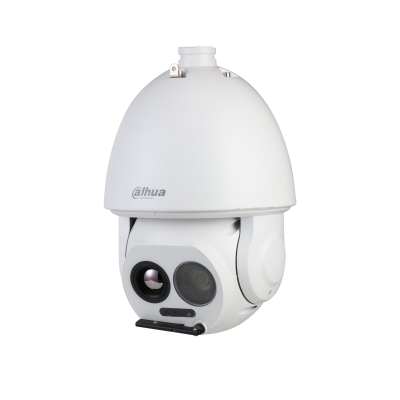

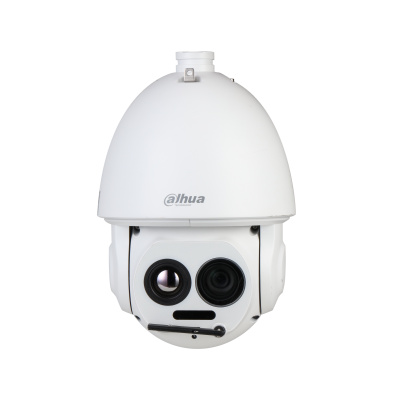

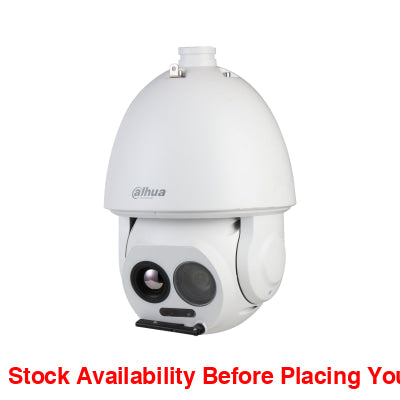

Dahua 4MP Thermal Hybrid Speed Dome 100m - 35mm

General

Appearance

Thermal Network Hybrid Speed Dome Camera

Type

Radiometry

Thermal

Detector Type

Vanadium oxide uncooled focal plane detector

Effective Pixels

640 (H) × 512 (V)

Pixel Pitch

12 μm

Spectral Range

8 μm–14 μm

Sensitivity (NETD)

<35 mK (@f/1.0, 25 Hz, 300 K)

Focal Length

7 mm; 13 mm; 19 mm; 25 mm; 35 mm; 50 mm

Field of View

7 mm: H: 63.8°; V: 51°

13 mm: H: 36.7°; V: 29.4°

19 mm: H: 23.3°; V: 18.6°

25 mm: H: 18.6°; V: 14.8°

35 mm: H: 12.6°; V: 10.1°

50 mm: H: 9.2°; V: 7.3°

Thermal Focus Control

Fixed-focal

Detection Distance①

7mm: Vehicle: 897 m (2,942.91 ft) ;

Human: 292 m (958.01 ft);

13mm: Vehicle: 1,667 m (5,469.16 ft);

Human: 572 m (1,876.64 ft);

19 mm: Vehicle: 2,436 m (7,992.13 ft);

Human: 792 m (2,598.43 ft);

25 mm: Vehicle: 3,205 m (1,0515.09 ft);

Human: 1,042 m (3,418.64 ft);

35 mm: Vehicle: 4,487 m (14,721.13 ft);

Human: 1,458 m (4,783.46 ft);

50 mm: Vehicle: 6,410 m (21,030.18 ft)

Human: 2,083 m (6,833.99 ft);

Recognition Distance②

7mm: Vehicle: 220 m (721.78 ft) ;

Human: 75 m (246.06 ft);

13mm: Vehicle: 409 m (1,341.86 ft);

Human: 139 m (456.04 ft);

19 mm: Vehicle: 598 m (1,961.94 ft);

Human: 204 m (669.29 ft);

25 mm: Vehicle: 786 m (2,578.74 ft);

Human: 268 m (879.27 ft);

35 mm: Vehicle: 1,101 m (3,612.2 ft);

Human: 375 m (1,230.31 ft);

50 mm: Vehicle: 1,572 m (5,157.48 ft);

Human: 536 m (1,758.53 ft);

Identification Distance③

7mm: Vehicle: 111 m (364.17 ft);

Human: 38 m (124.67 ft);

13mm: Vehicle: 206 m (675.85 ft);

Human: 67 m (219.82 ft);

19 mm: Vehicle: 302 m (990.81 ft);

Human: 102 m (334.65 ft);

25 mm: Vehicle: 397 m (1,302.49 ft);

Human: 134 m (439.63 ft);

35 mm: Vehicle: 556 m (1,824.15 ft);

Human: 188 m (616.8 ft);

50 mm: Vehicle: 794 m (2,604.99 ft));

Human: 268 m (879.27 ft)

Note:

①Detection Distance: Detects objects, but cannot recognize their characteristics (objects must cover more than 3.6 pixels of the image).

②Recognition Distance: Classifies objects into general categories, such as human, vehicle (the object must cover more than 14 pixels of the image).

③Identification Distance: Classifies objects into specific categories based on their characteristics, such as engineering truck, car (the object must cover more than 28 pixels of the image).

Digital Detail Enhancement (DDE)

Yes

Thermal Image Stabilization

Electronic Image Stabilization (EIS)

Digital Zoom

24 levels

Thermal AGC

Auto/Manual

Thermal Noise Reduction

2D NR/3D NR

Image Flip

180°

Color Palettes

18 (white hot/black hot/fusion/rainbow/golden autumn/midday/iron red/amber/jade/sunset/icefire/painting/pomegranate/emerald /spring/summer/autumn/winter)

Temperature Measurement

Range

Low temperature mode:

–20 °C (–4 °F) to +150 °C (+302 °F)

High temperature mode:

0 °C (+34 °F) to +550 °C (+1022 °F)

Auto mode

Temperature Measurement

Accuracy

Max. (±2 °C, ±2%)

Operating temperature: –20 °C (–4 °F) to +50 °C (+122

°F)

Temperature Measurement

Mode

Spot: 12

Line: 12

Area: 12

Supports 12 rules simultaneously

Visible

Image Sensor

1/2.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

Pixel

4 MP

Horizontal Definition

Center ≥ 1200 TVL

Edge ≥ 900 TVL

Min. Illumination

Color: 0.01 lux

Black & white: 0.001 lux

0 lux (IR on)

Visible AGC

Auto/Manual

Visible Noise Reduction

2D NR/3D NR

S/N Ratio

≥55 dB

White Balance

Auto; manual; indoor; outdoor; tracking; sodium lamp; street lamp; natural

Defog

Electronic defog

Visible Image Stabilization

Electronic Image Stabilization (EIS)

Electronic Shutter Speed

1 s–1/30,000 s (auto/manual)

BLC

Yes

WDR

Yes

HLC

Yes

Day/Night

Auto (ICR); Color; B/W

Iris Control

DC Auto

Exposure Compensation

Yes

Visible Focus Control

Auto/Semi-auto/Manual

Focal Length

3.95 mm–177.75 mm

Zoom Speed

＜7 s

Close Focus Distance

1 m–10 m (3.28 ft–32.81 ft)

Optical Zoom

45×

Illuminator On/Off Control

Auto/Manual

Illumination Distance

100 m (328.08 ft)

Audio and Video

Video Compression

H.265; H.264M; H.264H; H.264B

Resolution

Thermal:

Main stream: 1280 × 1024; 1280 × 720; 640 × 512;

1280 × 1024 (default);

Sub stream: 640 × 512; 320 × 256; 640 × 512 (default);

Visible:

Main stream: 4MP (2688 × 1520); 4MP (2560 × 1440);

2MP (1920 × 1080); 720p (1280 × 720); D1 (704 × 576);

4MP (2560 × 1440) (default);

Sub stream: 2MP (1920 × 1080); 720p (1280 × 720); D1

(704 × 576); CIF (352 × 288); CIF (352 × 288) (default)

Video Frame Rate

Thermal (50 Hz):

Main stream: 1 fps–25 fps, 25 fps by default

Sub stream: 1 fps–25 fps, 15 fps by default

Visible (50 Hz):

Main stream: 1 fps–50 fps, 50 fps by default

Sub stream: 1 fps–25 fps, 15 fps by default

Thermal (60 Hz):

Main stream: 1 fps–30 fps, 30 fps by default

Sub stream: 1 fps–30 fps, 15 fps by default

Visible (60 Hz):

Main stream: 1 fps–60 fps, 60 fps by default

Sub stream: 1 fps–30 fps, 15 fps by default

Audio Compression

G.711a; G.711mu; AAC

Image Encoding Format

JPEG

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless

Tilt: –10° to +90°

Manual Control Speed

Pan: 0.1°/s to 200°/s

Tilt: 0.1°/s to 120°/s

Preset Speed

Pan: 240°/s

Tilt: 200°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

2

Power-off Memory

Yes

Privacy Masking

4 blocks

Idle Motion

Preset; pattern; tour; pan; scan

Function

Two-way Audio

Yes

Network Protocol

HTTP; HTTPS; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS;

UPnP; NTP; Multicast; SFTP; 802.1x

Region of Interest (RoI)

Yes

Regional Focus

Yes

Storage

FTP; Micro SD card (optional)

Interoperability

ONVIF; CGI; DaHua SDK

Browser

IE: IE8 and later (including the browsers with IE kernel,

such as 360 Explorer, Sougou Explorer)

Chrome: 42 and earlier

Firefox: 42 and earlier

User/Host

Up to 20 (total bandwidth: 64 MB)

Security

Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access

User Management

Up to 20 users; supports multi-level user permissions (2 levels): management group and user group

Malfunction Detection

Network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Micro SD Card (Max.)

512 GB

IVS

IVS

Yes

Intelligence

Cold/Hot Spot Trace

Yes

IVS (Perimeter Protection)

Yes. Supports tripwire and intrusion.

Target Distinction

Human/Vehicle Classification

Target Tracking

Yes

Smoke Detection

Yes

Smoke Detection Distance

4,000 m (13,123.36 ft)

Boat Tracking

Yes

Port

Analog Output

1 × CVBS output; BNC port

Network Port

1 × RJ-45 (10/100 Base-T)

Alarm Input

7

Alarm Output

2

Audio Input

1

Audio Output

1

RS-485

1

Power

Power Supply

36 VDC ± 50%, Hi-PoE

Power Consumption

Basic: ≤21 W

Max: ≤40 W

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–30 °C to +70 °C (–22 °F to +158 °F)

Physical Characteristics

Protection

IP66

Product Dimensions

Φ240.0 mm × 382.0 mm (Φ9.45" × 15.04")

Packaging Dimensions

319.0 mm × 319.0 mm × 521.0 mm (12.56" × 12.56" ×

20.51") (L × W × H)

Net Weight

≤8 kg (17.64 lb)

Gross Weight

≤10 kg (22.05 lb)

Lens

Included

Reliability

Surge protection: 6 kV

Air discharge of 15 kV

Contact discharge of 8 kV

Anti-corrosion Level

Basic Protection

Certification

Certifications

CE

Temperature Measurement Distance

Focal Length

Min. Distance

Max. Distance

7 mm

1 m (3.28 ft)

6.5 m (21.33 ft)

13 mm

1 m (3.28 ft)

10 m (32.81 ft)

19 mm

3 m (9.84 ft)

16 m (52.49 ft)

25 mm

4 m (13.12 ft)

21 m (68.90 ft)

35 mm

6 m (19.69 ft)

30 m (98.43 ft)

50 mm

9 m (29.53 ft)

42 m (137.80 ft)

Note:

The table displays the measured distances obtained from using the target size 0.1 m × 0.1 m for testing in an environment where the temperature is 23 °C and the relative humidity is below 60%.

The table is for reference only. The distances within it are subject to actual conditions including atmospheric conditions, target size, the installation site, and more.
