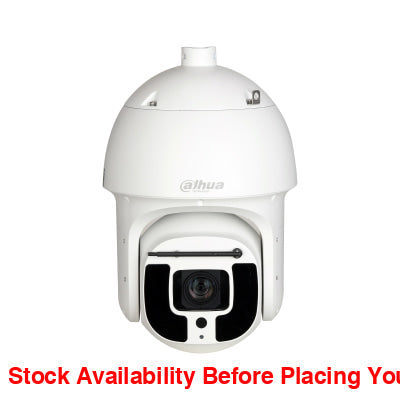

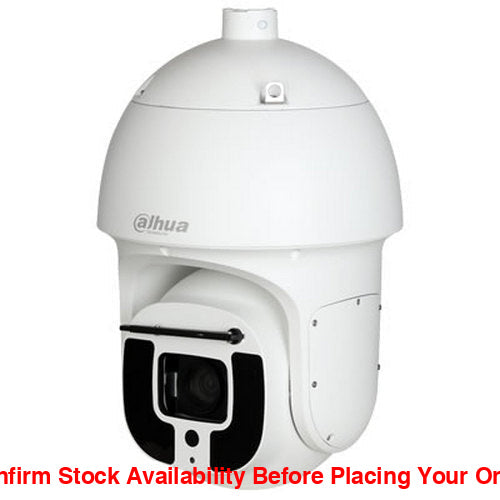

Dahua 4MP PTZ 500m IR 40x Optical Zoom

Camera

Image Sensor

1/1.8" CMOS

Pixel

4 MP

Max. Resolution

2560 (H) × 1440 (V)

ROM

4 GB

RAM

1 GB

Electronic Shutter Speed

1/1 s–1/30,000 s

Scanning System

Progressive

Min. Illumination

Color: 0.001 lux@F1.6
B/W: 0.0001 lux@F1.6
0 lux (IR light on)

Illumination Distance

500 m (1,640.41 ft) (IR)

Illuminator On/Off Control

Zoom Prio; Manual; Auto; Off

Illuminator Number

10 (IR)

Wiper

Smart wiper

Lens

Focal Length

5.6 mm–223 mm

Max. Aperture

F1.6–F4.9

Field of View

H: 63.9°–2.1°; V: 37.3°–1.2°; D: 71.2°–2.4°

Optical Zoom

40×

Focus Control

Auto; semi-auto; manual

Close Focus Distance

1 m–5 m (3.28 ft–16.40 ft)

Iris Control

Auto

DORI Distance

Detect

Observe

Recognize

Identify

3,034.5 m (9,955.71 ft)

1,198.6 m (3,932.41 ft)

606.9 m (1,991.14 ft)

303.4 m (995.41 ft)

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –30° to +90°, auto flip 180°

Manual Control Speed

Pan: 0°/s–180°/s
Tilt: 0°/s–100°/s

Preset Speed

Pan: 0°/s–180°/s
Tilt: 0°/s–100°/s

Preset

300

Tour

8 (up to 32 presets per tour)

Pattern

5

Scan

5

Power-off Memory

Yes

Idle Motion

Preset; Pattern; Tour; Scan

PTZ Protocol

DH-SD
Pelco-P/D (Auto recognition)

Intelligence

Video Metadata

Motor vehicle, non-motor vehicle, face, and human body detection; bounding box; optimization; capturing pictures; uploading high-quality face snapshots
Motor vehicle attributes: License plate, plate color, vehicle type, vehicle color, vehicle logo, vehicle model/year, sun visor, seatbelt, smoking, calling, ornament, and annual inspection sticker

IVS (Perimeter Protection)

Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking

Face Detection

Supports face detection, face bounding box, optimization, capturing snapshots, uploading high-quality face snapshots, and enhancing face images. Attribute extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots

Auto Tracking

Yes

SMD

Yes

Video

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; H.264B;

H.264H; MJPEG (Sub Stream)

Streaming Capability

3 streams

Resolution

4M (2560 × 1440); 3M (2048 × 1536); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Video Frame Rate

Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps)
Sub stream 1: D1/VGA/CIF (1–25/30 fps)
Sub stream 2: 1080p/1.3M/720p (1–25/30 fps)

Bit Rate Control

CBR/VBR

Video Bit Rate

H264: 96 Kbps–14,848 Kbps
H265: 38 Kbps–8,960 Kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

WDR

140 dB

HLC

Yes

White Balance

Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp

Gain Control

Auto; manual

Noise Reduction

2D NR; 3D NR

Motion Detection

Yes

Region of Interest (RoI)

Yes

Defog

Electronic

Digital Zoom

16×

Image Rotation

180°

Privacy Masking

Up to 24 areas can be set, with up to 8 areas in the same view;
multiple colors available

S/N Ratio

≥ 55 dB

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723

Network

Network Port

RJ-45 (10/100 Base-T)

Network Protocol

HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;Qos;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;NFS

Interoperability

ONVIF(Profile S&G&T);CGI;SDK

Streaming Method

Unicast/Multicast

User/Host

20 (total bandwidth: 64 M)

Storage

Micro SD card (512 GB); FTP/SFTP; NAS

Browser

IE 9 and later versions
Chrome 42 and later versions
Firefox 50 and later versions
Safari 10 and later versions

Mobile Client

iOS; Android

Port

RS-485

1 (baud rate: 1,200 bps–9,600 bps)

Audio Input

1 channel (LINE IN, bare wire)

Audio Output

1 channel (LINE OUT,bare wire)

Alarm Linkage

Capture; preset; tour; pattern; recording; alarm digital input; audio; send email

Alarm Event

Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card status detection; memory space detection; power exception detection

Alarm I/O

7/2

Audio I/O

1/1

Power

Power Supply

36 VDC/2.23 A ± 25%; Hi-PoE

Power Consumption

Basic: 17 W
Max.: 32 W (illuminator + heater + PTZ)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤ 95%

Protection

IP67, TVS 8000V lightning proof; surge protection; voltage transient protection

Structure

Product Dimensions

415.9 mm × Φ262.0 mm (16.37" × Φ10.31")

Net Weight

8.5 kg (18.74 lb)

Gross Weight

13.1 kg (28.88 lb)
