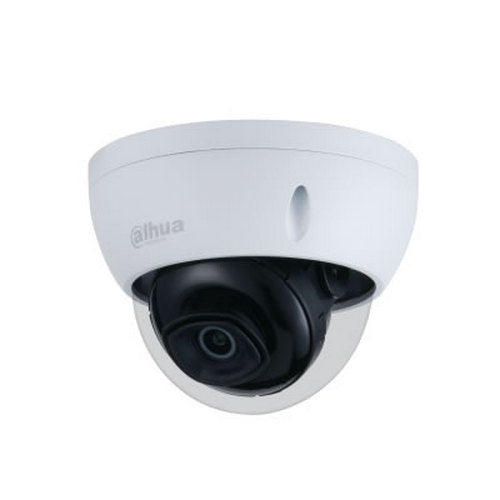

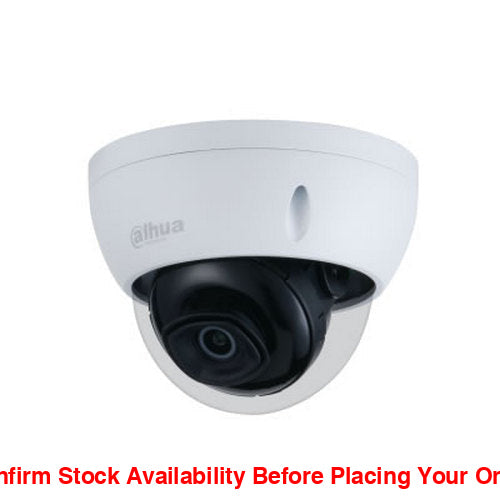

Dahua 2MP IR Mini Dome Network Camera 3.6mm
- 2MP, 1/2.7” CMOS image sensor, low illuminance, high image definition
- Outputs 2MP (1920 × 1080)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max IR distance: 30m
- ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tampering, no SD card, SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
- Supports max. 256 GB Micro SD card
- 12V DC/PoE power support
- IP67, IK10 protection grade
| Specification | Details |
|---|---|
| Image Sensor | 1/2.7” 2Megapixel progressive CMOS |
| Effective Pixels | 1920 (H) × 1080 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto / Manual 1 / 3 s–1 / 100000 s |
| Min. Illumination | 0.005 Lux @ F1.6 |
| IR Distance | 30 m (98.43 ft) |
| IR On/Off Control | Auto / Manual |
| IR LEDs Number | 3 |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–65° Rotation: 0°–355° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm, 3.6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Pan: 110.0° / Tilt: 59.0° / Diagonal: 132.0° 3.6 mm: Pan: 91.0° / Tilt: 48.0° / Diagonal: 109.0° |
| Iris Type | Fixed aperture |
| Close Focus Distance | 2.8 mm: 0.6 m (1.97 ft) 3.6 mm: 1.1 m (3.61 ft) |
| DORI Distance | 2.8 mm: Detect: 37.3 m (122.38 ft) Observe: 14.9 m (48.88 ft) Recognise: 7.5 m (24.61 ft) Identify: 3.7 m (12.14 ft)
3.6 mm: |
| Smart Event | |
| General IVS Analytics | Tripwire, intrusion |
| Video | |
| Video Compression | H.265, H.264, H.264B, MJPEG |
| Smart Codec | Yes |
| Video Frame Rate | Main stream: 1920 × 1080 (1 fps-25 / 30 fps) Sub stream: 704 × 576 (1 fps-25 fps), 704 × 480 (1 fps-30 fps) |
| Stream Capability | 2 streams |
| Resolution | 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576 / 704 × 480), VGA (640 × 480), CIF (352 × 288 / 352 × 240) |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps, H.265: 12 kbps–6144 kbps |
| Day/Night | Auto(ICR) / Colour / B / W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto, natural, street lamp, outdoor, manual, regional custom |
| Gain Control | Auto, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF / ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart IR | Yes |
| Image Rotation | 0° / 90° / 180° / 270° (Supports 90° / 270° with 1080p resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, 802.1x, Bonjour |
| Interoperability | ONVIF(Profile S / Profile G / Profile T), CGI, P2P, Milestone, Genetec |
| User/Host | 20 |
| Edge Storage | Dahua Cloud, FTP, SFTP, Micro SD Card (support max. 256 GB), NAS |
| Browser | IE, Chrome, Firefox |
| Management Software | Smart PSS, DSS, DMSS |
| Mobile Phone | IOS, Android |
| Certification | |
| Certifications | CE-LVD: EN60950-1, CE-EMC: Electromagnetic Compatibility Directive 2014 / 30 / EU, FCC: 47 CFR FCC Part 15, Subpart B, UL / CUL: UL60950-1, CAN / CSA C22.2 No.60950-1-07 |
| Power | |
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 5W |
| Environment | |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F) / less than ≤ 95% RH |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP67, IK10 |
| Structure | |
| Casing | Metal |
| Dimensions | 81 mm × Φ109.9 mm (3.19″ × Φ4.33″) |
| Weight | Net: 0.350 kg (0.77 lb), Gross: 0.481 kg (1.06 lb) |
