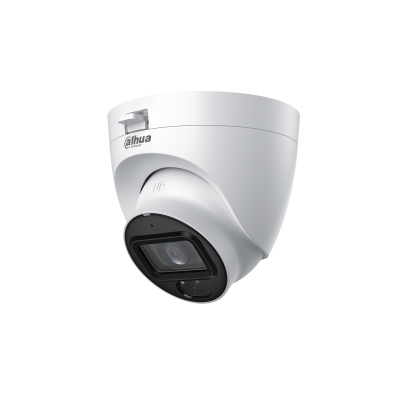

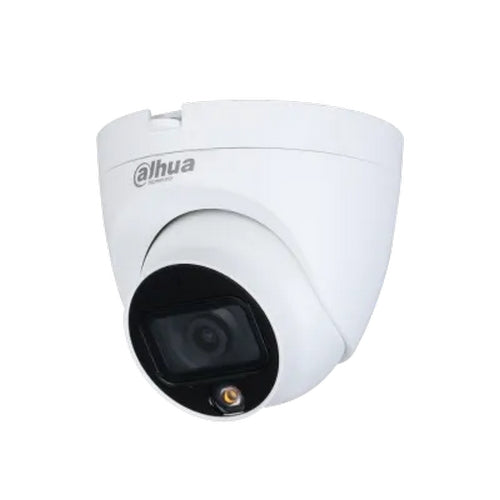

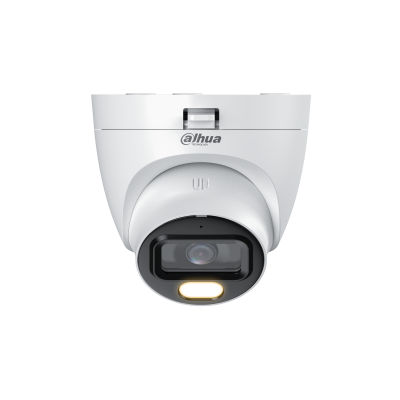

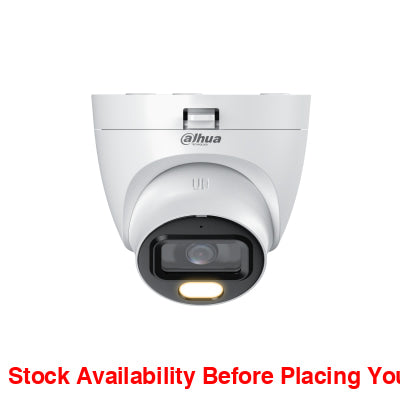

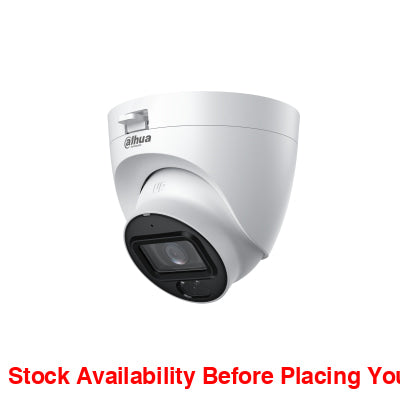

• Dahua 2MP Eyeball 20m IR 2.8mm
1 3

Dahua 2MP Eyeball 20m IR 2.8mm

Dahua 2MP Eyeball 20m IR 2.8mm

R 679.00 ZAR
R 679.00 ZAR
Sale Sold out
Shipping calculated at checkout.
  • Master Card
  • Visa Card
  • Visa Electron
  • Maestro cardMaestro Card
  • Instant Eft Instant Eft
  • MobiCredMobiCred

DH-HAC-HDW1239TLQP-IL-A_2.8mm

Dahua 2MP Eyeball 20m IR 2.8mm

> Smart Dual Light

> Max. 30 fps@1080p

> Smart Light+

> 30 m illumination distance

> Super Adapt, 130 dB true WDR, 3D NR

> Built-in Mic

> 3.6 mm fixed lens (2.8 mm optional)

> CVI/CVBS/AHD/TVI switchable

> IP67, 12 VDC

Camera

Image Sensor



2 MP CMOS

Max. Resolution



1920 (H) × 1080 (V)

Scanning System



Progressive

Electronic Shutter Speed



PAL: 1/25 s–1/100,000 s

NTSC: 1/30 s–1/100,000 s

Min. Illumination



0.001 lux@F1.0 (Color, 30 IRE)

0.0001 lux@F1.0 (B/W, 30 IRE)

0 lux (Illuminator on)

S/N Ratio



>65 dB

Illumination Distance



30 m (98.43 ft)

Illuminator On/Off Control



Auto/Manual

Illuminator Number



2 (Multi-core light)

Angle Adjustment



Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

Lens

Lens Type



Fixed-focal

Lens Mount



M12

Focal Length



3.6 mm; 2.8 mm

Max. Aperture



F1.0

Field of View



2.8 mm: H: 101.8°; V: 54.4°; D: 122.1°

3.6 mm: H: 84.2°; V: 45.3°; D: 98.9°

Iris Control



Fixed

Close Focus Distance



2.8 mm: 1.1 m (3.61 ft)

3.6 mm: 1.6 m (5.25 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

45.6 m

( 149.61 ft)

18.2 m

( 59.71 ft)

9.1 m

( 29.86 ft)

4.6 m



( 15.09 ft)

3.6 mm

55.6 m

( 182.41 ft)

22.2 m

( 72.83 ft)

11.1 m

( 36.42 ft)

5.6 m



( 18.37 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Video Frame Rate



CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;

AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;

TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;

CVBS: PAL: 960H; NTSC: 960H

Resolution



1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night



Auto(ICR)/Color/B/W

BLC



BLC; HLC; WDR

WDR



130 dB

White Balance



Auto;Area white balance

Gain Control



Auto/Manual

Noise Reduction



3D NR

Motion Detection



Yes

Illumination Mode



Smart IR&WL; WL Mode; IR Mode

Mirror



Yes

Privacy Masking



Off/On (8 areas, rectangle)

Certification

Certifications



CE-LVD: EN 62368-1;

CE-EMC: EN 55032; EN 55035;

Audio

Built-in Mic



Yes

Port

Video Output



Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply



12 VDC ± 30%

Power Consumption



Max 3.96 W (12 VDC, LED on)

Environment

Operating Temperature



–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity



<95% (RH), non-condensing

Storage Temperature



–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity



<95% (RH), non-condensing

Protection



IP67

Anti-corrosion Level



Basic Protection

Structure

Casing Material



Dome (metal + plastic) + plastic enclosure

Product Dimensions



Φ97.1 mm × 94.2 mm (Φ3.82" × 3.71")

Net Weight



0.22 kg (0.49 lb)

Gross Weight



0.31 kg (0.68 lb)

Installation



Wall mount; ceiling mount; vertical pole mount
