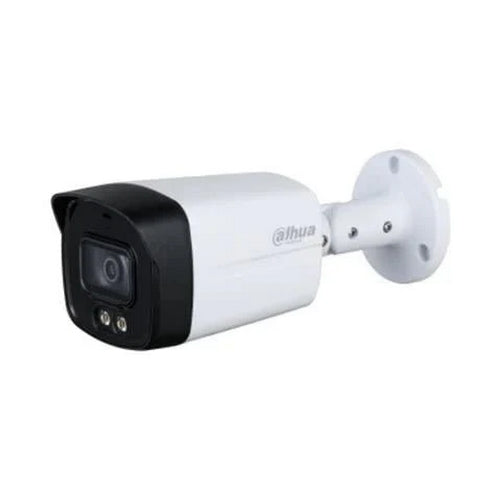

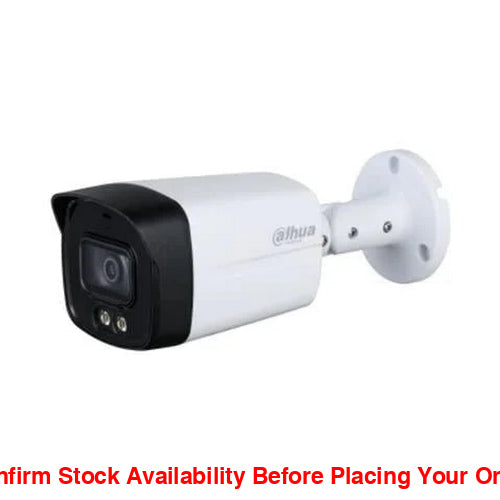

Dahua 2MP Bullet 40m IR 3.6mm

Dahua 2MP Bullet 40m IR 3.6mm

• Smart Dual Illuminators
• Max. 30 fps@1080p
• 40 m illumination distance
• Super Adapt
• 130 dB true WDR, 3D NR
• Built-in MIC (-A)
• 3.6 mm fixed lens (2.8 mm optional)
• CVI/CVBS/AHD/TVI switchable
• IP67, 12 VDC

• Camera

  • Pixel : 2 MP
  • Image Sensor : 2 MP CMOS
  • Max. Resolution : 1920 (H) × 1080 (V)
  • Scanning System : Progressive
  • Electronic Shutter Speed
    • PAL: 1/25 s–1/100,000 s
    • NTSC: 1/30 s–1/100,000 s
  • Min. Illumination
    • 0.001 lux@F1.6 (Color, 30 IRE)
    • 0.0001 lux@F1.6 (B/W, 30 IRE)
    • 0 lux (Illuminator on)
  • S/N Ratio : >65 dB
  • Illumination Distance
    • IR: 40 m (131.23 ft)
    • Warm light: 40 m (131.23 ft)
  • Illuminator On/Off Control : Auto/Manual
  • Illuminator Number
    • 2 (IR light)
    • 2 (Warm light)
  • Pan/Tilt/Rotation Range
    • Pan: 0°–360°
    • Tilt: 0°–90°
    • Rotation: 0°–360°

  Lens

  • Lens Type : Fixed-focal
  • Lens Mount : M12
  • Focal Length : 3.6 mm
  • Max. Aperture : F1.6
  • Field of View : 3.6 mm: H: 86°; V: 46°; D: 101°
  • Iris Control : Fixed
  • Close Focus Distance: 3.6 mm: 1.1 m (3.61 ft)



  Video

  • Video Frame Rate

    • CVI:
    • PAL: 1080p@25 fps;
    • NTSC: 1080p@30 fps;
    • AHD:
    • PAL: 1080p@25 fps;
    • NTSC: 1080p@30 fps;
    • TVI:
    • PAL: 1080p@25 fps;
    • NTSC: 1080p@30 fps;
    • CVBS:
    • PAL: 960 × 576H;
    • NTSC: 960 × 480H
  • Resolution : 1080p (1920 × 1080); 960H (960 × 576/960 × 480)
  • Day/Night : Auto (ICR)/Color/B/W
  • BLC : BLC; HLC; WDR
  • WDR : 130 dB
  • White Balance : Auto; Area white balance
  • Gain Control : Auto/Manual
  • Noise Reduction : 3D NR
  • Smart Illumination : Yes
  • Mirror : Off/On
  • Privacy Masking : Off/On (8 areas, rectangle)
  • Illuminator : Smart IR&WL; WL Mode; IR Mode
