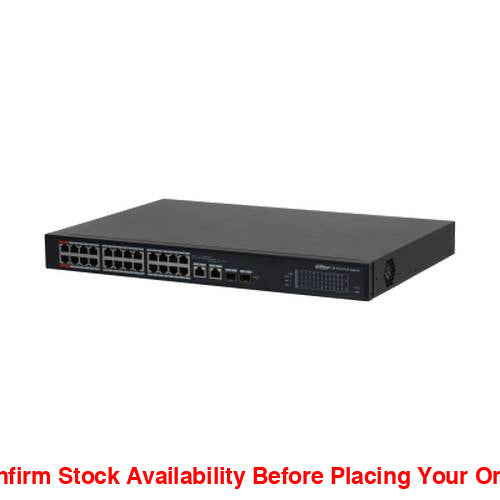

Dahua 26 Port Cloud Managed Switch

Hardware

Included Power Adapter

Yes

PoE

Yes

Ethernet Port

24

Ethernet Port Speed

10/100 Mbps

Optical Port Uplink Speed

1 Gbps

Description of Function Slots

Port 1-24: 24 × 10M/100M Base-T (PoE)

Port 25-26: 2 × 10M/100M/1000M Base-T (uplink)(combo)

Port 25-26: 2 × 1000M SFP (uplink)(combo)

Power Supply

100–240 VAC, 50/60 Hz, 2 A

Operating Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Operating Humidity

5%–95% (RH), non-condensing

Storage Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Storage Humidity

5%–95% (RH), non-condensing

Power Consumption

Idling: ≤5 W
Full: 360 W

Performance

MTBF

337,713 h

Switching Capacity

8.8 Gbps

Packet Forwarding Rate

6.54 Mpps

Packet Buffer Size

4 Mbit

MAC Table Size

16K

PoE

PoE Protocol

IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt

PoE Power

Port 1-2≤90W;

Port 3-24≤30W;
Total ≤360 W

PoE Power Consumption Management

Yes

PoE Pin Assignment

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)

Long Distance PoE Transmission

Yes

General

Statics Protection

Air discharge: 8 kV
Contact discharge: 6 kV

Lighting Protection

Common mode: 4 kV
Differential mode: 2 kV

Net Weight

3.50 kg (7.72 lb)

Gross Weight

4.60 kg (10.14 lb)

Product Dimensions

440 mm × 300 mm × 44 mm
(17.32" × 11.81" × 1.73") (L × W × H)

Packaging Dimensions

528 mm × 412 mm × 112 mm
(20.79" × 16.22" × 4.41") (L × W × H)

Certifications

CE; FCC

Transmission Performance:

Switch power supply voltage 53V.

CAT5E/CAT6. Max. DC resistance < 10Ω/100m

Cable(m)

Load Capacity(W)

Bandwidth(Mbps)

IEEE802.3bt 90W

100

71.3

100

150

62

10

200

51

10

250

40

10

Hi-PoE 60W

100

53

100

150

50

10

200

47

10

250

37

10

IEEE802.3at 30W

100

25.5

100

150

25.5

10

200

25.5

10

250

25.5

10
