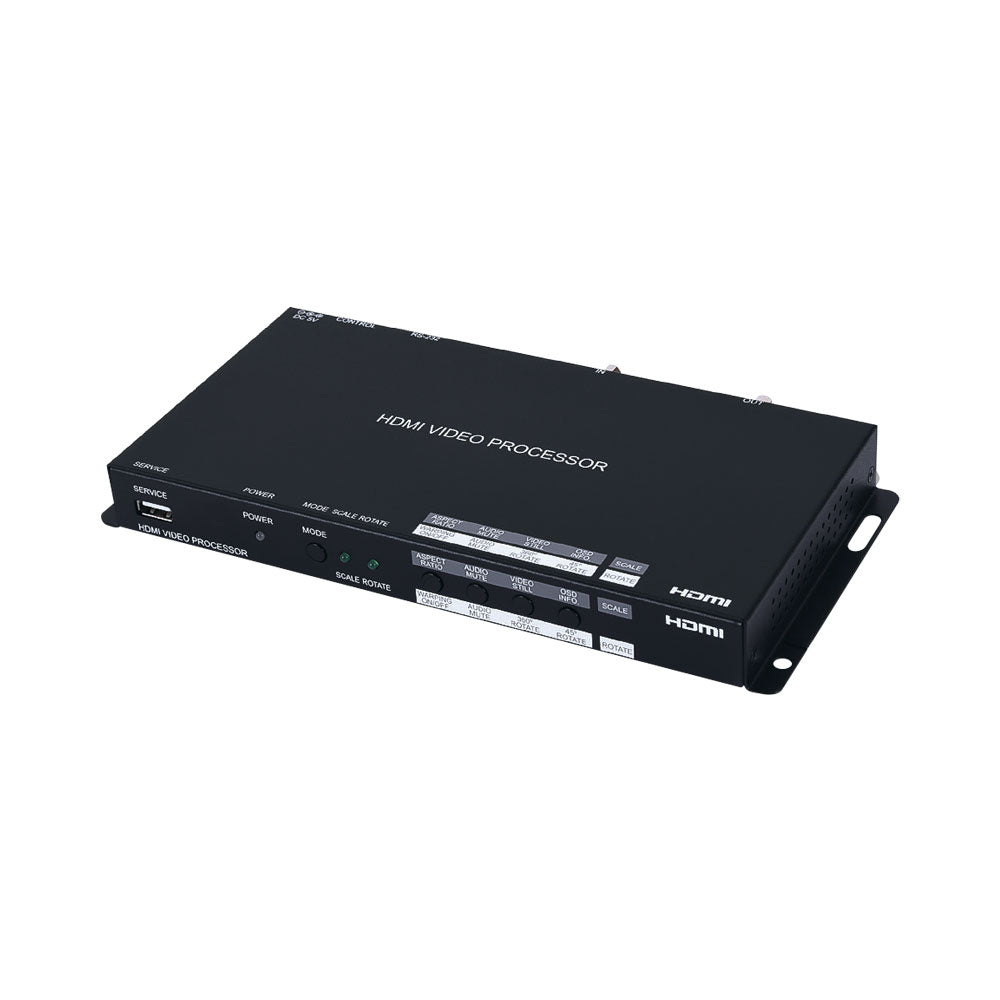

CYP CLUX-1HLR 1080P HDMI VIDEO WALL ROTATION PROCESSOR

FEATURES • 1080p HDMI Processing - Supports Full HD resolution for clear and detailed video output • Video Wall Scaling - Splits a single source across multiple displays for large-format viewing • Rotation Function - Supports 90°, 180° and 270° rotation for flexible display orientation • Advanced Rotation Mode - Enables horizontal and vertical warping with zoom and full 360° rotation in 1° increments • Scaler Mode Controls - Supports video mirror, flip and freeze functions • Audio Pass-Through Support - Supports LPCM 2.0, 5.1 and 7.1, Bitstream and HD Bitstream formats • Image Adjustment Controls - Fine-tune contrast, brightness, hue, sharpness and aspect ratio • Custom EDID Management - Ensures optimal compatibility between source and display devices • Scalable Video Wall Expansion - Combine multiple units via HDMI splitter or matrix for larger installations • WYSIWYG Software Control - Graphical PC software enables easy visual layout and configuration • Flexible Control Options - Front panel with OSD, plus Telnet, RS232 and PC software control SPECIFICATIONS • Input Port: 1× HDMI • Output Port: 1× HDMI • Control I/O: 1× RS232, 1× LAN • HDMI Compliance: HDMI 1.3 • HDCP Compliance: 1.4 • Input Signal: 1920×1080 @60Hz 12-bit YUV 4:4:4 • Output Signal: 1920×1080 @60Hz 12-bit YUV 4:4:4 • Maximum Input Resolution: 1920×1200 @60Hz • Maximum Output Resolution: 1920×1200 @60Hz • Power Supply: 5V 2.6A DC • Power Consumption: 5.9W • Chassis Material: Steel • Colour: Black • Dimensions: 231.5 × 25 × 117mm • Weight: 652g
