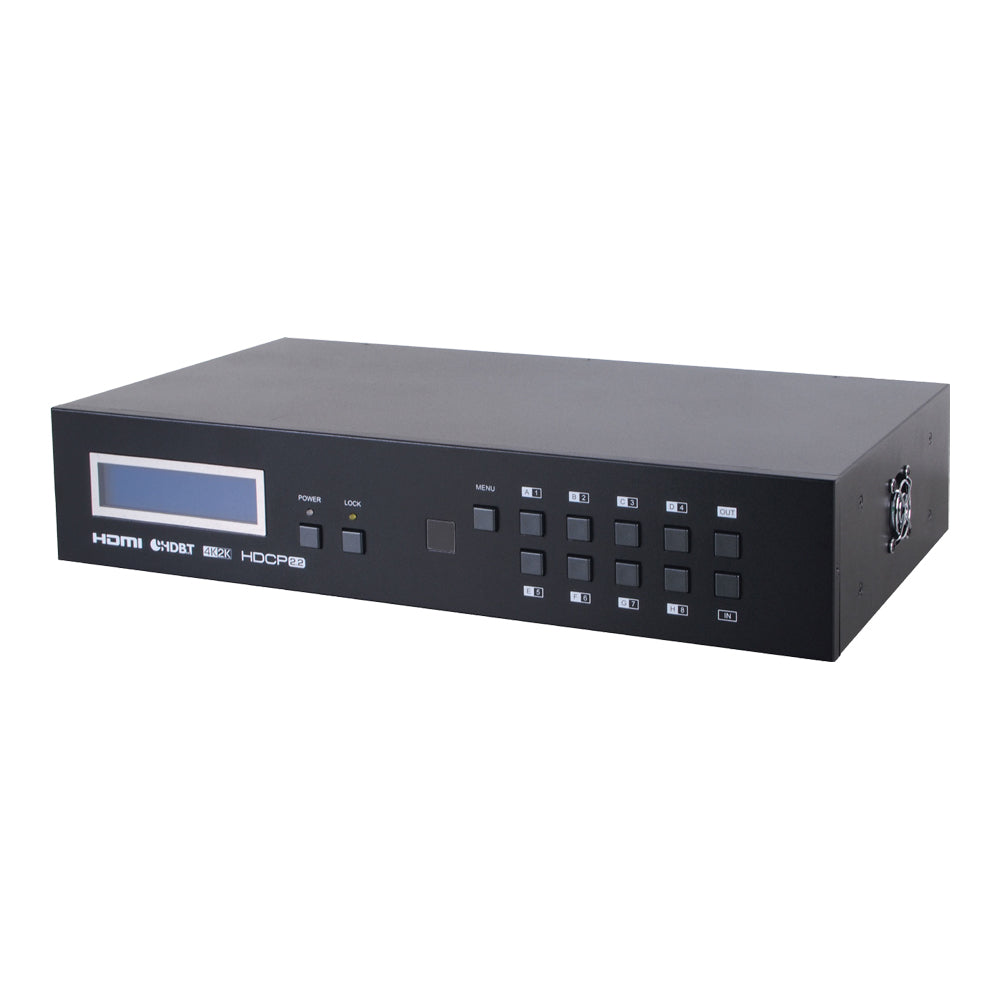

CYP CMPRO-UA8H8CVPL 8×8 HDMI 4K OVER CAT6 MATRIX WITH 24V POC AND HDCP 2.2

FEATURES • 8×8 HDMI Matrix Switching - Route eight HDMI sources to eight independent displays • 4K Support - Supports resolutions up to 4K2K with HDCP 2.2 compliance • Long-Distance Distribution - Supports transmission distances up to 60m • 24V PoC Support - Powers compatible receivers directly through the LAN cable • Multi-Channel Audio Support - Compatible with LPCM, Dolby TrueHD and DTS-HD Master Audio • Flexible Control Options - Supports RS232, Telnet, WebGUI, IR remote and front panel control • 3D Signal Support - Supports 3D video signal bypass • Bi-directional IR Control - Enables remote source and display device management • Network Management - Integrated LAN control for remote system administration SPECIFICATIONS • HDMI Inputs: 8× HDMI • Input Ports: 8× HDMI, 9× IR (3.5mm), 1× RS-232 (9-Pin D-Sub), 1× Control (RJ45), 1× USB (Service only) • CAT Outputs: 8× CAT5e/6/7 Outputs • Video Bandwidth: 300MHz / 9Gbps • Maximum Resolution: 4K 3840×2160 @60Hz (YUV 4:2:0) • HDCP Support: HDCP 2.2 • Transmission Distance: up to 60m • Audio Support: LPCM 2/5.1/7.1CH, Dolby Digital, Dolby TrueHD and DTS-HD Master Audio • IR Frequency: 30~50kHz • Control Interfaces: RS232, Telnet, WebGUI, IR and Front Panel • ESD Protection - ±8kV (Air-Gap Discharge), ±6kV (Contact Discharge) • Power Supply: 24V 6.25A DC • Power Consumption: 89W • Chassis Material: Metal • Colour: Black • Dimensions: 438 × 256.7 × 92mm • Weight: 4.6g • Operating Temperature: 0~40°C • Compatible with CYP CH-1527RXPL HDBaseT Receiver for complete HDMI over CAT distribution systems.
