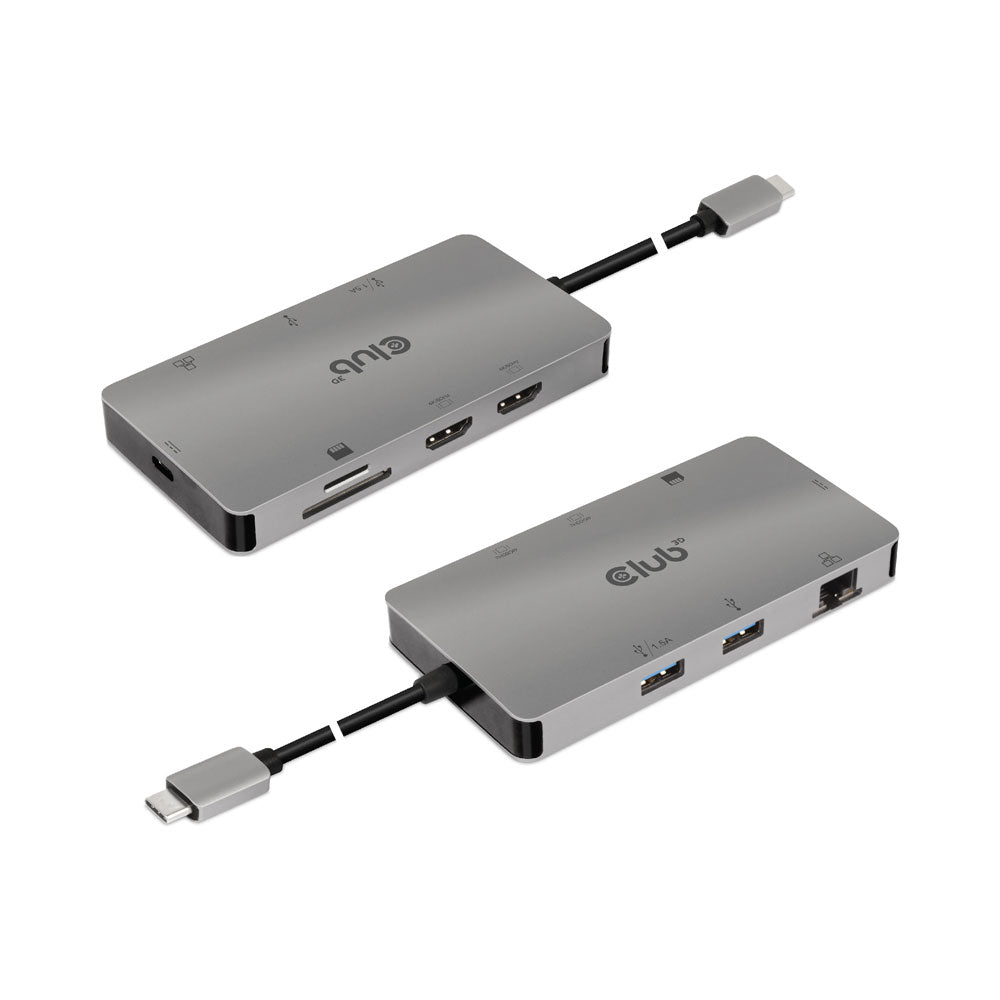

CLUB3D CSV-1593 USB3.2 TYPE-C 8-IN-1 PORT REPLICATOR WITH DUAL HDMI AND 100W PD CHARGING

FEATURES • Upstream: - USB3.2 Gen1 Type-C Male (Connect to host) - Supports DP1.4 Alt Mode, with bandwidth max - 2-lanes 16.2Gbps (8.1Gbps per lane), downward compatible with DP1.2 Alt mode - Supports DSC - Note: To get max bandwidth, the host should support DP1.4 Alt mode with DSC format • Downstream: 2× HDMI Supports: - HDMI max - 4K @60Hz, 4:4:4, 8-bit with 18Gbps bandwidth - Support Dual max - 4K @30Hz under MST mode (Windows System) - Support Dual max - 4K @60Hz under SST mode (Mac System ONLY) - Support 8/10/12-bit Colour depth output - Support Output pixel format RGB4:4:4 / YCbCr4:4:4 / YCbCr4:2:2 / YCbCr420 - Support HDCP2.2 and HDCP1.4 - Note: When connecting a DP1.4 Alt mode supported host, the max resolution of HDMI is 4k @60Hz (dual 4K @30Hz) When connecting a DP1.2 Alt mode supported host, the max resolution of HDMI is 4k @30Hz (dual 1080p @60Hz) due to bandwidth limitation • USB3.2 Gen1 Type-A • 1× USB3.2 Type-A port supports BC1.2 with max • 7.5W (5V 1.5A) downstream charging, 1× USB Type-A share max • 8W (5V 1.6A) downstream charging Max • 5Gbps bandwidth per USB Type-A port • SD/Micro SD • Supports Secure Digital v3.0 UHS-I (Ultra High Speed): SDR12 (12.5Mbyte/s) / SDR25(25Mbyte/s) / SDR50(50Mbyte/s) / DDR50(50Mbyte/s) / SDR104(104Mbyte/s) • Allows 2× card slots to work simultaneously • RJ45 Gigabit Ethernet • USB3.2 Gen1 Type-C Female (for PD Charging) • Supports PD Charging 100W (20V 5A) • Support for Fast Role Swap of PD3.0, the connected device will not get disconnected while plugging in and out PD Adapter - 15W is dedicated to the functioning of this product, the balance of power (max • 85W) will be passed to charge for the host INPUT: • USB3.2 Gen1 Type-C Male (Connect to host) OUTPUT: • 2× HDMI Female • 2× USB3.2 Gen1 Type-A Female • 1× SD Card Slot • 1× Micro SD Card Slot • 1× RJ45 jack • 1× USB3.2 Gen1 Type-C Female SPECIFICATIONS Cable Length Approx.: 14cm Replicator Dimensions: 11.5 × 5.9 × 1.42cm Product Weight: 116g Total Weight: 122g Standards: Meets ROHS, FCC and CE EMI Requirements
