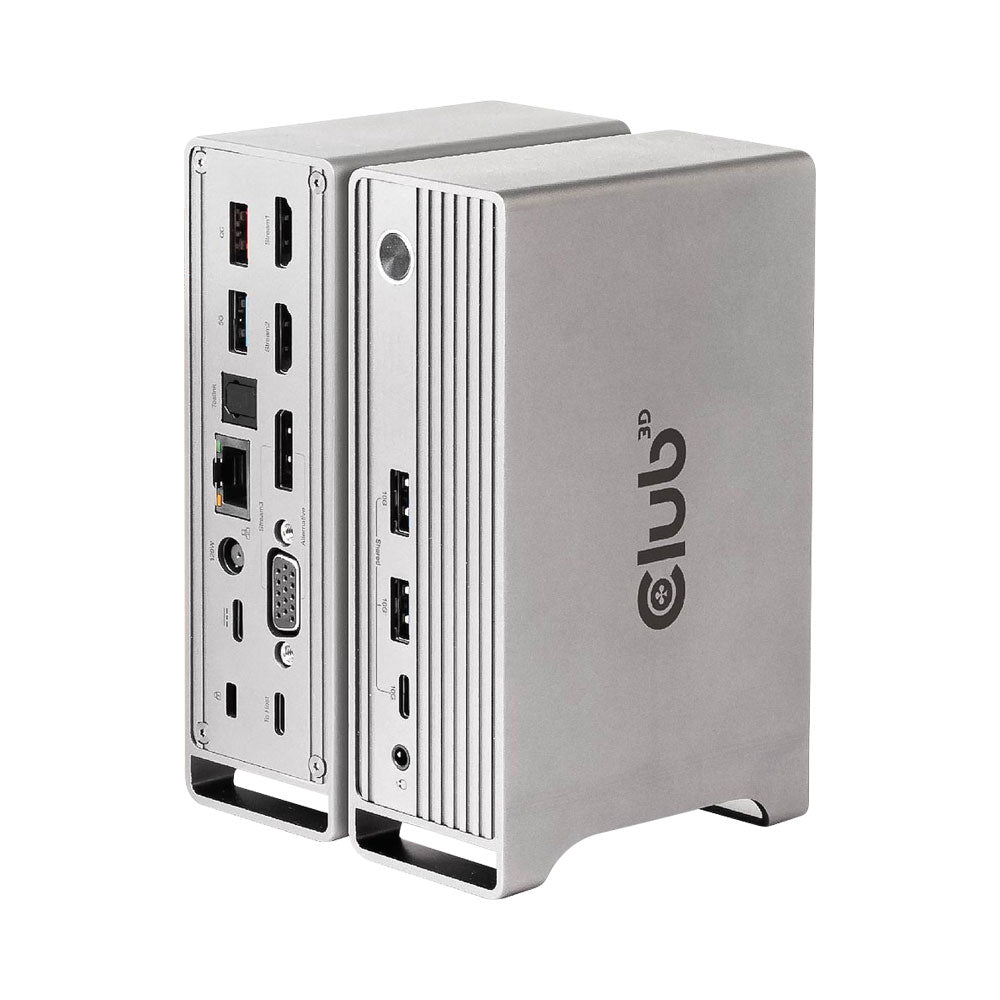

CLUB3D CSV-1564W65 USB GEN1 TYPE-C TRIPLE DISPLAY DYNAMIC PD CHARGING DOCK

FEATURES • Supports Output through MST up to 3 displays (2x HDMI plus VGA or 2x HDMI plus DisplayPort) • DisplayPort and VGA are alternate (DisplaPort has priority over VGA) • When 3 displays are connected - 16.2Gbps bandwidth will be shared • Single Display Support - HDMI max • 4K @60Hz, DisplayPort max • 4K @60Hz, VGA max • 1920 x 1200 @60Hz • DisplayPort and HDMI supports RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2, deep colour 8/10-bit, HDR, HDCP2.2 & 1.4 • DisplayPort supports DP++ which enables to connect a passive DisplayPort to HDMI port to connect HDMI display • Gigabit Ethernet • USB3.2 Gen2 with max • 10Gbps data transfer • Digital audio with max • 96KHz/24-bit sampling rate • Type-C female supports max • 100W PD Charging with fast role swap of PD3.0, supports smart power which allows to distribute power according to actual consumption of the connected devices • Max • 120W power supply from DC Adapter, supports smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W
