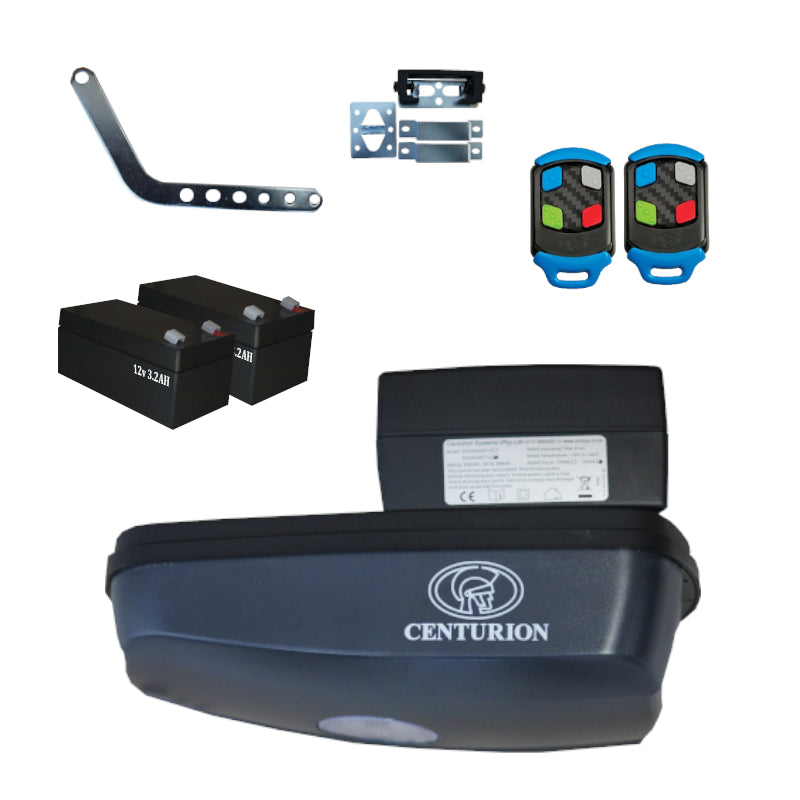

Centurion SDO4 T10 Smart Motor

Centurion SDO4 T10 Smart Motor

R 3,188.00 ZAR
R 3,188.00 ZAR
Sale Request A Quote On WhatsApp button
Taxes included. Shipping calculated at checkout.

SDO4-T10-SM
  • *Please Confirm Stock Availability Before Placing Your Order*
  • Product images Are for Illustrative Purposes Only
  • Honesty And Satisfaction Guaranteed
  • Secure & Safe Online Payments

Centurion SDO4 T10 Smart Motor ideal for garage doors around 12 Square meters.

Excludes: Centurion SDO4 SMART Track

Features:
Connecting you to convenience with smartphone integration.
Redefining the installation experience with the easiest and most intuitive electronic and mechanical commissioning of any garage motor in the SDO4’s class.
Always-on reliability.
Advanced safety and obstruction-detection technology for more peace of mind.
Adjustable speed on tip-up doors.
Compatible with Photon SMART wireless beams – easier and more cost-effective than ever before to fit safety beams.
The ultimate in flexibility with programmable IOs.
App-based management of remote controls.
Industry-leading security features including tamper detection and intelligent door status monitoring.

Specifications:
Input voltage- 230V AC +/-10% @ 50/60Hz
Motor voltage- 24V DC
Motor power supply rated- 80W DC
Battery supply- 2 x 3.4Ah 12V DC
Maximum door width up to 6.5 meters
Maximum door area up to 12 Square meters
Maximum push/pull force- 40kgf
Maximum lifting capacity- 1000N
Operations in standby mode: Up to 90 dependent on door size, weight, height and duration of power failure / condition of batteries Up to 90 dependent on door size, weight, height and duration of power failure / condition of batteries
Maximum operator travel speed up to 9m/min
Door travel adjustment- Physical end-stops (Automatic limit set)
Safety obstruction force system Built-in menu Built-in menu
Light LED - 2W
Autoclose - Menu Selectable
Infrared safety beams- Menu Selectable (Optional but recommended)
Onboard receiver type- Code-hopping single channel
Receiver code storage capacity- 20x 4-Button Transmitters
Receiver frequency- 433.92Mhz
Degree of protection- IPX0 (For interior use only)

1. Can operate off a solar supply, consult Centurion Systems for assistance
2. Can increase battery capacity for longer standby times
3. Speed varies with load
