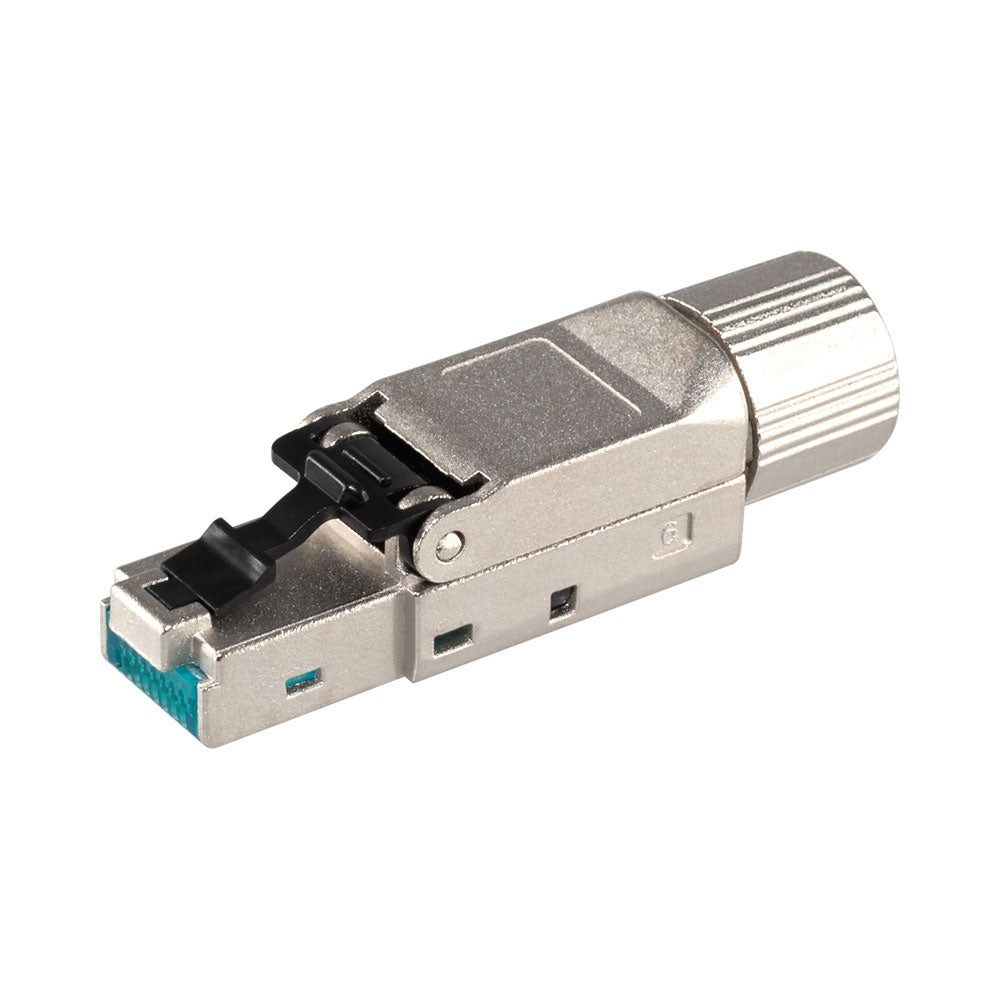

CAT6A SHIELDED TOOLESS RJ45 PLUG

FEATURES • CAT6A Shielded Toolless RJ45 Plug - Meets CAT6A performance requirements for 10-Gigabit Ethernet applications • Up to 550MHz Bandwidth - Supports high-speed data transmission for demanding network environments • Toolless Termination Design - Enables fast easy installation without special tools • Zinc-Alloy Full Shielding - Reduces EMI and RFI interference for improved signal integrity • Integrated PCB Circuit Board - Delivers low attenuation loss and high return loss performance • Supports T568A and T568B Wiring - Clear colour labels simplify correct termination • Phosphor-Bronze IDC Contacts - Rated for over 250 terminations with corrosion resistance • Gold-Plated Contacts - 50μ gold plating supports up to 1500 mating cycles • Snap-Lock Protective Cap - Prevents excessive cable bending detachment and contact damage after termination • Accepts 24AWG Conductors - Suitable for solid network cable installations SPECIFICATIONS • Contact Resistance (Max.): 100mΩ • Insulation Resistance (Min.): 500MΩ • Return Loss (dB) 5.9dB • Dimensions (W × H × D): 53.5 × 14.8 × 14.1mm
