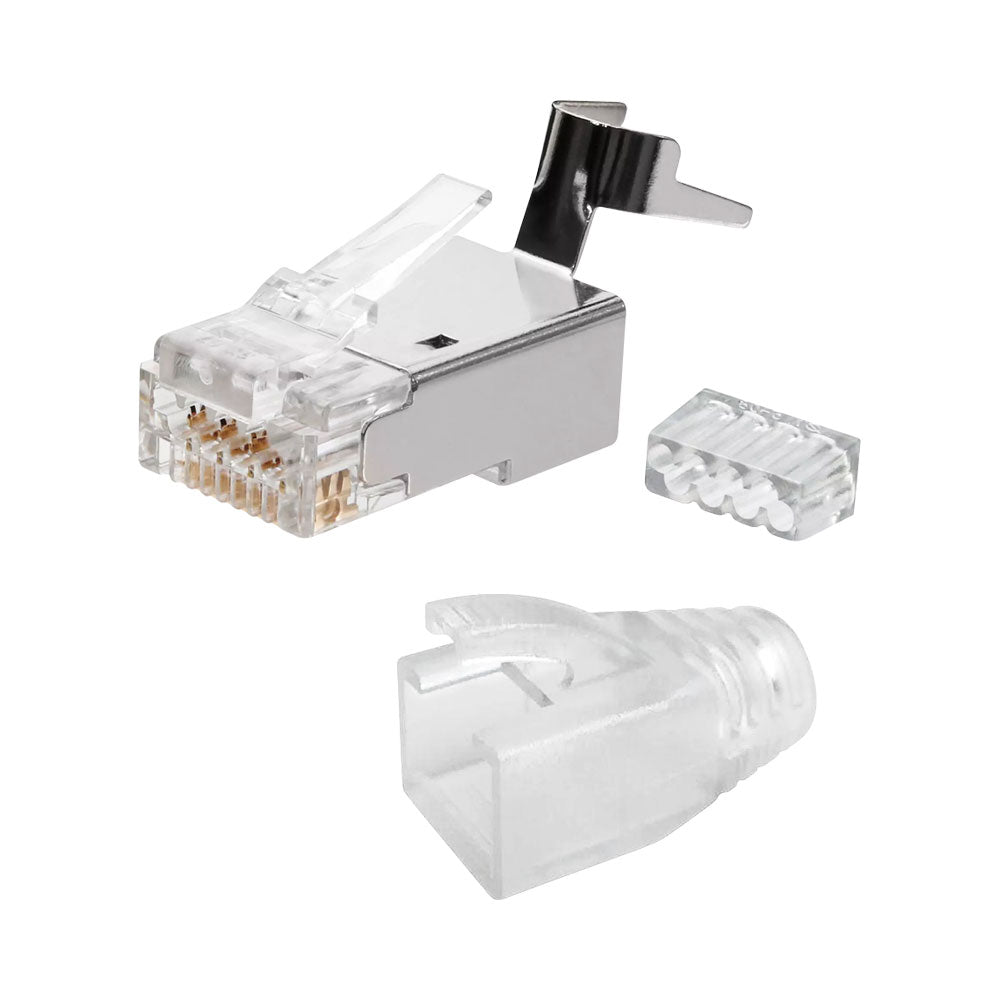

CAT6A / CAT7 STP EASY PASS PLUG & BOOT

POWER OVER ETHERNET (PoE) FEATURES • Maximum Power from PSE: 90W • Maximum Power at PD: 71.3W • Number of Energized Pair: 4× • IEEE 802.3bt: Type-4 Class-8 • IEC: 60512-99-002:2022 SPECIFICATIONS • Contact Pins (Conductors) Material: Copper-Alloy • Shielded: Copper-Alloy • Gold Plating Thickness: 50u" • Housing Material: Polycarbonate • Housing: UL 94-V2 • Mating Cycles: 1,200 Min. • Height of 8P8C Contact Pins: 6.02mm ±0.13mm • Storage Temperature: -40°C~70°C • Operating Temperature: <35°C • Relative Humidity: <70% RH • UL Applications: 250V AC Max. @2A • Dielectric Withstanding Voltage: 1000V AC in 60s • Insulation Resistance: 500MΩ • Contact Resistance: 20mΩ Max. • Two-Level Hole with Insert: 4+4 COMPLIANT WITH INTERNATIONAL STANDARDS • IEC 60512-99-002 • IEEE 802.3bt Type-4 Class-8 • ANSI/TIA-568.2-D • ISO/IEC 11801 • IEC 60603-7-51 • EN 50173-1 • EN 50173-2 • IEC 61935-2 • ANSI/TIA-1096-A (Formerly FCC Part 68.5 Subpart F)
