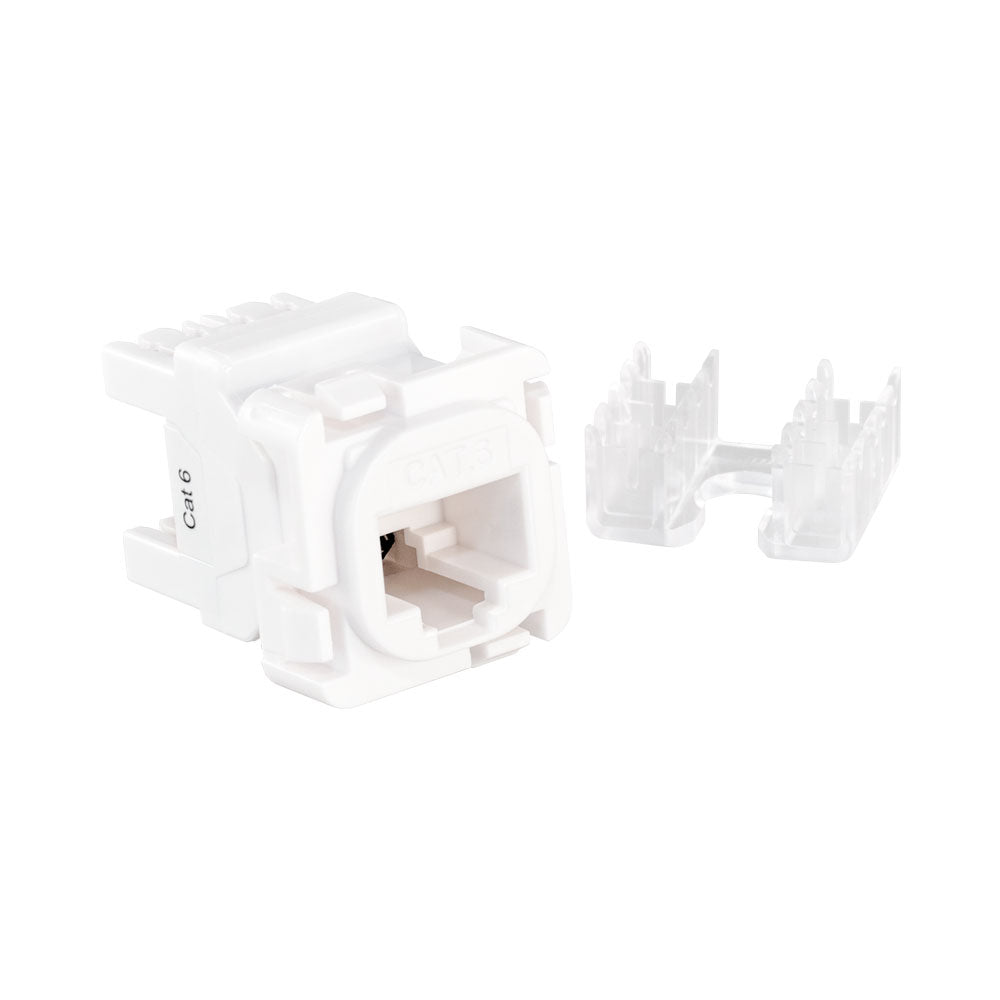

CAT6 UNSHIELDED KEYSTONE FOR S2000 (LKA109-C6U)

FEATURES • Available in CAT6: T568A/B Wiring, Meets or Exceeds TIA/EIA CAT6 Requirements • Housing: High-Temperature Thermoplastic • Compact Jack Design: 8× Positions and 8× Conductors • Contact: Phosphor Bronze or Phosphor Bronze with 6~50μ Gold Plating • Cable Compatibility: Accepts 22~26 AWG Solid Cable with 0.4~0.6mm Insulation Diameter • Easy Termination: Low Attenuation Loss and High Return Loss • High Reliability and Superior Performance SPECIFICATIONS • Contact Resistance (Max.): 100mΩ • Insulation Resistance (Min.): 500MΩ • Return Loss (dB): 5.2dB
