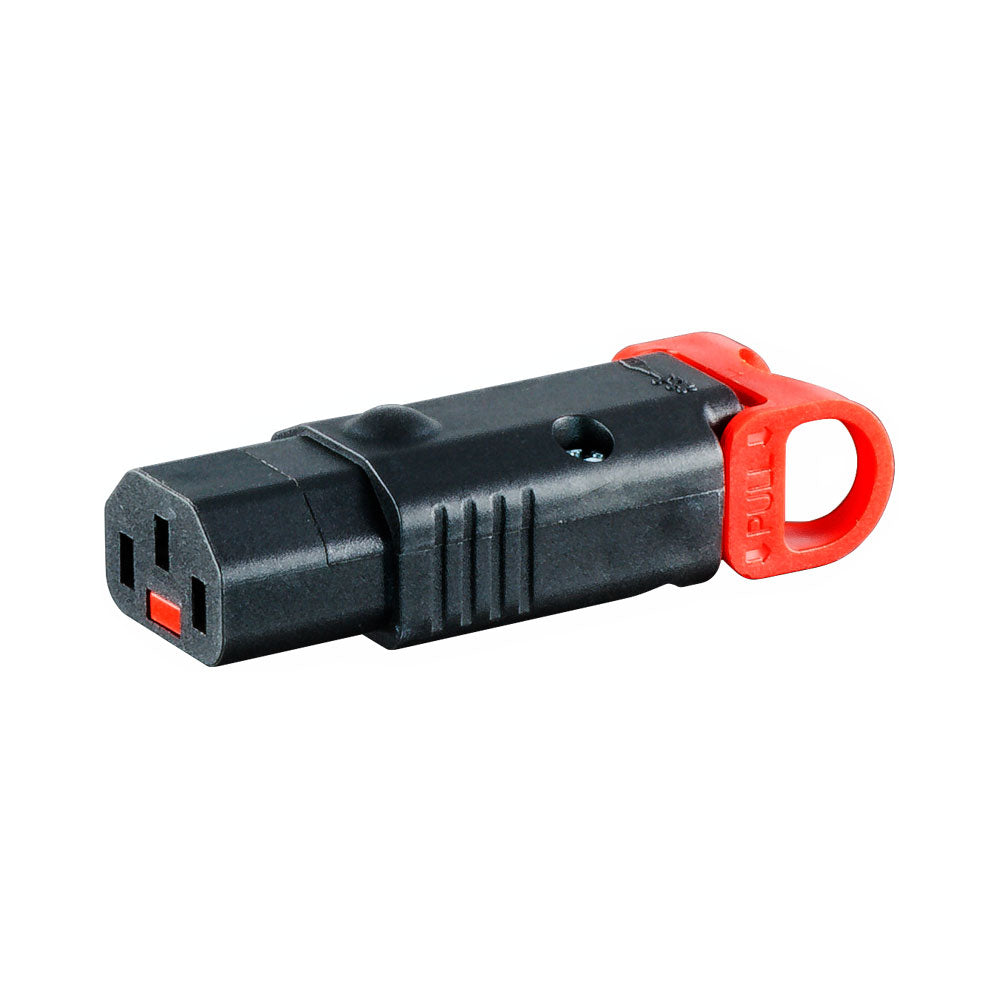

C13F REWIREABLE LOCKABLE IEC + LSZH

FEATURES • Locking C13 IEC Connector - Prevents accidental power loss with >100N retention force • Rewireable Design - Flexible installation and easy field termination • Fits Standard C14 Inlets - Universal compatibility • Anti-Vibration Construction - Ideal for racks, cabinets and mobile equipment • Easy-Pull Lock Release Handle - Quick, controlled disconnection • LSZH Housing - Low smoke, zero halogen for safer installations • Cold-Condition Ready - Suitable for low-temperature environments SPECIFICATIONS Electrical Ratings: 10A 250V Mechanical and Electrical • Terminal Capacity: 3-Core Cable up to 1.5mm² • Max. Cable Diameter: 8mm • Dielectric Strength: 1.5kV Max. • Withdrawal Force: >100N • Protection Class: Class I (IEC EN 61140) • Flammability Rating: UL94 V-0 Equivalent Materials • Housing and Chassis: Nylon PA66, LSZH (Black) • Lock Lever and Handle: Polycarbonate (Red Handle) • Terminals: Brass • Screws: Steel, Nickel-Plated • Spring and Locking Blade: Spring Steel Dimensions • Overall Length: Approx. 75mm • Width: 30.1mm • Height: 46.9mm Compliance and Standards • IEC / EN 60320-1 • UL 60320-1 • CSA C22.2 • AS/NZS 60320.1
