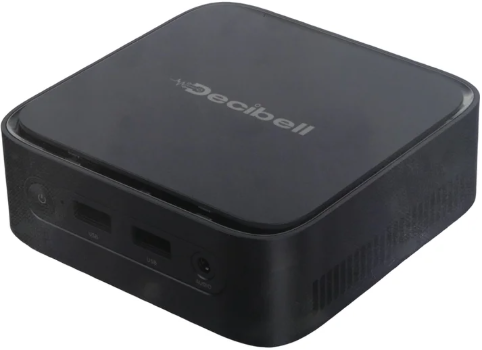

Decibell COA AMD Ryzen 3 Professional Mini PC

Model AMD Ryzen 3 PRO 3300U manufacturing process 12 nm core 4 cores, 4 threads cache L2: 2MB L3: 4MB Maximum speed 3.5 GHz power wastage 15 W Radeon Vega 8 Graphics Model DDR4 SO-DIMM*1 speed Up to 2666 MT/s Capacity 8GB Up to 16GB SSD Capacity 256GB SSD Up to 2TB SSD Type M.2_M_key_x2 2280 SATA&Nvme *1 2.5 inch HHD NO TF card NO BIOS Support Real-time clock, timed power-on BIOS Support Support the automatic power on function after power-on BIOS Support Support UEFI diskless boot CPU Integrated TPM TPM 2.0 is supported video output The system supports triple-screen display via HDMI*1 + DP*1 status indicator Power-on white light,Power off lights off,Sleep Red Light Model Onboard (wifi5/6) protocols IEEE 802.11 a, b/g, n, ac,ax Model usb protocols Support Bluetooth4.2/5.2 built-in NO built-in NO LAN1 10M/100M/1000M self-adaptive LAN2 NO Rear USB2.0 USB2.0 Type-A*2 480Mbps Front USB3.0 USB3.0 Type-A*2 5Gbps video output HDMI 2.0 4096 * 2160@30Hz *1 audio and video output DP 1.4 4096 * 2160@60Hz *1 video output NO serial port NO Gigabit Ethernet * 1 screen interface NO Backlight Voltage NO Front type_c NO Rear type_c NO Power Button * 1 Power Supply Input DC Jack *1 5.5/2.1mm 4pin power input NO Audio-out NO Audio-in NO Audio-in/out 3.5mm Phone Jack*1 (2-in-1) MIC NO speaker output NO serial output NO serial output NO FPC Antenna 1 WiFi 2.4+5G+BT *1 FPC Antenna 2 WIFI 5.0 micro SIM NO Desktop/Plug-in Input: 100~240V, 50/60Hz, output: 12V/3A, DC Jack 5.5*2.1mm
