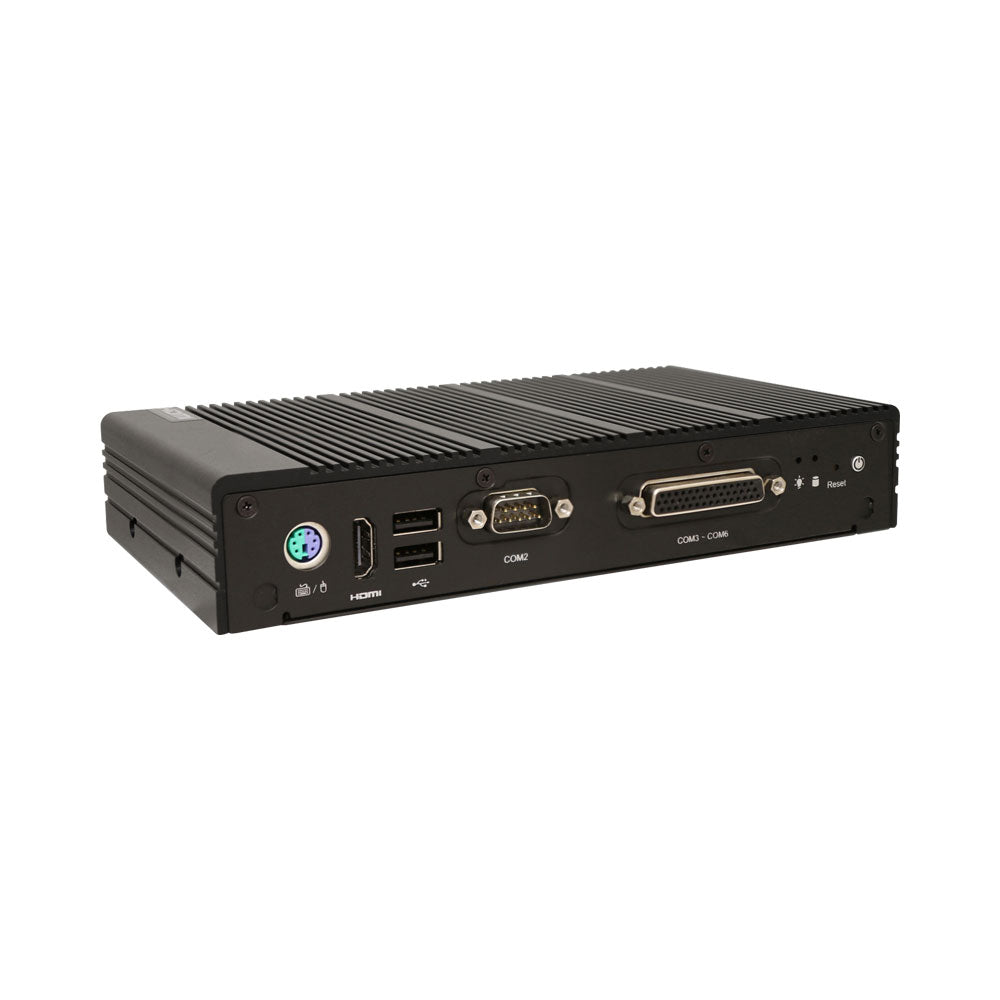

AOPEN INDUSTRIAL PLAYER FS IE-SK500 I5-6200 128G 4

FEATURES • i5 6th Generation Intel Core CPU • High-Input Voltage • Supports 6 COM Ports • PS/2 Connector SPECIFICATIONS • Dimensions: W × H × D: 209.8 × 38.2 × 120mm MB: 185 × 115mm • Weight: Net Weight: 1.62kg Gross Weight: 1.94kg • Mechanical: Housing: Aluminium + SECC Mounting: L-Type Wallmount • Supports OS: Windows 10 IoT • Certification: Complete Certification for EMC Safety UL, CB, CCC, CE, FCC, RoHS • Processor: CPU: i5 6th Generation Intel Core L2 Cache: 3MB BIOS: AMI UEFI • Memory Onboard: DDR4 2133Mhz up to 8GB • Graphics: Intel Core SoC Intel HD Graphics 520 • Expansion Slots: 1× M.2 2230 for Wi-Fi (Built-In) 1× M.2 2242 for SATA SSD 1× Mini PCIe Slot for mSATA • Ethernet: Chip: 2× Intel I211AT Speed: 10/100/1000Mbps • Storage: 2.5" SSD 1× mSATA 1× • I/O Interface: DC Jack 1× (12~28V) Graphics Ports 2× (1× VGA and 1× HDMI 1.4) USB2.0 Port 2× USB3.0 Port 4× RJ45 LAN 2× Audio: 1× (Line-out) Antenna Holes 4× COM Ports: 6× DB9 (1× RS232, 1× RS232/422/485 Switch by BIOS, 4× RS232/48 Switch by BIOS) Other: 1× PS/2 KB/MS, 1× Power Button, 1× Reset Button • Power Requirement: Input Voltage 12~28V DC Power Adapter: AC~DC 12V 5A 60W • Power Consumption: Typical 30W Max. 35W • Operating Temperature: 0~50°C • Storage Temperature: -30~70°C • Relative Humidity: 90% RH (50°C Non-Condensing) • Vibration During Operation: 2.20G / Random 10min per Axis in All 3 Axes • Shock During Operation: Half Sine, 40G, 2~3ms Duration • EMC: CE/FCC Class B
