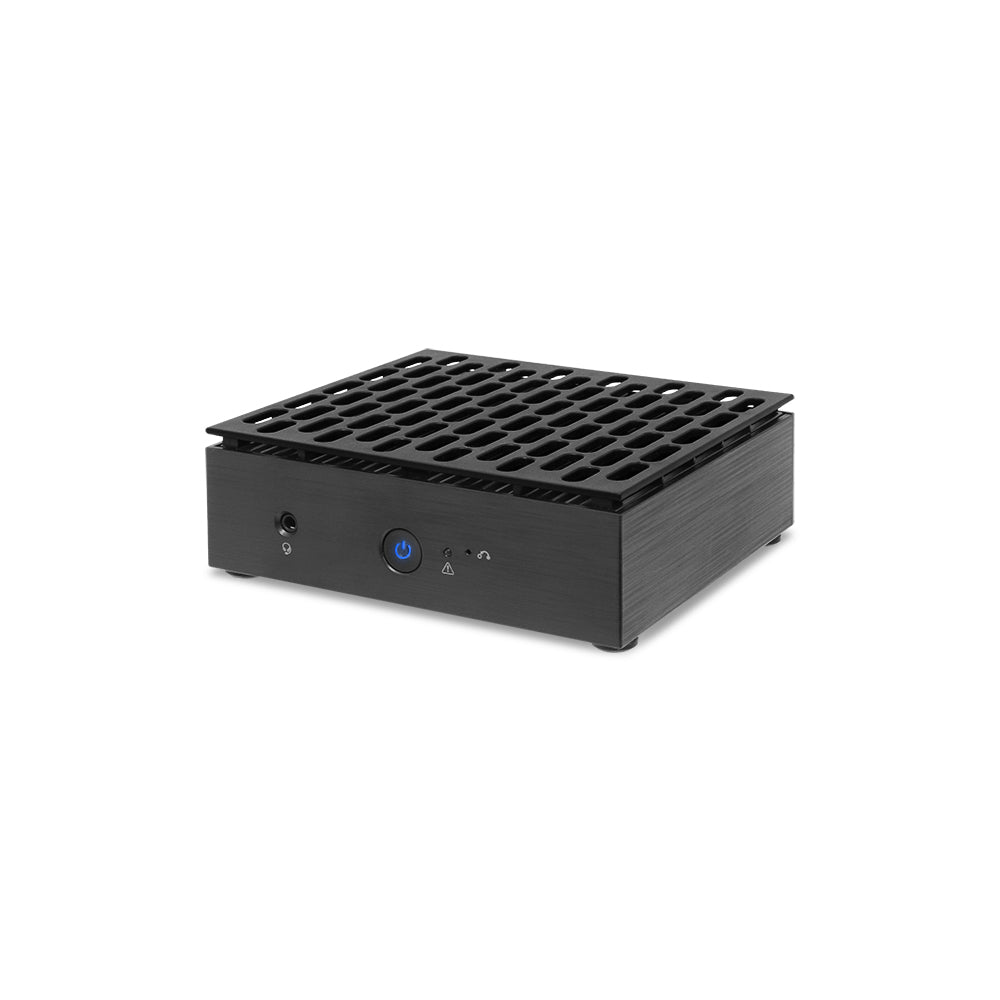

AOPEN DE3650S ACE MINI COMPACT PC WITH INTEL CELERON N6210 1.2GHZ CPU, 4GB DDR4 RAM AND 64GB EMMC

FEATURES • Intel Celeron N6210 Processor - Efficient dual-core performance for embedded and commercial applications • Intel UHD Graphics - Smooth visual performance for signage and display solutions • Fanless Design - Silent operation with reduced dust build-up and lower maintenance requirements • Dual Display Output - HDMI and mini DisplayPort for flexible multi-screen setups • Multi-OS Support - Compatible with Windows, Chrome OS Flex and Linux environments • Compact and Space-Saving - Ultra-small 0.45L form factor ideal for tight installations • Onboard Memory and Storage - 4GB RAM and 64GB eMMC for reliable everyday performance • Expandable Storage - Supports M.2 2280 SSD for additional storage flexibility • TPM 2.0 Security - Enhanced hardware-based security for business environments • Industrial-Grade Reliability - Designed for 24/7 operation with high durability SPECIFICATIONS CPU AND GRAPHICS • CPU: Intel Celeron N6210 1.20GHz (Dual Core) • Graphics: Intel UHD Graphics for 10th Gen Processors MEMORY • Onboard Memory: 4GB DDR4 • Expansion Slot: 1× DDR4 SO-DIMM • Channels: Dual Channel • Data Rate: 2666 / 3200MHz • Max. Memory: up to 20GB STORAGE • Onboard Storage: 64GB eMMC • Expansion: 1× M.2 2280 (M-Key) SATA, 1× M.2 2230 AUDIO • Audio Chipset: Realtek HD Audio Codec ALC897 • Channel: Stereo NETWORK • LAN: 1× Gigabit Ethernet (10/100/1000Mbps) FRONT PANEL I/O • Power Button: 1× • Audio: 1× Audio Combo Jack • Other: 1× BIOS Recovery REAR PANEL I/O • HDMI: 1× HDMI 2.0 • DisplayPort: 1× mini DisplayPort • USB Ports: 4× USB (2× USB2.0, 2× USB3.1) • LAN: 1× RJ45 • Power Input: 1× DC Input (12~24V) CONTROL AND SECURITY • Watchdog Timer: 1~255 sec/min • TPM: 2.0 POWER • Power Supply: 40W Adapter • Input Voltage: AC 100~240V ENVIRONMENT • Operating Temperature: 0~35°C • Storage Temperature: -30~60°C • Humidity: 90% RH (Non-Condensing) • MTBF: 50,000 hours PHYSICAL • Dimensions: 125 × 35 × 110mm • Volume: 0.45L • Colour: Black COMPATIBILITY • OS Support: Windows, Chrome OS Flex, Linux
