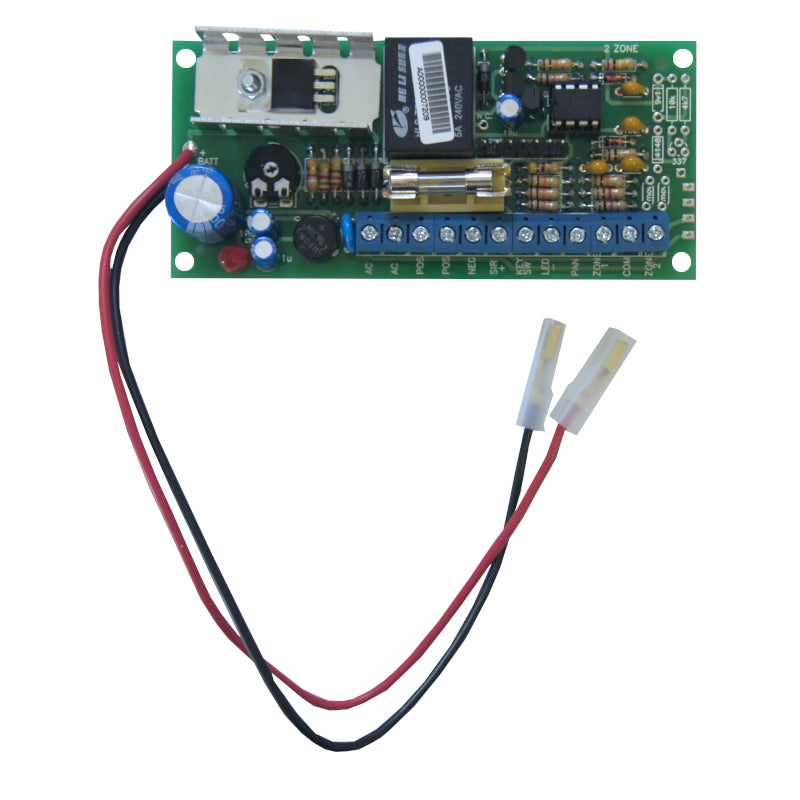

2-Zone Wired Alarm PCB used as a complete alarm controller for small home, caravan or outbuilding.

Specifications:
16v AC input, 12v DC operation.
Built in 1A battery charging circuit.
12v DC fused output.
Key switch input for arm/disarm.
Status LED output.
2 zone inputs, 1 panic input, 1 minute timed siren output.
Physical size: 120mm x 60mm

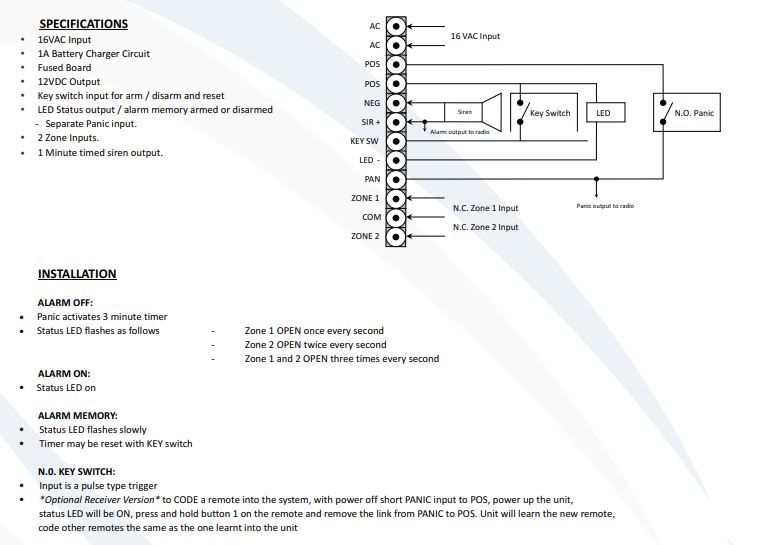

Wiring Diagram:
Keysw is + pulse type trigger
Panic is + pulse trigger
Zone 1 and 2 are N.C. inputs
LED- is for external status LED,
connect + of LED to 12v DC+

Installation:
Connect 16v AC, 12v DC to equipment and battery leads.
Pulse ARM keysw input, if zones are set the system will arm, status LED on.
Status LED will flash indicating which zone is open, ie 1 or 2 flashes.
Zones may be bypassed using the toggle switches.
Trigger a zone and siren will sound for 1 minute or until reset via the ARM keysw.
