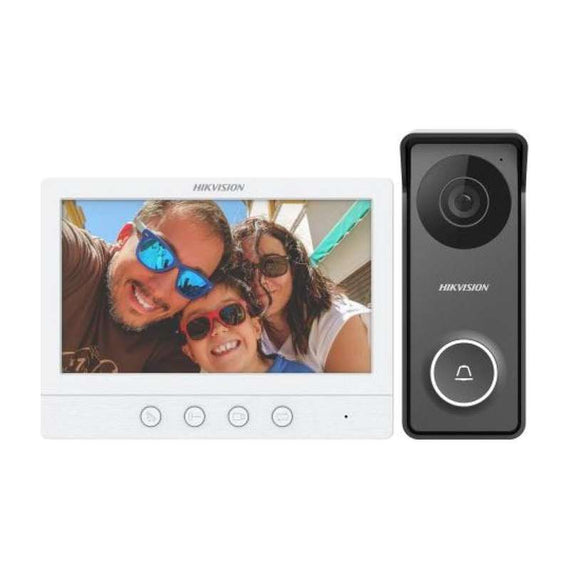

Hikvision 4-wire Hybrid HD analog intercom kit 720p HD video 3m IR 7" indoor station HikConnect support 12VDC

Name: Hikvision 4-wire Hybrid HD analog intercom kit 720p HD video 3m IR 7" indoor station HikConnect support 12VDC
Brand: Sensor Security
SKU: DS-KIS313-P
Price: 3705.00 ZAR
Availability: InStock

R 3,705.00 ZAR

Sale Sold out

Shipping calculated at checkout.

Quantity

Master Card
Visa Card
Visa Electron

Maestro Card
Instant Eft
MobiCred

SKU:DS-KIS313-P

Hikvision 4-wire Hybrid HD analog intercom kit 720p HD video 3m IR 7" indoor station HikConnect support 12VDC

Hik-Connect mobile control
HD TVI video quality
7 inch touch screen
Plug & Play
- Door station/Video parameters
- Supplement light IR light, up to 3 m
- Resolution Stream resolution:1280 * 720@60fps
- FOV Horizontal: 117°, Vertical: 70°, Diagonal: 141°
- Door station/Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio output1 built-in loudspeaker
- Door station/Capacity parameters
- Linked indoor station capacity3
- Sub door station capacity1
- Card capacity/
- Door station/Device interfaces
- Lock control1 relay, max 30 V 1 A
- Power supply input12 VDC
- Debugging port1
- Four-Wire interface1
- Door station/General
- Button1 physical button(s)
- Indicator/
- Power supply12 VDC
- Power consumption≤ 4 W
- Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity10% to 90% (no-condensing)
- Application environment Outdoor
- Dimension (W × H × D)55 mm × 145 mm × 24 mm (2.17" × 5.71" × 0.94")
- Installation Surface mounting
- Protective levelIP65, IK08
- Material Aluminum alloy and Plastic
- Weight Without package: 200 g (0.44 lb)
- Indoor station/System parameters
- Operation system Embedded Linux operation system
- RAM128 MB
- ROM32 MB
- Processor Embedded high performance processor
- Indoor station/Display parameters
- Type Colorful TFT
- Resolution1024 × 600
- Viewing Angle Horizontal 160°, vertical 130°
- Contrast700 (Typ)
- Luminance250 cd/m² （Typ）
- Operating method Capacitive touch screen
- Screen size7-inch
- Indoor station/Audio parameters
- Audio input1 built-in omnidirectional microphone
- Audio output1 built-in loudspeaker
- Audio compression bitrate64 Kps
- Audio compression standardG.711U, G.711A
- Audio quality Noise suppression and echo cancellation
- Indoor station/Capacity parameters
- Linked network camera capacity/
- Linked indoor extensions capacity2
- Linked door phone capacity2
- Linked analog camera1
- Indoor station/Network parameters
- Wi-Fi Wi-Fi 802.11 b/g/n
- Indoor station/Device interfaces
- Network interface/
- RS-485/
- Alarm input2
- Alarm output/
- Power supply input12 VDC
- TF card Support TF card, up to 128 G
- Debugging port2
- Four-Wire interface4
- Relay/
- Indoor station/General
- Button0 physical button
- Power supply12 VDC
- Power consumption≤ 5 W
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (no-condensing)
- Dimension (W × H × D)175 mm × 113.5 mm × 18.1 mm (6.89" × 4.47" × 0.71")
- Installation Surface mounting
- Application environment Indoor
- Weight Without package: 260 g (0.573 lb)
- Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese (Brazil), Spanish, Hebrew, Romanian, Turkish, Estonian, Danish, Swedish, Norwegian, Finnish, Vietnamese, Croatian, Slovenian, Serbian, Arabic, Portuguese (Portugal), Lithuanian, Uzbek, Kazakh, Mongolian, Ukrainian, Latvian, Traditional Chinese
