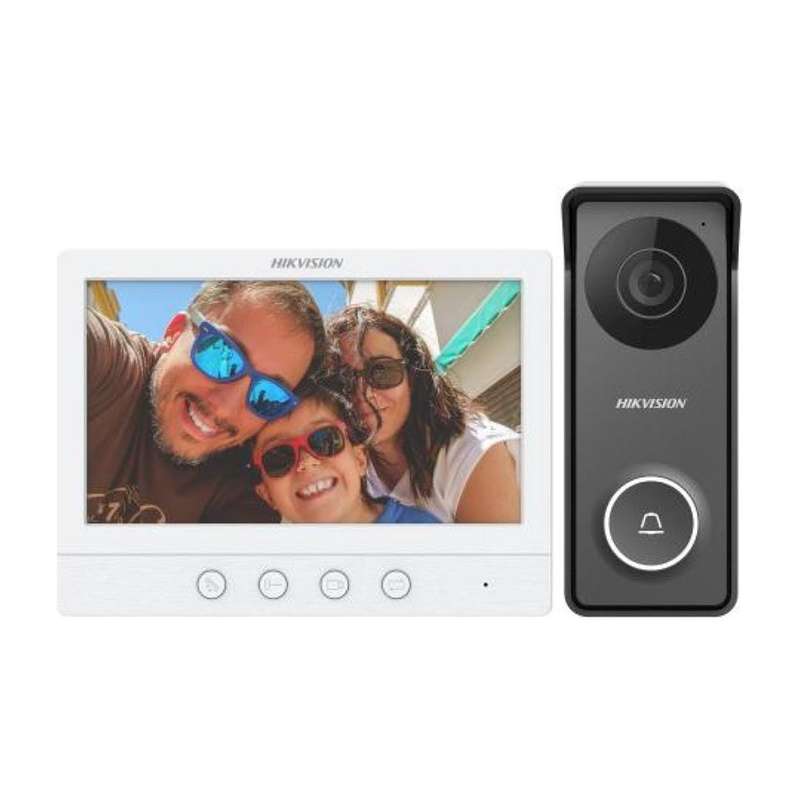

• Hikvision 4-wire HD analog intercom kit 720p HD video 3m IR 7" indoor station 12VDC
1 2

Hikvision 4-wire HD analog intercom kit 720p HD video 3m IR 7" indoor station 12VDC

Hikvision 4-wire HD analog intercom kit 720p HD video 3m IR 7" indoor station 12VDC

R 2,395.00 ZAR
R 2,395.00 ZAR
Sale Sold out
Shipping calculated at checkout.
  • Master Card
  • Visa Card
  • Visa Electron
  • Maestro cardMaestro Card
  • Instant Eft Instant Eft
  • MobiCredMobiCred

DS-KIS213

Hikvision 4-wire HD analog intercom kit 720p HD video 3m IR 7" indoor station 12VDC

  • HD TVI video quality
  • 7-inch LCD screen
  • Plug & Play
  • Water and dust resistant (IP65)
    • Door station/Video parameters
    • Supplement light IR light, up to 3 m
    • Resolution Stream resolution: 1280 x 720@60fps
    • FOV Horizontal: 117°, Vertical: 70°, Diagonal: 141°
    • Door station/Audio parameters
    • Audio input Built-in omnidirectional microphone (≤50 cm)
    • Audio output Built-in loudspeaker (30 cm/76 dB, 50 cm/72 dB)
    • Door station/Device interfaces
    • Lock control1 relay, max 30 V 1 A
    • Debugging port1
    • Four-wire1 four-wire interface
    • Door station/General
    • Button1 physical button(s)
    • Power supply12 VDC
    • Power consumption Max. 4 W
    • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
    • Working humidity10% to 90%
    • Dimensions145 mm × 55 mm × 24 mm (5.71" × 2.17" × 0.94")
    • Application environment Outdoor
    • Installation Surface mounting
    • Protective levelIP65, IK08
    • Material Metal
    • Indoor station/Display parameters
    • Operation method Physical button
    • Type7-inch colorful TFT
    • Resolution1024 x 600
    • Indoor station/Audio parameters
    • Audio input Built-in omnidirectional microphone (≤50 cm)
    • Audio output Built-in loudspeaker (30 cm/76 dB, 50 cm/72 dB)
    • Indoor station/Capacity parameters
    • Linked indoor extensions capacity2
    • Linked door phone capacity2
    • Linked analog camera1
    • Indoor station/Device interfaces
    • Power supply input12V DC
    • Debugging port1
    • Four-Wire interface4, 2 for indoor extensions, 2 for door phones
    • DIP switch1 Bit
    • BNC1
    • Indoor station/General
    • Button4 physical buttons
    • Power supply12 VDC
    • Power consumption≤4 W
    • Working temperature-10° C to + 55° C (14° F to 131° F)
    • Working humidity10% to 90%
    • Dimensions (W × H × D)178 mm x 132 mm x 19 mm (7.01" × 5.20" × 0.75")
    • Installation Surface mounting
    • Application environment Indoor
View full details
